Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
AISI316 - DIN 1.4401
Production: SF3212H - Pad - Welded
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

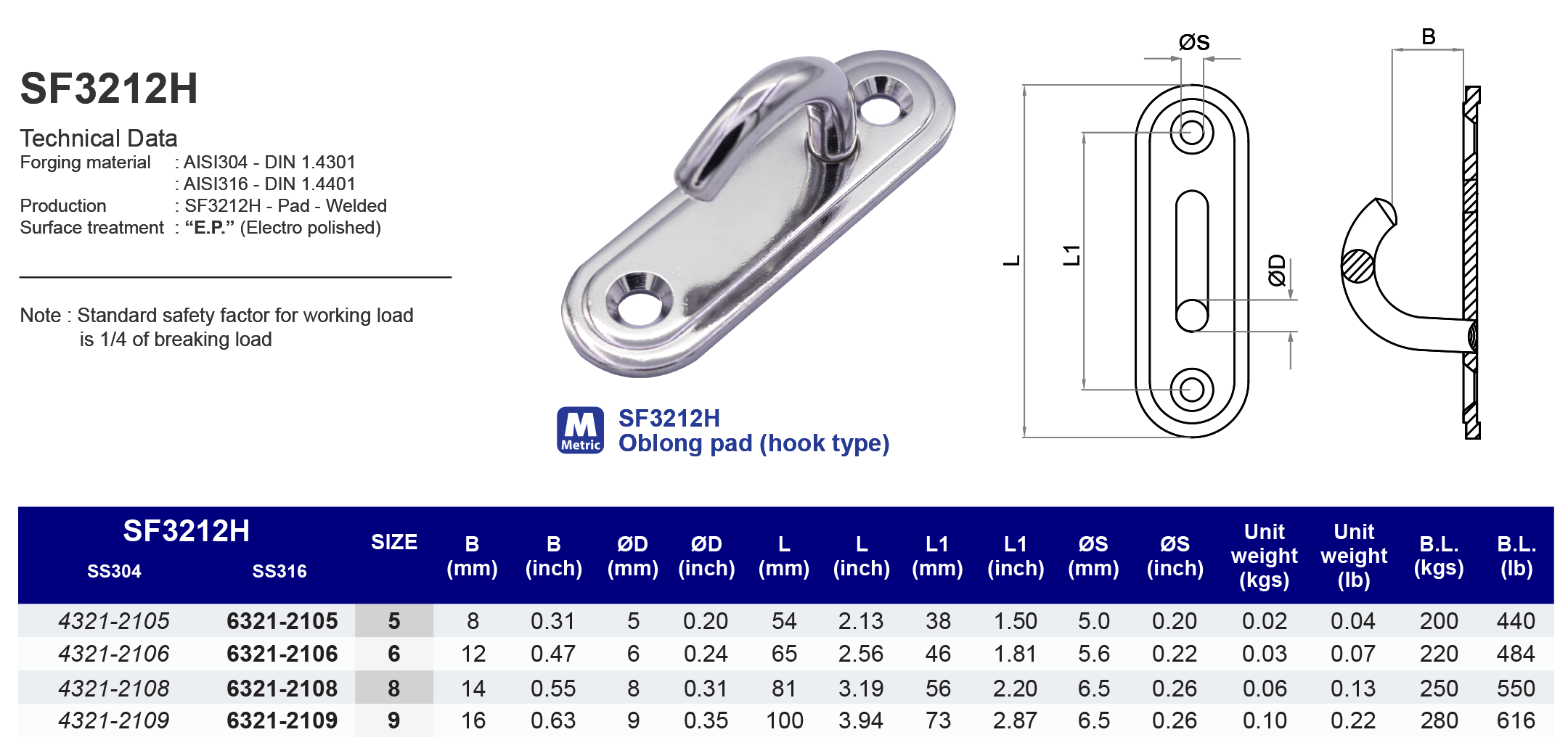

Model
SF3212H

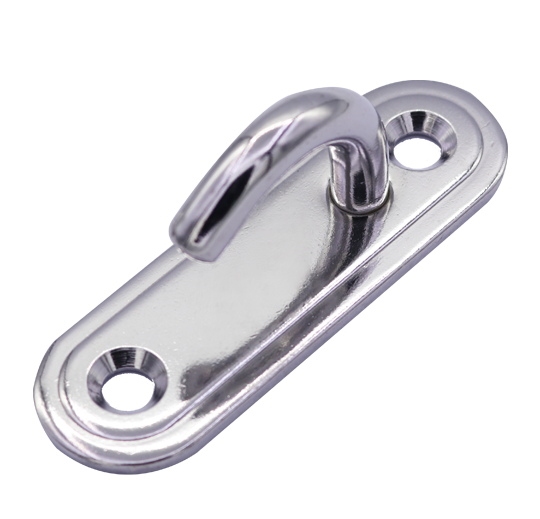

Oblong Pad - hook type
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | L1 (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43212105 | 5 | 8 | 5 | 54 | 38 | 5.0 | 0.02 | 200 |
| 43212106 | 6 | 12 | 6 | 65 | 46 | 5.6 | 0.03 | 220 |
| 43212108 | 8 | 14 | 8 | 81 | 56 | 6.5 | 0.06 | 250 |
| 43212109 | 9 | 16 | 9 | 100 | 73 | 6.5 | 0.10 | 280 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | L1 (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43212105 | 3/16" | 0.31 | 0.20 | 2.13 | 1.50 | 0.20 | 0.04 | 440 |
| 43212106 | 1/4" | 0.47 | 0.24 | 2.56 | 1.81 | 0.22 | 0.07 | 484 |
| 43212108 | 5/16" | 0.55 | 0.31 | 3.19 | 2.20 | 0.26 | 0.13 | 550 |
| 43212109 | 3/8" | 0.63 | 0.35 | 3.94 | 2.87 | 0.26 | 0.22 | 616 |
