Description

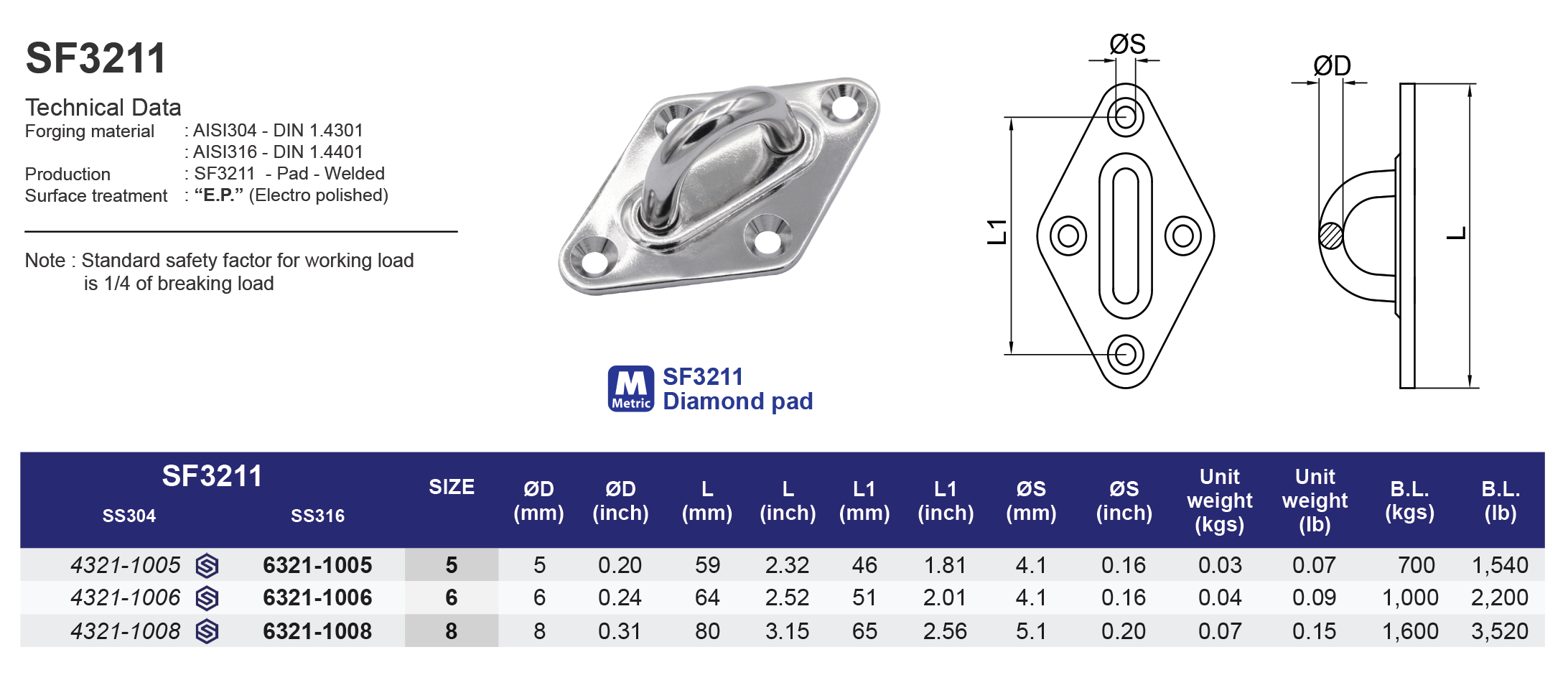

Technical Data:
Forging Material : AISI304 - DIN 1.4301
: AISI316 - DIN 1.4401
Production: SF3211 - Pad - Welded
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
Model
SF3221
Square Pad
316 ss
| SS316 | Size | H (mm) | L (mm) | L1 (mm) | T (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 63221154 | 15*42 | 12 | 42 | 15 | 3 | 0.02 |
| 63221174 | 17*42 | 12 | 42 | 17 | 3 | 0.03 |
| 63221194 | 19*42 | 12 | 42 | 19 | 3 | 0.03 |
| 63221234 | 23*42 | 12 | 42 | 23 | 3 | 0.03 |
| 63221305 | 30*50 | 14 | 50 | 30 | 4 | 0.06 |
| SS316 | Size | H (inch) | L (inch) | L1 (inch) | T (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 63221154 | 9/16" x 21/32" | 0.47 | 1.65 | 0.59 | 0.12 | 0.04 |
| 63221174 | 9/16" x 21/32" | 0.47 | 1.65 | 0.67 | 0.12 | 0.07 |
| 63221194 | 9/16" x 21/32" | 0.47 | 1.65 | 0.75 | 0.12 | 0.07 |
| 63221234 | 7/8" x 21/32" | 0.47 | 1.65 | 0.91 | 0.12 | 0.07 |
| 63221305 | 1-3/16" x 2" | 0.55 | 1.97 | 1.18 | 0.16 | 0.13 |
