Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301, AISI316 - DIN 1.4401
Production: SF3206 - Ring - Welded
Surface Treatment: “E.P.” (Electro polished)
Model
SF3206

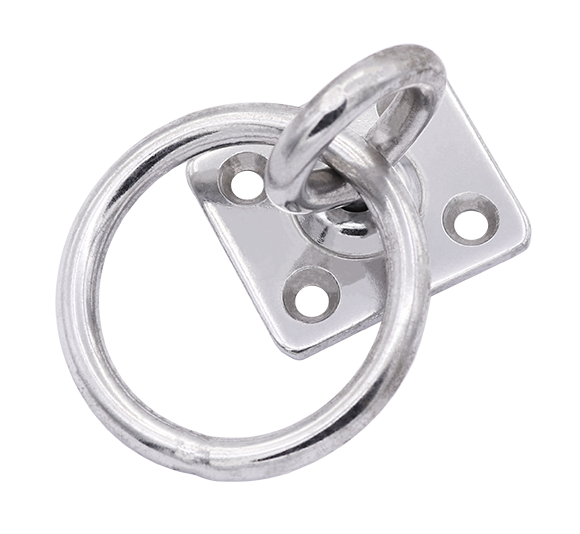

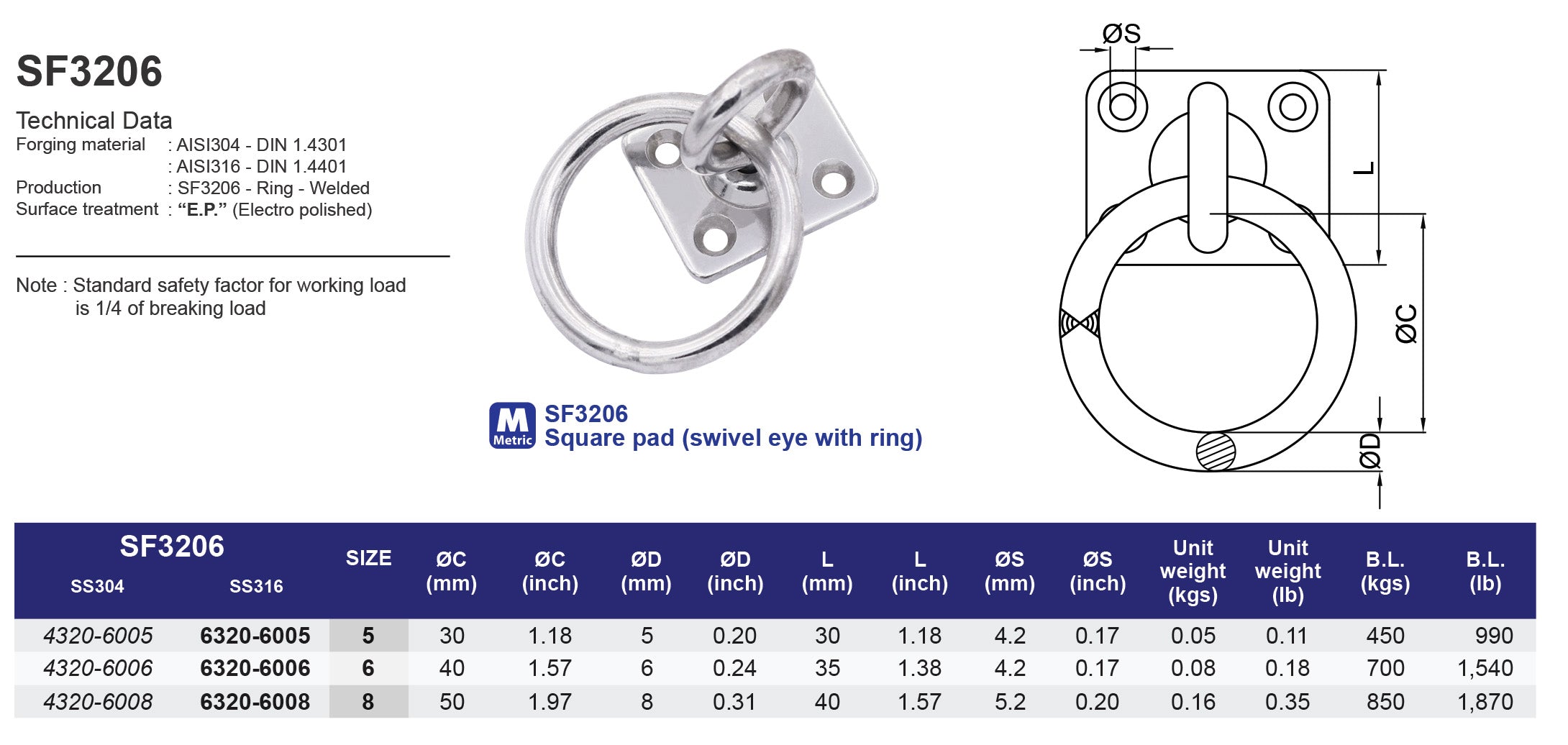

Square Pad (swivel eye with ring)
316 ss
| SS316 | Size | ØC (mm) | ØD (mm) | L (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63206005 | 5 | 30 | 5 | 35 | 4.2 | 0.05 | 450 |
| 63206006 | 6 | 40 | 6 | 40 | 4.2 | 0.08 | 700 |
| 63206008 | 8 | 50 | 8 | 50 | 5.2 | 0.16 | 850 |
| SS316 | Size | ØC (inch) | ØD (inch) | L (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63206005 | 3/16" | 1.18 | 0.20 | 1.38 | 0.17 | 0.11 | 990 |
| 63206006 | 1/4" | 1.57 | 0.24 | 1.57 | 0.17 | 0.18 | 1,540 |
| 63206008 | 5/16" | 1.97 | 0.31 | 1.97 | 0.20 | 0.35 | 1,870 |
