Description
Technical Data:
Forging Material:
AISI304 - DIN 1.4301
Production:
SF3205 - Pad - Welded
Surface Treatment:
Electro polished / Passivated

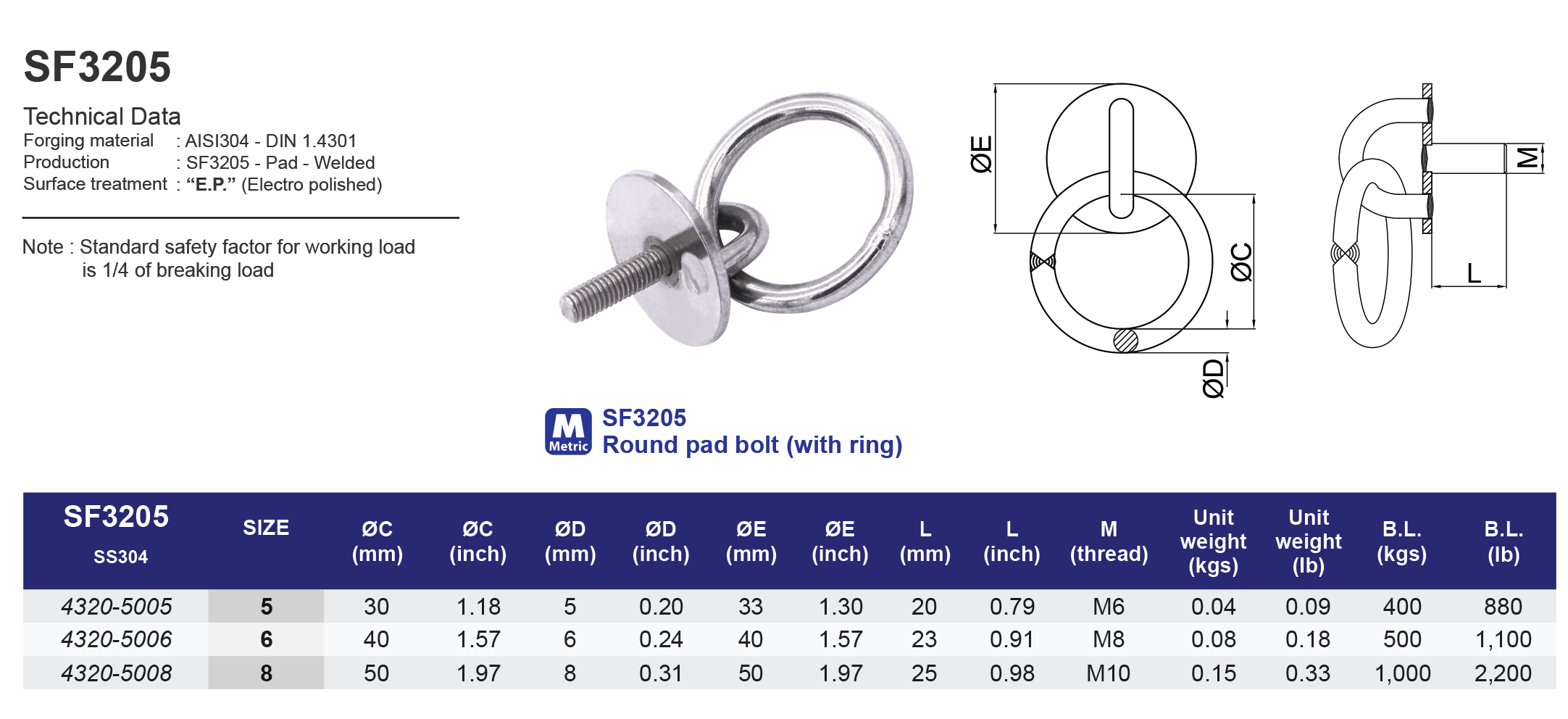

Model
SF3205

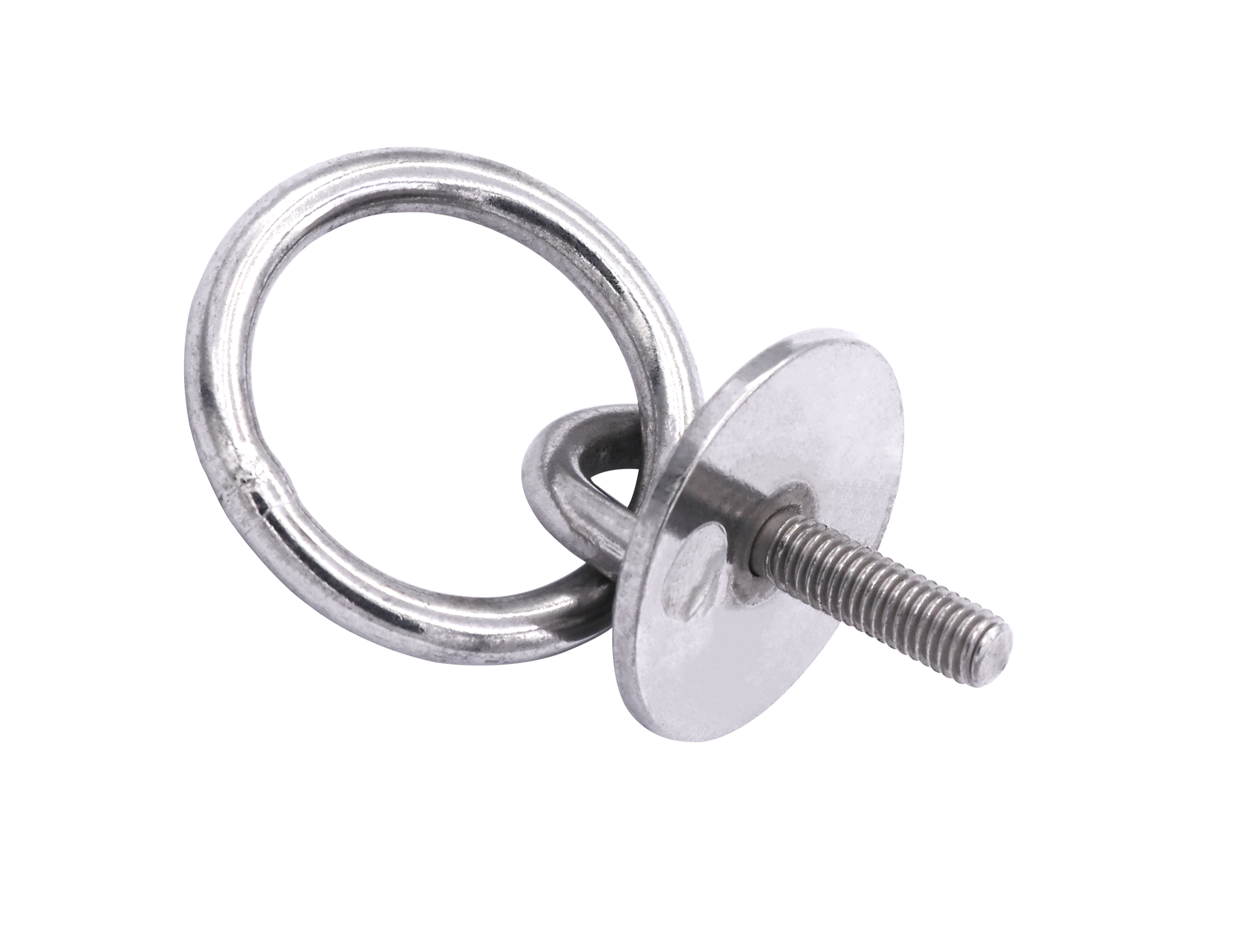

Round Pad Bolt (with ring)
304 ss
| SS304 | Size | ØC(mm) | ØD(mm) | ØE(mm) | L(mm) | M(thread) | Unit weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|---|
| 4320-5005 | 5 | 30 | 5 | 33 | 20 | M6 | 0.04 | 400 |
| 4320-5006 | 6 | 40 | 6 | 40 | 23 | M8 | 0.08 | 500 |
| 4320-5008 | 8 | 50 | 8 | 50 | 25 | M10 | 0.15 | 1,000 |
| SS304 | Size | ØC(inch) | ØD(inch) | ØE(inch) | L(inch) | M(thread) | Unit weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|---|
| 4320-5005 | 5 | 1.18 | 0.20 | 1.30 | 0.79 | M6 | 0.09 | 880 |
| 4320-5006 | 6 | 1.57 | 0.24 | 1.57 | 0.91 | M8 | 0.18 | 1,100 |
| 4320-5008 | 8 | 1.97 | 0.31 | 1.97 | 0.98 | M10 | 0.33 | 2,200 |
