Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
: AISI316 - DIN 1.4401
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load

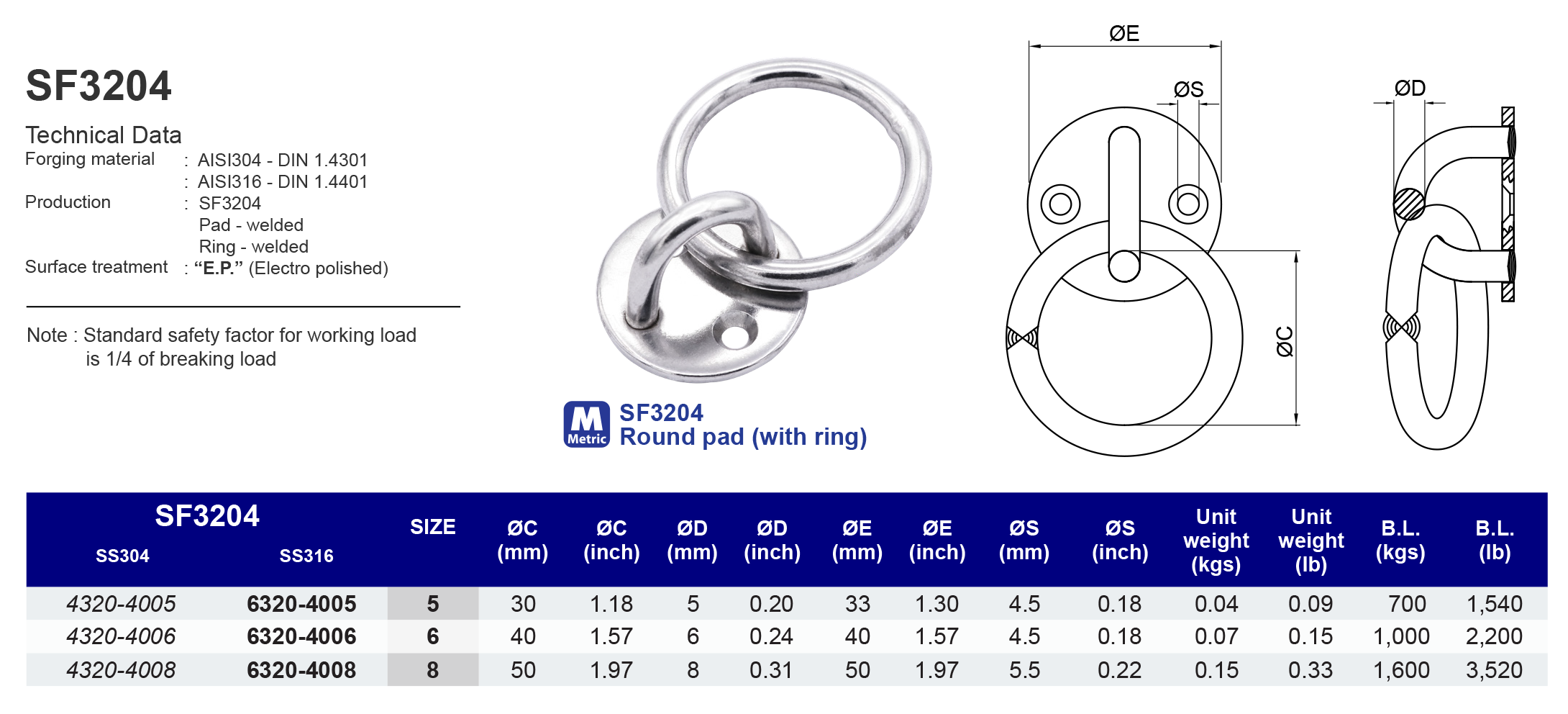

Model
SF3204

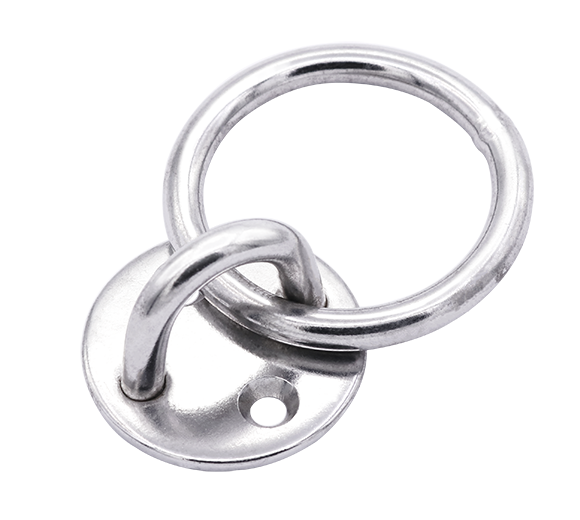

Round Pad (with ring)
316 ss
| SS316 | Size | ØC (mm) | ØD (mm) | ØE (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63204005 | 5 | 30 | 5 | 33 | 4.5 | 0.04 | 700 |
| 63204006 | 6 | 40 | 6 | 40 | 4.5 | 0.07 | 1,000 |
| 63204008 | 8 | 50 | 8 | 50 | 5.5 | 0.15 | 1,600 |
| SS316 | Size | ØC (inch) | ØD (inch) | ØE (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63204005 | 3/16" | 1.18 | 0.20 | 1.30 | 0.18 | 0.09 | 1,540 |
| 63204006 | 1/4" | 1.57 | 0.24 | 1.57 | 0.18 | 0.15 | 2,200 |
| 63204008 | 5/16" | 1.97 | 0.31 | 1.97 | 0.22 | 0.33 | 3,520 |
