Description

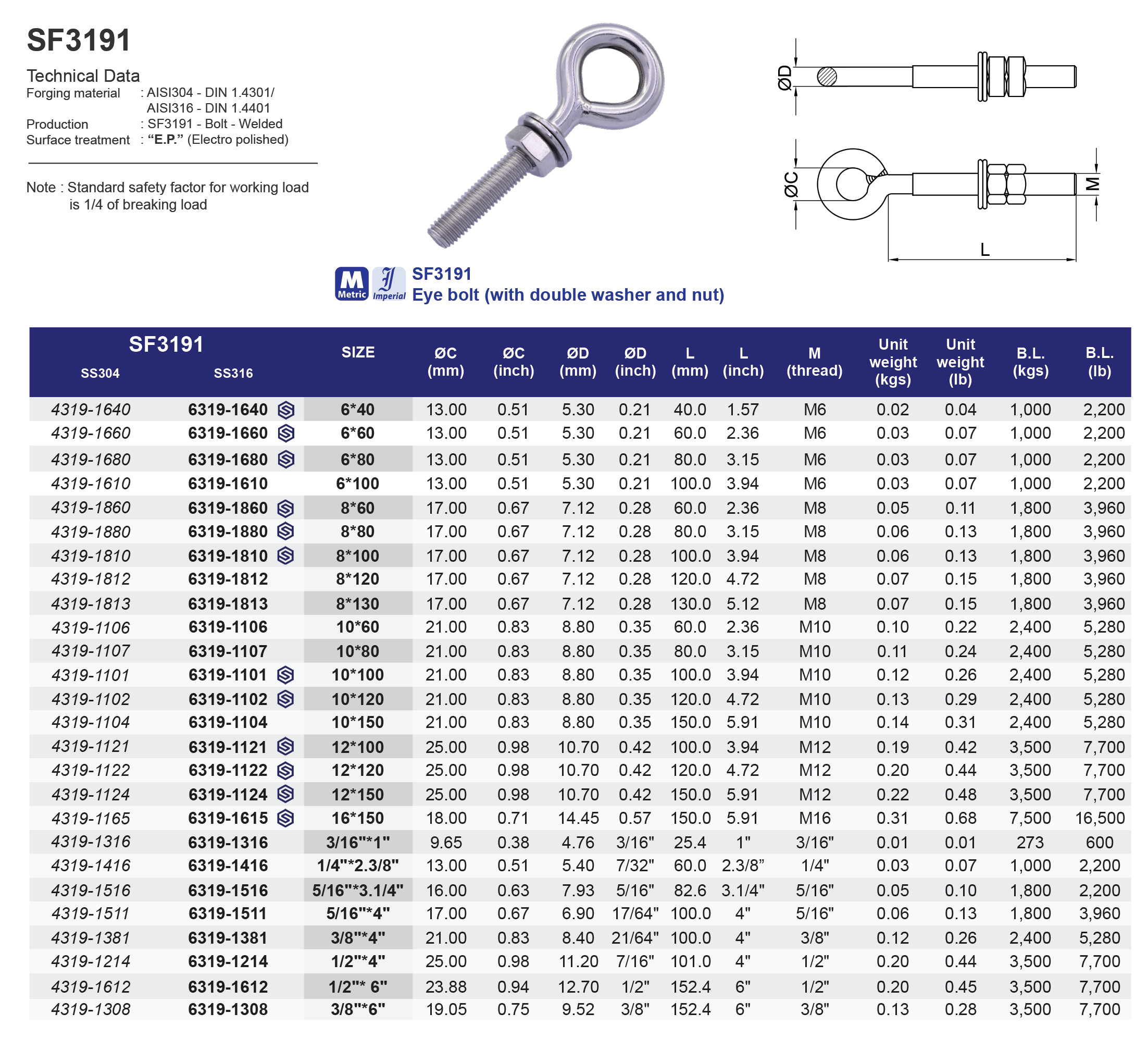

Technical Data:
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: SF3191 - Bolt - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF3191

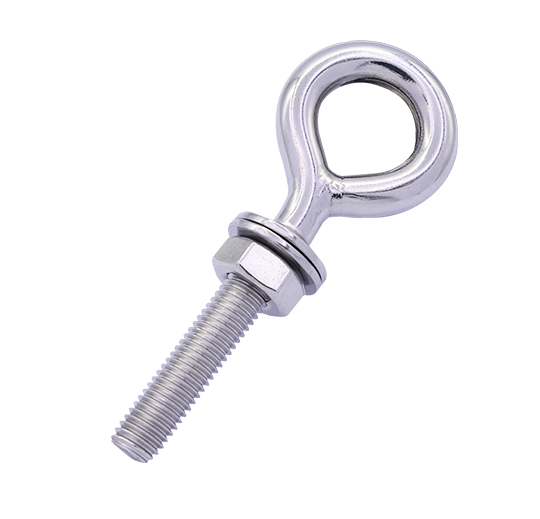

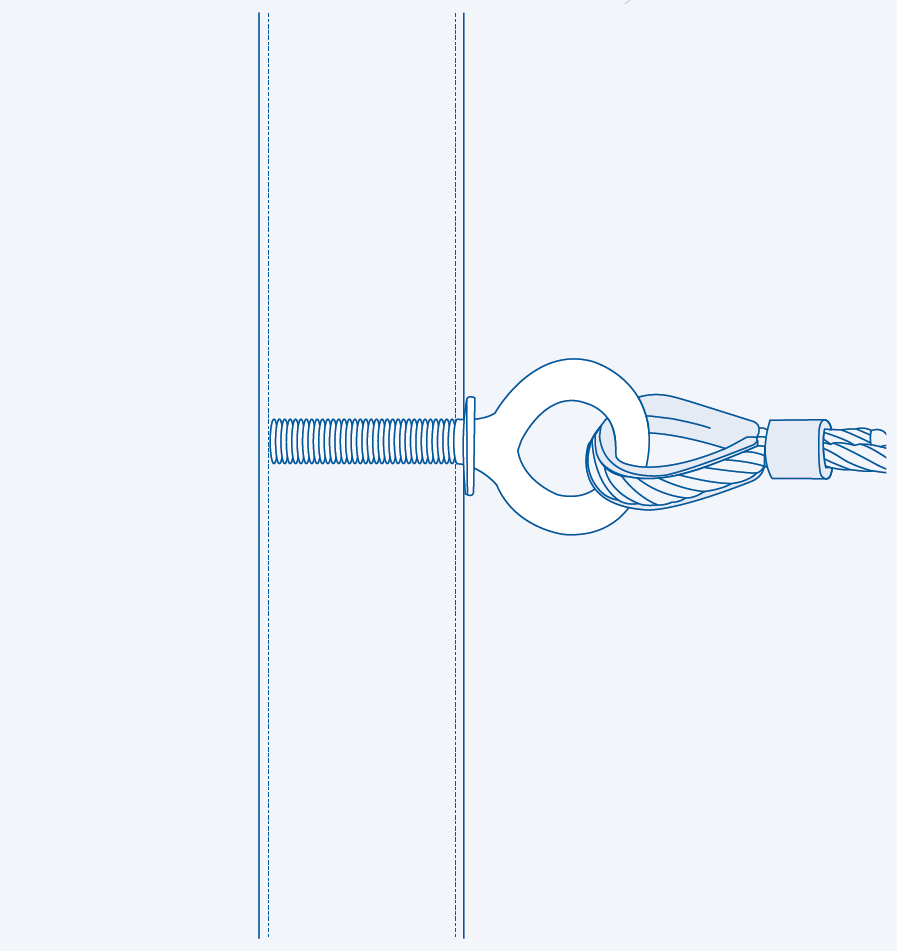

Eye Bolt (with double washer and nut)
304 ss
| SS304 | Size | ØC (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 4319-1640 | 6*40 | 13 | 5.30 | 40 | M6 | 0.02 | 1,000 |
| 4319-1660 | 6*60 | 13 | 5.30 | 60 | M6 | 0.03 | 1,000 |
| 4319-1680 | 6*80 | 13 | 5.30 | 80 | M6 | 0.03 | 1,000 |
| 4319-1610 | 6*100 | 13 | 5.30 | 100 | M6 | 0.03 | 1,000 |
| 4319-1860 | 8*60 | 17 | 7.12 | 60 | M8 | 0.05 | 1,800 |
| 4319-1880 | 8*80 | 17 | 7.12 | 80 | M8 | 0.06 | 1,800 |
| 4319-1810 | 8*100 | 17 | 7.12 | 100 | M8 | 0.06 | 1,800 |
| 4319-1812 | 8*120 | 17 | 7.12 | 120 | M8 | 0.07 | 1,800 |
| 4319-1813 | 8*130 | 17 | 7.12 | 130 | M8 | 0.07 | 1,800 |
| 4319-1106 | 10*60 | 21 | 8.80 | 60 | M10 | 0.10 | 2,400 |
| 4319-1107 | 10*80 | 21 | 8.80 | 80 | M10 | 0.11 | 2,400 |
| 4319-1101 | 10*100 | 21 | 8.80 | 100 | M10 | 0.12 | 2,400 |
| 4319-1102 | 10*120 | 21 | 8.80 | 120 | M10 | 0.13 | 2,400 |
| 4319-1104 | 10*150 | 21 | 8.80 | 150 | M10 | 0.14 | 2,400 |
| 4319-1121 | 12*100 | 25 | 10.70 | 100 | M12 | 0.19 | 3,500 |
| 4319-1122 | 12*120 | 25 | 10.70 | 120 | M12 | 0.20 | 3,500 |
| 4319-1124 | 12*150 | 25 | 10.70 | 150 | M12 | 0.22 | 3,500 |
| 4319-1165 | 16*150 | 18 | 14.45 | 150 | M16 | 0.31 | 7,500 |
| SS304 | Size | ØC (inch) | ØD (inch) | L (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 4319-1316 | 3/16"UNC x 1" | 0.38 | 3/16" | 1" | 3/16" | 0.01 | 600 |
| 4319-1416 | 1/4"UNC x 2.3/8" | 0.51 | 7/32" | 2.3/8" | 1/4" | 0.07 | 2,200 |
| 4319-1516 | 5/16"UNC x 3.1/4" | 0.63 | 5/16" | 3.1/4" | 5/16" | 0.10 | 2,200 |
| 4319-1511 | 5/16"UNC x 4" | 0.67 | 17/64" | 4" | 5/16" | 0.13 | 3,960 |
| 4319-1381 | 3/8"UNC x 4" | 0.83 | 21/64" | 4" | 3/8" | 0.26 | 5,280 |
| 4319-1214 | 1/2"UNC x 4" | 0.98 | 7/16" | 4" | 1/2" | 0.44 | 7,700 |
| 4319-1612 | 1/2"UNC x 6" | 0.94 | 1/2" | 6" | 1/2" | 0.45 | 7,700 |
| 4319-1308 | 3/8"UNC x 6" | 0.75 | 3/8" | 6" | 3/8" | 0.28 | 7,700 |
