Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
Production: SF319 - Ring - Welded
Bolt - Forged
Surface Treatment: “E.P.”(Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF319

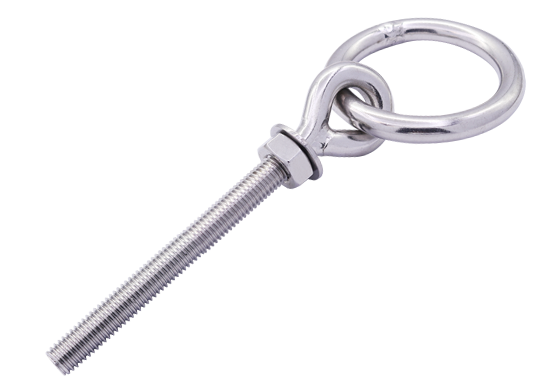

Ring bolt (with washer and nut)
304 ss

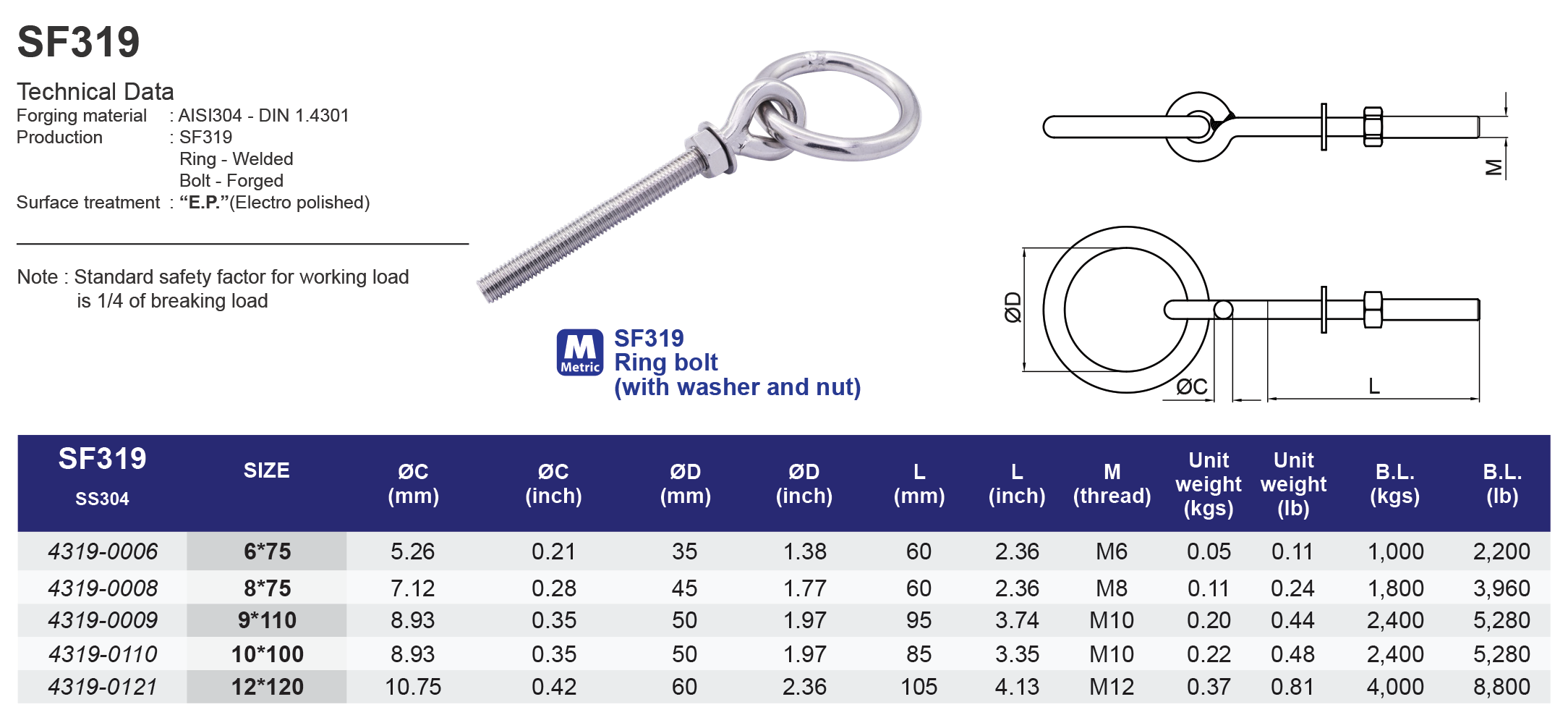

| SS304 | Size | ØC (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 43190006 | 6*75 | 5.26 | 35 | 60 | M6 | 0.05 | 1,000 |
| 43190008 | 8*75 | 7.12 | 45 | 60 | M8 | 0.11 | 1,800 |
| 43190009 | 9*110 | 8.93 | 50 | 95 | M10 | 0.20 | 2,400 |
| 43190110 | 10*100 | 8.93 | 50 | 85 | M10 | 0.22 | 2,400 |
| 43190121 | 12*120 | 10.75 | 60 | 105 | M12 | 0.37 | 4,000 |
| SS304 | Size | ØC (inch) | ØD (inch) | L (inch) | M (mm) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 43190006 | 1/4" x 3" | 0.21 | 1.38 | 2.36 | M6 | 0.11 | 2,200 |
| 43190008 | 5/16" x 3" | 0.28 | 1.77 | 2.36 | M8 | 0.24 | 3,960 |
| 43190009 | 11/32" x 4-3/8" | 0.35 | 1.97 | 3.74 | M10 | 0.44 | 5,280 |
| 43190110 | 3/8" x 4" | 0.35 | 1.97 | 3.35 | M10 | 0.48 | 5,280 |
| 43190121 | 1/2" x 4-3/4" | 0.42 | 2.36 | 4.13 | M12 | 0.81 | 8,800 |
