Description
Technical Data:
Casting Material: AISI316 - DIN 1.4401
Production: SF3182 - Bolt - Forged
Surface Treatment: “E.P.” (Electro polished) DATA SHEET DOWNLOAD
Model
SF3182
Eye Bolt (wooden screw)
316 ss

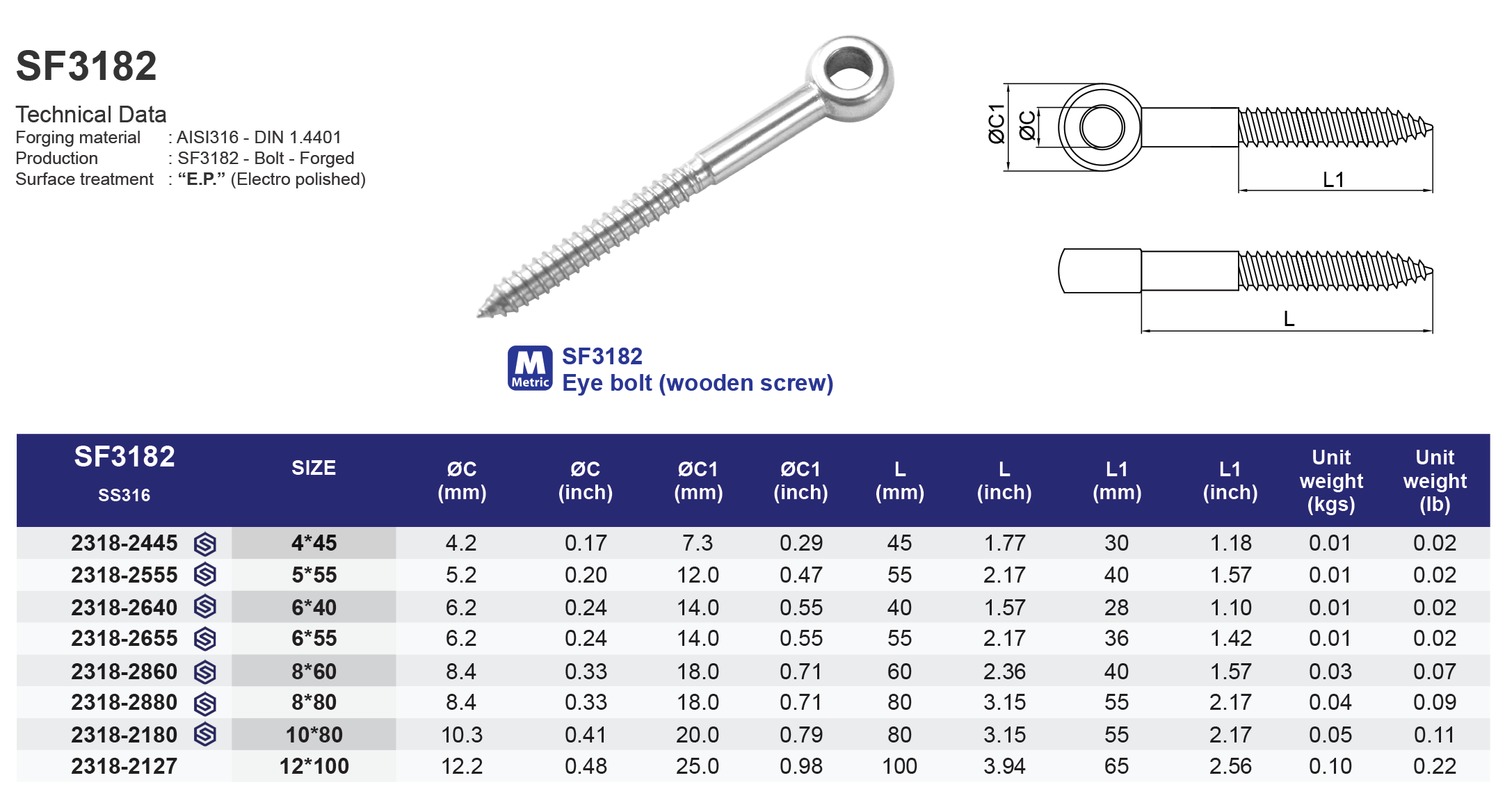

| SS316 | Size | ØC (mm) | ØC1 (mm) | L (mm) | L1 (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 23182445 | 4*45 | 4.2 | 7.3 | 45 | 30 | 0.01 |
| 23182555 | 5*55 | 5.2 | 12.0 | 55 | 40 | 0.01 |
| 23182640 | 6*40 | 6.2 | 14.0 | 40 | 28 | 0.01 |
| 23182655 | 6*55 | 6.2 | 14.0 | 55 | 36 | 0.01 |
| 23182860 | 8*60 | 8.4 | 18.0 | 60 | 40 | 0.03 |
| 23182880 | 8*80 | 8.4 | 18.0 | 80 | 55 | 0.04 |
| 23182180 | 10*80 | 10.3 | 20.0 | 80 | 55 | 0.05 |
| 32182127 | 12*100 | 12.2 | 25.0 | 100 | 65 | 0.10 |
| SS316 | Size | ØC (inch) | ØC1 (inch) | L (inch) | L1 (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 23182445 | 4*45 | 0.17 | 0.29 | 1.77 | 1.18 | 0.02 |
| 23182555 | 5*55 | 0.20 | 0.47 | 2.17 | 1.57 | 0.02 |
| 23182640 | 6*40 | 0.24 | 0.55 | 1.57 | 1.10 | 0.02 |
| 23182655 | 6*55 | 0.24 | 0.55 | 2.17 | 1.42 | 0.02 |
| 23182860 | 8*60 | 0.33 | 0.71 | 2.36 | 1.57 | 0.07 |
| 23182880 | 8*80 | 0.33 | 0.71 | 3.15 | 2.17 | 0.09 |
| 23182180 | 10*80 | 0.41 | 0.79 | 3.15 | 2.17 | 0.11 |
| 32182127 | 12*100 | 0.48 | 0.98 | 3.94 | 2.56 | 0.22 |
