Description
Technical Data:
Forging Material:
AISI304 - DIN 1.4301
Production:
SF318 - Ring - Welded
Nail - Forged
Surface Treatment:
Electro polished / Passivated
Model

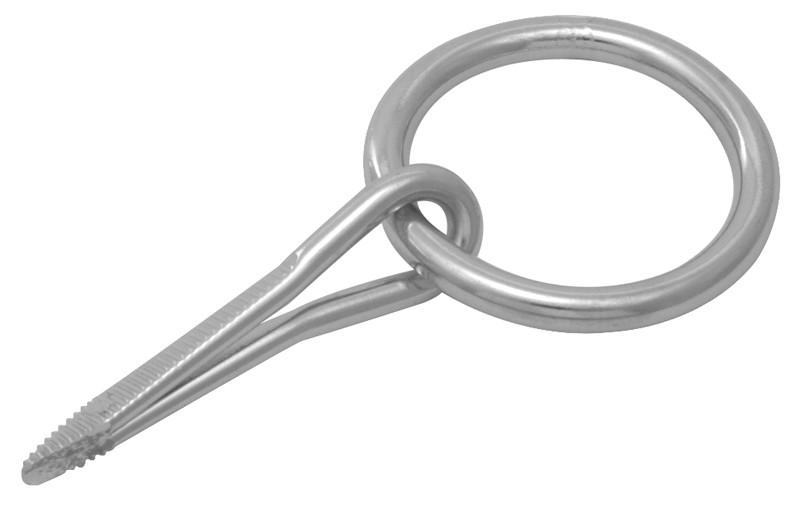

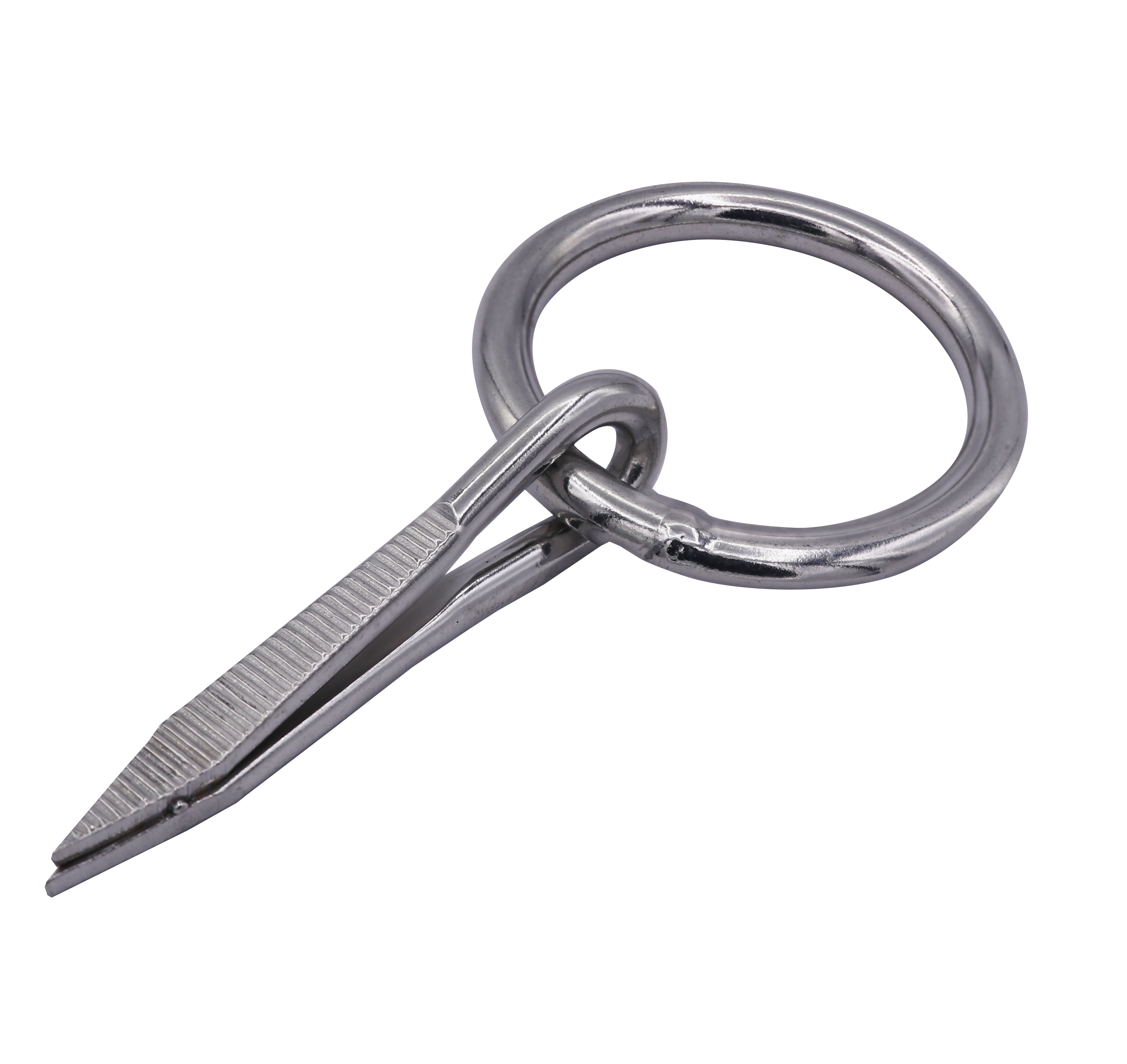

SF318
Ring nail
304 ss

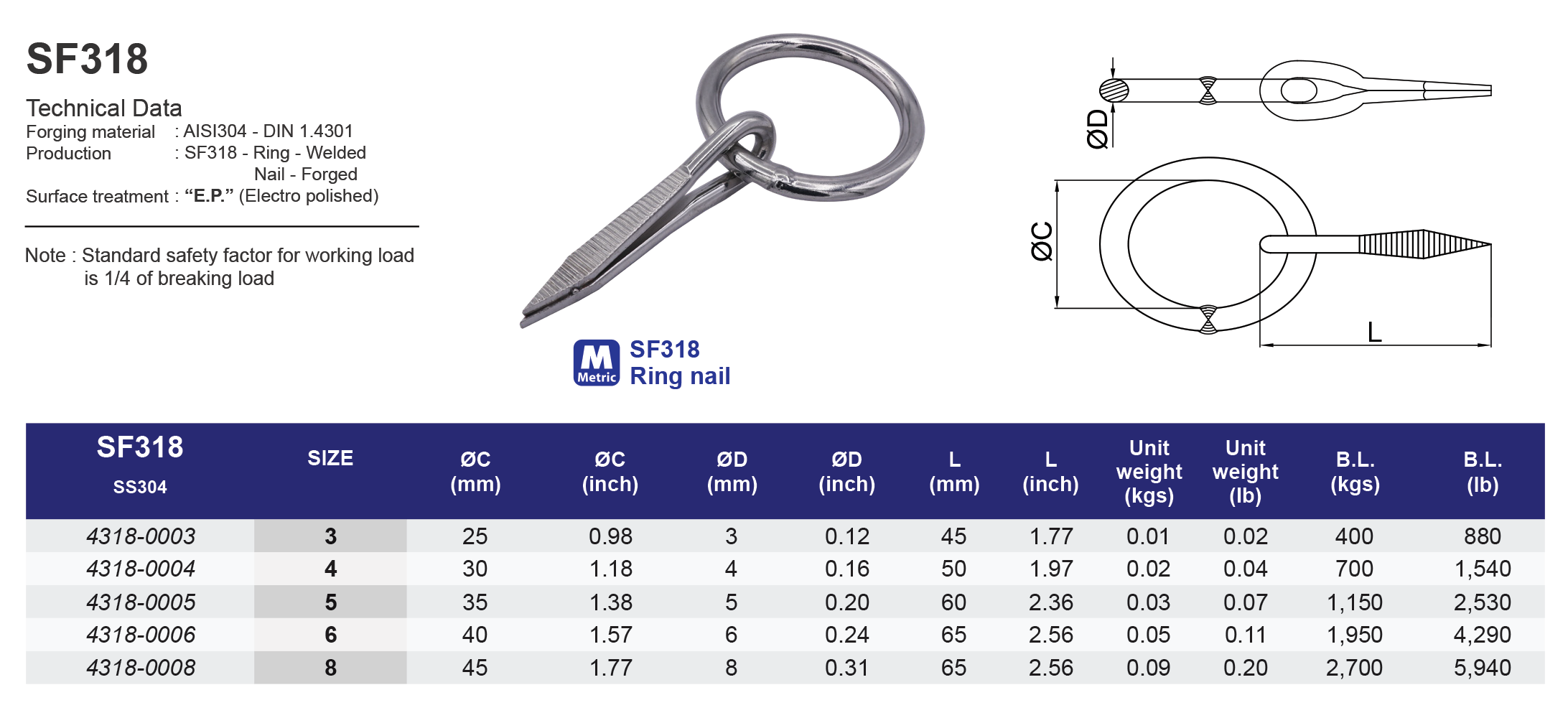

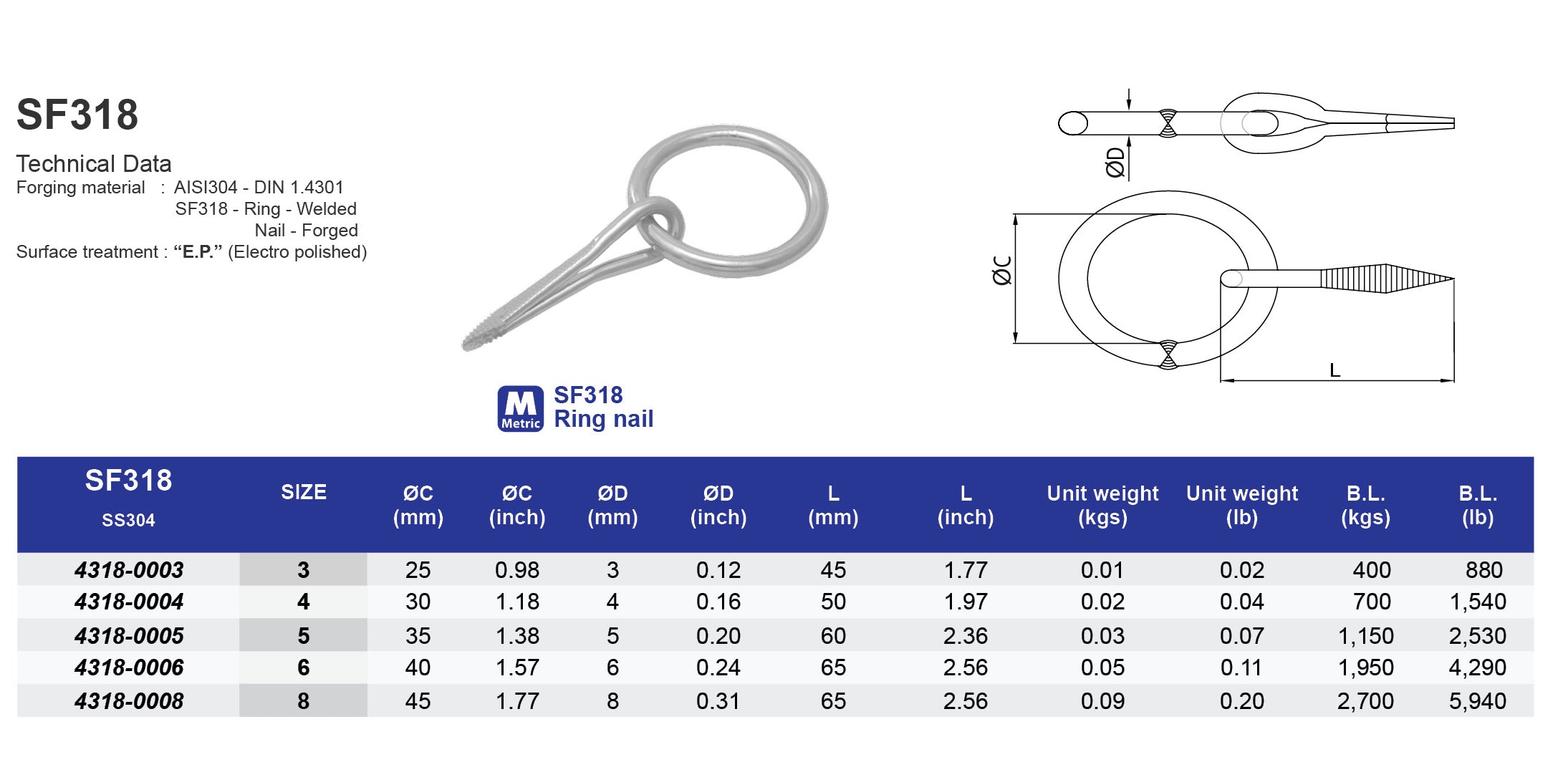

| SS304 | Size | ØC(mm) | ØD(mm) | L(mm) | Unit weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 4318-0003 | 3 | 25 | 3 | 45 | 0.01 | 400 |
| 4318-0004 | 4 | 30 | 4 | 50 | 0.02 | 700 |
| 4318-0005 | 5 | 35 | 5 | 60 | 0.03 | 1,150 |
| 4318-0006 | 6 | 40 | 6 | 65 | 0.05 | 1,950 |
| 4318-0008 | 8 | 45 | 8 | 65 | 0.09 | 2,700 |
| SS304 | Size | ØC(inch) | ØD(inch) | L(inch) | Unit weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 4318-0003 | 3 | 0.98 | 0.12 | 1.77 | 0.02 | 880 |
| 4318-0004 | 4 | 1.18 | 0.16 | 1.97 | 0.04 | 1,540 |
| 4318-0005 | 5 | 1.38 | 0.20 | 2.36 | 0.07 | 2,530 |
| 4318-0006 | 6 | 1.57 | 0.24 | 2.56 | 0.11 | 4,290 |
| 4318-0008 | 8 | 1.77 | 0.31 | 2.56 | 0.20 | 5,940 |
