Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF3171 - Ring - Welded
Surface Treatment:“E.P.” (Electro polished) Note : Breaking load is described as the load point where welding fails. Deformation load is however lower and is dependent on
the diameter of rod and circumference of ring.
A general rule is to assume deformation load
at around 1/5 of breaking load. DATA SHEET DOWNLOAD
Model
SF3171
Round ring (center cross bar)
316 ss

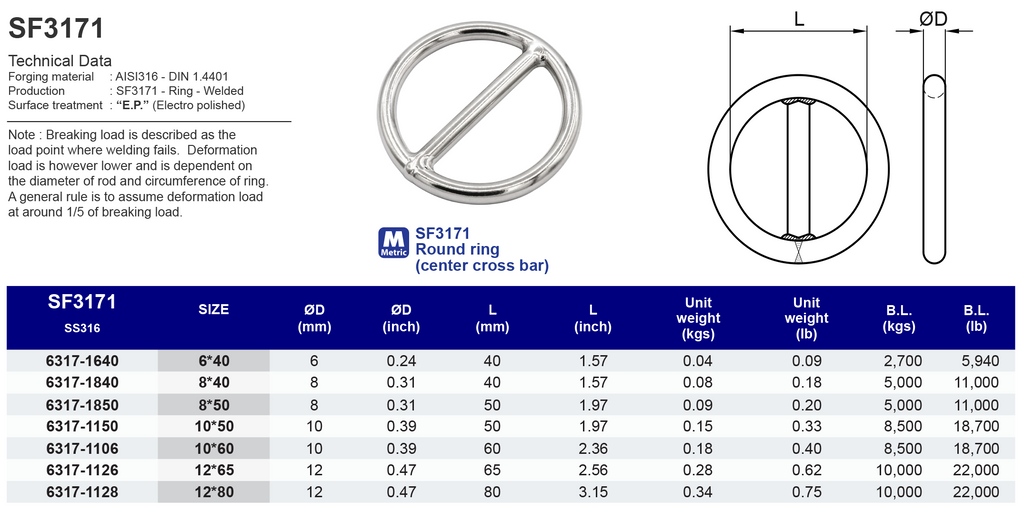

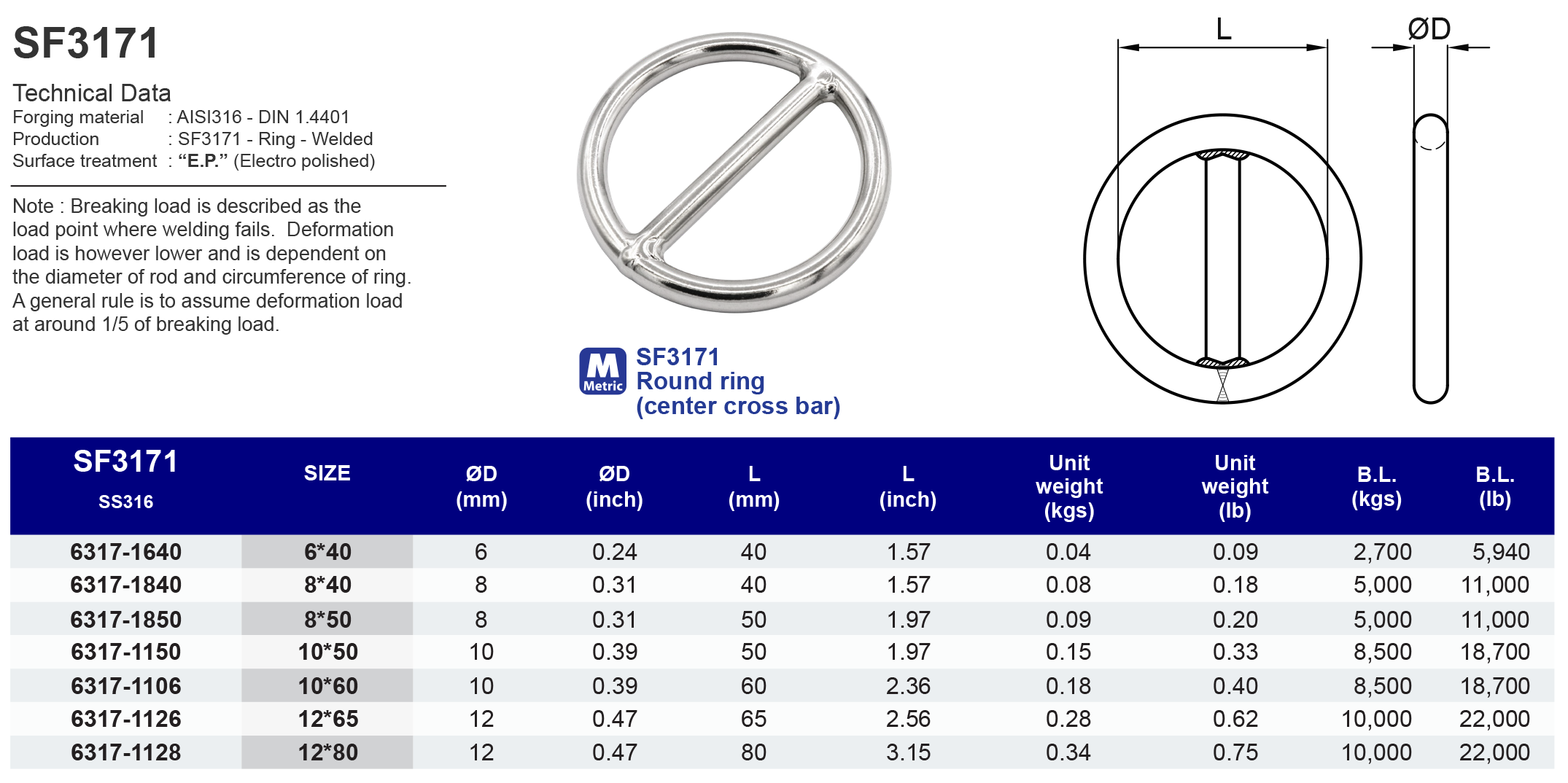

| SS316 | Size | ØD (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|
| 63171640 | 6*40 | 6 | 40 | 0.04 | 2,700 |
| 63171840 | 8*40 | 8 | 40 | 0.08 | 5,000 |
| 63171850 | 8*50 | 8 | 50 | 0.09 | 5,000 |
| 63171150 | 10*50 | 10 | 50 | 0.15 | 8,500 |
| 63171106 | 10*60 | 10 | 60 | 0.18 | 8,500 |
| 63171126 | 12*65 | 12 | 65 | 0.28 | 10,000 |
| 63171128 | 12*80 | 12 | 80 | 0.34 | 10,000 |
| SS316 | Size | ØD (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|
| 63171640 | 1/4" x 1-9/16" | 0.24 | 1.57 | 0.09 | 5,940 |
| 63171840 | 5/16" x 1-9/16" | 0.31 | 1.57 | 0.18 | 11,000 |
| 63171850 | 5/16" x 2" | 0.31 | 1.97 | 0.20 | 11,000 |
| 63171150 | 3/8" x 2" | 0.39 | 1.97 | 0.33 | 18,700 |
| 63171106 | 3/8" x 2-3/8" | 0.39 | 2.36 | 0.40 | 18,700 |
| 63171126 | 1/2" x 2-1/2" | 0.47 | 2.56 | 0.62 | 22,000 |
| 63171128 | 1/2" x 3-1/4" | 0.47 | 3.15 | 0.75 | 22,000 |
