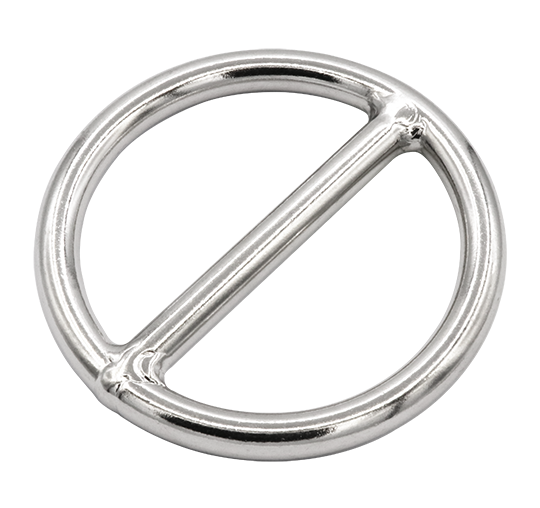

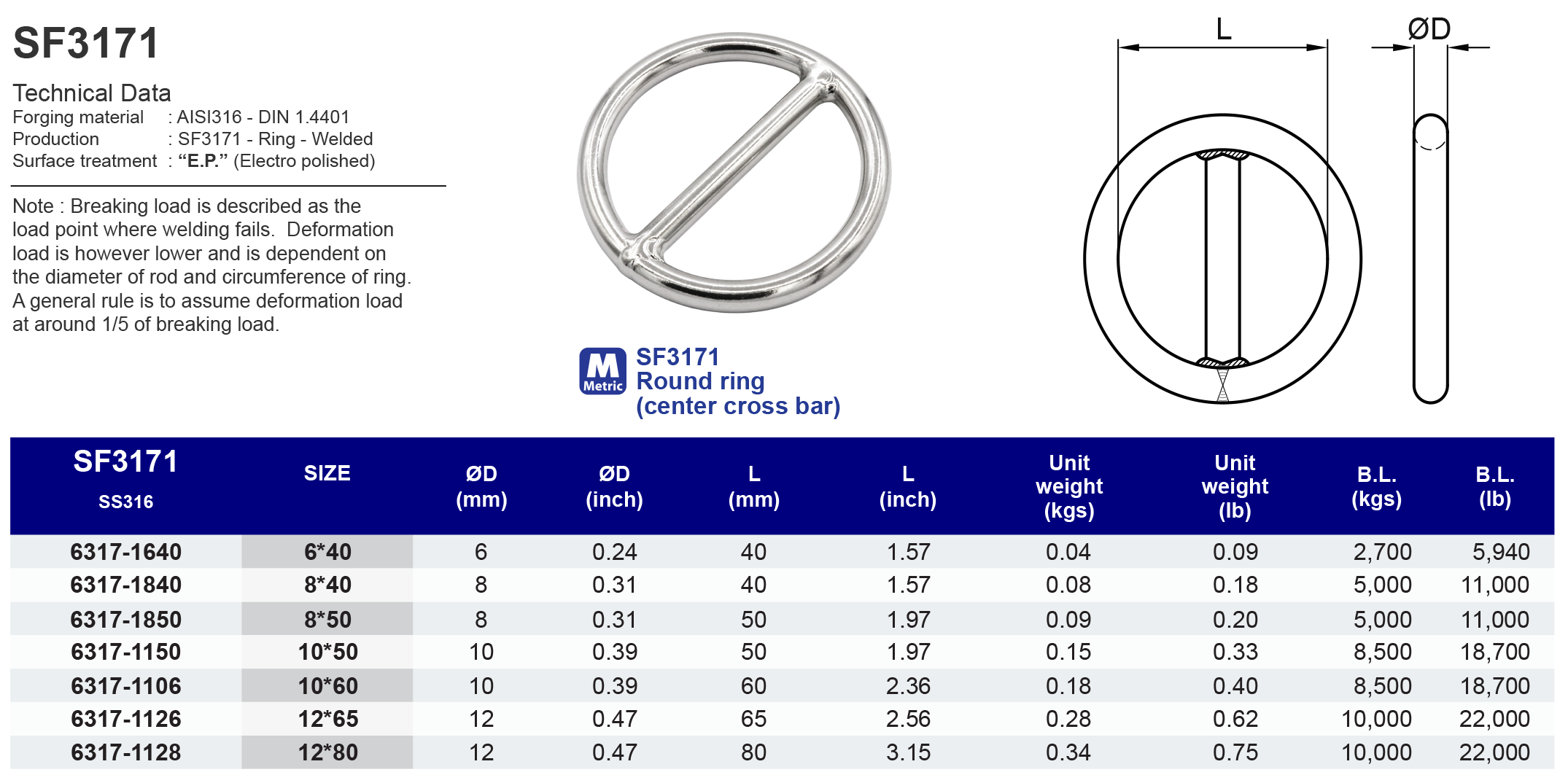

SF3171 Round ring (center cross bar)

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF3171 - Ring - Welded
Surface Treatment:“E.P.” (Electro polished)

Note : Breaking load is described as the
load point where welding fails. Deformation
load is however lower and is dependent on
the diameter of rod and circumference of ring.
A general rule is to assume deformation load
at around 1/5 of breaking load.
