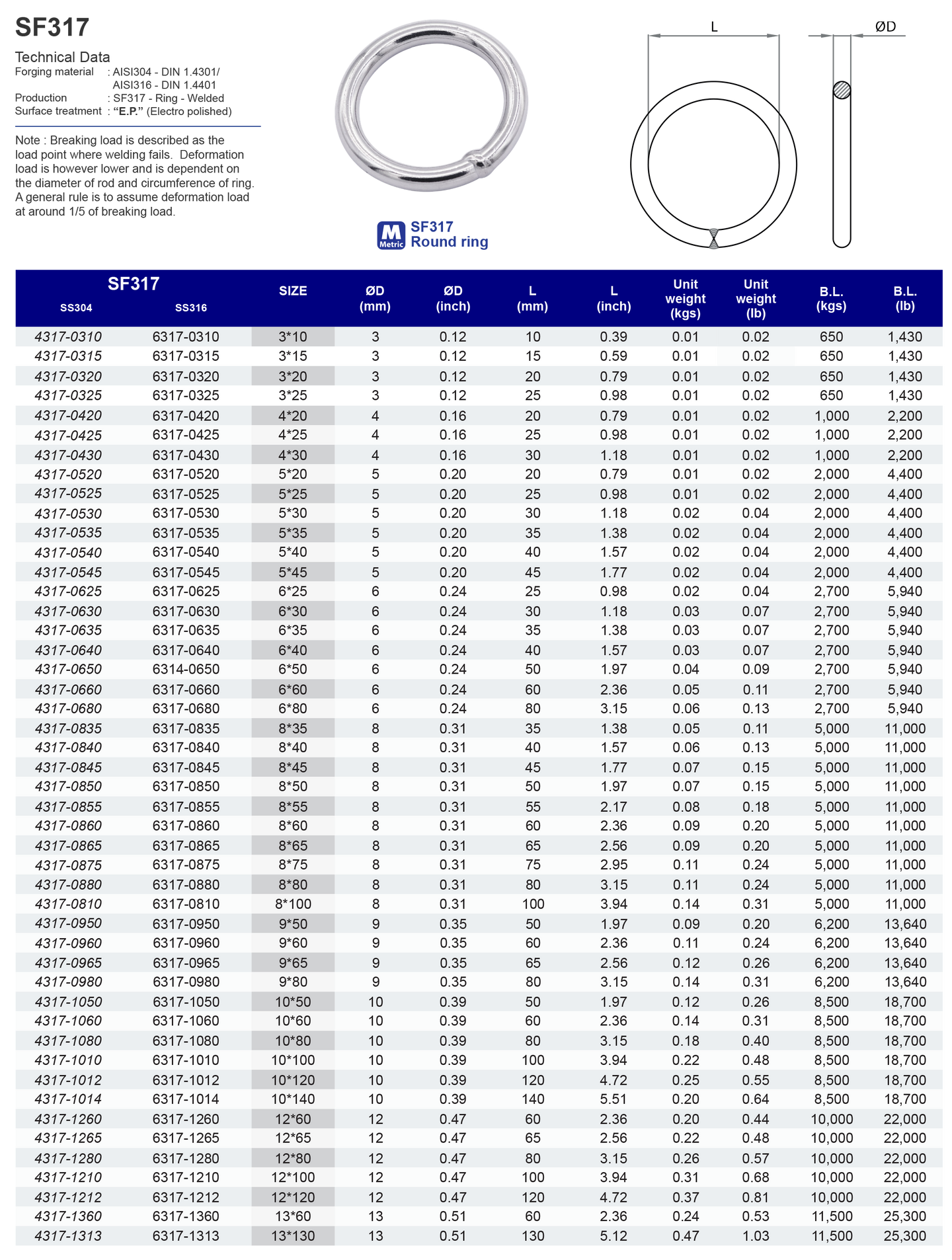

Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: SF317 - Ring - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Breaking load is described as the load point where welding fails. Deformation
load is however lower and is dependent on
the diameter of rod and circumference of ring.
A general rule is to assume deformation load
at around 1/5 of breaking load.
Model
SF317
Round ring
316 ss
| SS316 | Size | ØD (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|
| 63170310 | 3*10 | 3 | 10 | 0.01 | 650 |
| 63170315 | 3*15 | 3 | 15 | 0.01 | 650 |
| 63170320 | 3*20 | 3 | 20 | 0.01 | 650 |
| 63170325 | 3*25 | 3 | 25 | 0.01 | 650 |
| 63170420 | 4*20 | 4 | 20 | 0.01 | 1,000 |
| 63170425 | 4*25 | 4 | 25 | 0.01 | 1,000 |
| 63170430 | 4*30 | 4 | 30 | 0.01 | 1,000 |
| 63170520 | 5*20 | 5 | 20 | 0.01 | 2,000 |
| 63170525 | 5*25 | 5 | 25 | 0.01 | 2,000 |
| 63170530 | 5*30 | 5 | 30 | 0.02 | 2,000 |
| 63170535 | 5*35 | 5 | 35 | 0.02 | 2,000 |
| 63170540 | 5*40 | 5 | 40 | 0.02 | 2,000 |
| 63170545 | 5*45 | 5 | 45 | 0.02 | 2,000 |
| 63170625 | 6*25 | 6 | 25 | 0.02 | 2,700 |
| 63170630 | 6*30 | 6 | 30 | 0.03 | 2,700 |
| 63170635 | 6*35 | 6 | 35 | 0.03 | 2,700 |
| 63170640 | 6*40 | 6 | 40 | 0.03 | 2,700 |
| 63140650 | 6*50 | 6 | 50 | 0.04 | 2,700 |
| 63170660 | 6*60 | 6 | 60 | 0.05 | 2,700 |
| 63170680 | 6*80 | 6 | 80 | 0.06 | 2,700 |
| 63170835 | 8*35 | 8 | 35 | 0.05 | 5,000 |
| 63170840 | 8*40 | 8 | 40 | 0.06 | 5,000 |
| 63170845 | 8*45 | 8 | 45 | 0.07 | 5,000 |
| 63170850 | 8*50 | 8 | 50 | 0.07 | 5,000 |
| 63170855 | 8*55 | 8 | 55 | 0.08 | 5,000 |
| 63170860 | 8*60 | 8 | 60 | 0.09 | 5,000 |
| 63170865 | 8*65 | 8 | 65 | 0.09 | 5,000 |
| 63170875 | 8*75 | 8 | 75 | 0.11 | 5,000 |
| 63170880 | 8*80 | 8 | 80 | 0.11 | 5,000 |
| 63170810 | 8*100 | 8 | 100 | 0.14 | 5,000 |
| 63170950 | 9*50 | 9 | 50 | 0.09 | 6,200 |
| 63170960 | 9*60 | 9 | 60 | 0.11 | 6,200 |
| 63170965 | 9*65 | 9 | 65 | 0.12 | 6,200 |
| 63170980 | 9*80 | 9 | 80 | 0.14 | 6,200 |
| 63171050 | 10*50 | 10 | 50 | 0.12 | 8,500 |
| 63171060 | 10*60 | 10 | 60 | 0.14 | 8,500 |
| 63171080 | 10*80 | 10 | 80 | 0.18 | 8,500 |
| 63171010 | 10*100 | 10 | 100 | 0.22 | 8,500 |
| 63171012 | 10*120 | 10 | 120 | 0.25 | 8,500 |
| 63171014 | 10*140 | 10 | 140 | 0.20 | 8,500 |
| 63171260 | 12*60 | 12 | 60 | 0.20 | 10,000 |
| 63171265 | 12*65 | 12 | 65 | 0.22 | 10,000 |
| 63171280 | 12*80 | 12 | 80 | 0.26 | 10,000 |
| 63171210 | 12*100 | 12 | 100 | 0.31 | 10,000 |
| 63171212 | 12*120 | 12 | 120 | 0.37 | 10,000 |
| 63171360 | 13*60 | 13 | 60 | 0.24 | 11,500 |
| 63171313 | 13*130 | 13 | 130 | 0.47 | 11,500 |
| SS316 | Size | ØD (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|
| 63170310 | 1/8" x 3/8" | 0.12 | 0.39 | 0.02 | 1,430 |
| 63170315 | 1/8" x 9/16" | 0.12 | 0.59 | 0.02 | 1,430 |
| 63170320 | 1/8" x 3/4" | 0.12 | 0.79 | 0.02 | 1,430 |
| 63170325 | 1/8" x 1" | 0.12 | 0.98 | 0.02 | 1,430 |
| 63170420 | 5/32" x 3/4" | 0.16 | 0.79 | 0.02 | 2,200 |
| 63170425 | 5/32" x 1" | 0.16 | 0.98 | 0.02 | 2,200 |
| 63170430 | 5/32" x 1-3/16" | 0.16 | 1.18 | 0.02 | 2,200 |
| 63170520 | 3/16" x 3/4" | 0.20 | 0.79 | 0.02 | 4,400 |
| 63170525 | 3/16" x 1" | 0.20 | 0.98 | 0.02 | 4,400 |
| 63170530 | 3/16" x 1-3/16" | 0.20 | 1.18 | 0.04 | 4,400 |
| 63170535 | 3/16"x35 | 0.20 | 1.38 | 0.04 | 4,400 |
| 63170540 | 3/16" x 1-9/16" | 0.20 | 1.57 | 0.04 | 4,400 |
| 63170545 | 3/16" x 1-3/4" | 0.20 | 1.77 | 0.04 | 4,400 |
| 63170625 | 1/4" x 1" | 0.24 | 0.98 | 0.04 | 5,940 |
| 63170630 | 1/4" x 1-3/16" | 0.24 | 1.18 | 0.07 | 5,940 |
| 63170635 | 1/4" x 1-1/4" | 0.24 | 1.38 | 0.07 | 5,940 |
| 63170640 | 1/4" x 1-9/16" | 0.24 | 1.57 | 0.07 | 5,940 |
| 63140650 | 1/4" x 2" | 0.24 | 1.97 | 0.09 | 5,940 |
| 63170660 | 1/4" x 2-3/8" | 0.24 | 2.36 | 0.11 | 5,940 |
| 63170680 | 1/4" x 3-3/16" | 0.24 | 3.15 | 0.13 | 5,940 |
| 63170835 | 5/16" x 1-1/4" | 0.31 | 1.38 | 0.11 | 11,000 |
| 63170840 | 5/16" x 1-9/16" | 0.31 | 1.57 | 0.13 | 11,000 |
| 63170845 | 5/16" x 1-3/4" | 0.31 | 1.77 | 0.15 | 11,000 |
| 63170850 | 5/16" x 2" | 0.31 | 1.97 | 0.15 | 11,000 |
| 63170855 | 5/16" x 2-1/4" | 0.31 | 2.17 | 0.18 | 11,000 |
| 63170860 | 5/16" x 2-3/8" | 0.31 | 2.36 | 0.20 | 11,000 |
| 63170865 | 5/16" x 2-1/2" | 0.31 | 2.56 | 0.20 | 11,000 |
| 63170875 | 5/16" x 3" | 0.31 | 2.95 | 0.24 | 11,000 |
| 63170880 | 5/16" x 3-1/4" | 0.31 | 3.15 | 0.24 | 11,000 |
| 63170810 | 5/16" x 4" | 0.31 | 3.94 | 0.31 | 11,000 |
| 63170950 | 11/32" x 2" | 0.35 | 1.97 | 0.20 | 13,640 |
| 63170960 | 11/32" x 2-3/8" | 0.35 | 2.36 | 0.24 | 13,640 |
| 63170965 | 11/32" x 2-1/2" | 0.35 | 2.56 | 0.26 | 13,640 |
| 63170980 | 11/32" x 3-1/4" | 0.35 | 3.15 | 0.31 | 13,640 |
| 63171050 | 3/8" x 2" | 0.39 | 1.97 | 0.26 | 18,700 |
| 63171060 | 3/8" x 2-3/8" | 0.39 | 2.36 | 0.31 | 18,700 |
| 63171080 | 3/8" x 3-3/16" | 0.39 | 3.15 | 0.40 | 18,700 |
| 63171010 | 3/8" x 4" | 0.39 | 3.94 | 0.48 | 18,700 |
| 63171012 | 3/8" x 4-3/4" | 0.39 | 4.72 | 0.55 | 18,700 |
| 63171014 | 3/8" x 5-1/2" | 0.39 | 5.51 | 0.64 | 18,700 |
| 63171260 | 15/32" x 2-3/8" | 0.47 | 2.36 | 0.44 | 22,000 |
| 63171265 | 15/32" x 2-1/2" | 0.47 | 2.56 | 0.48 | 22,000 |
| 63171280 | 15/32" x 3-1/4" | 0.47 | 3.15 | 0.57 | 22,000 |
| 63171210 | 15/32" x 4" | 0.47 | 3.94 | 0.68 | 22,000 |
| 63171212 | 15/32" x 4-3/4" | 0.47 | 4.72 | 0.81 | 22,000 |
| 63171360 | 1/2" x 2-3/8" | 0.51 | 2.36 | 0.53 | 25,300 |
| 63171313 | 1/2" x 5-7/16" | 0.51 | 5.12 | 1.03 | 25,300 |
