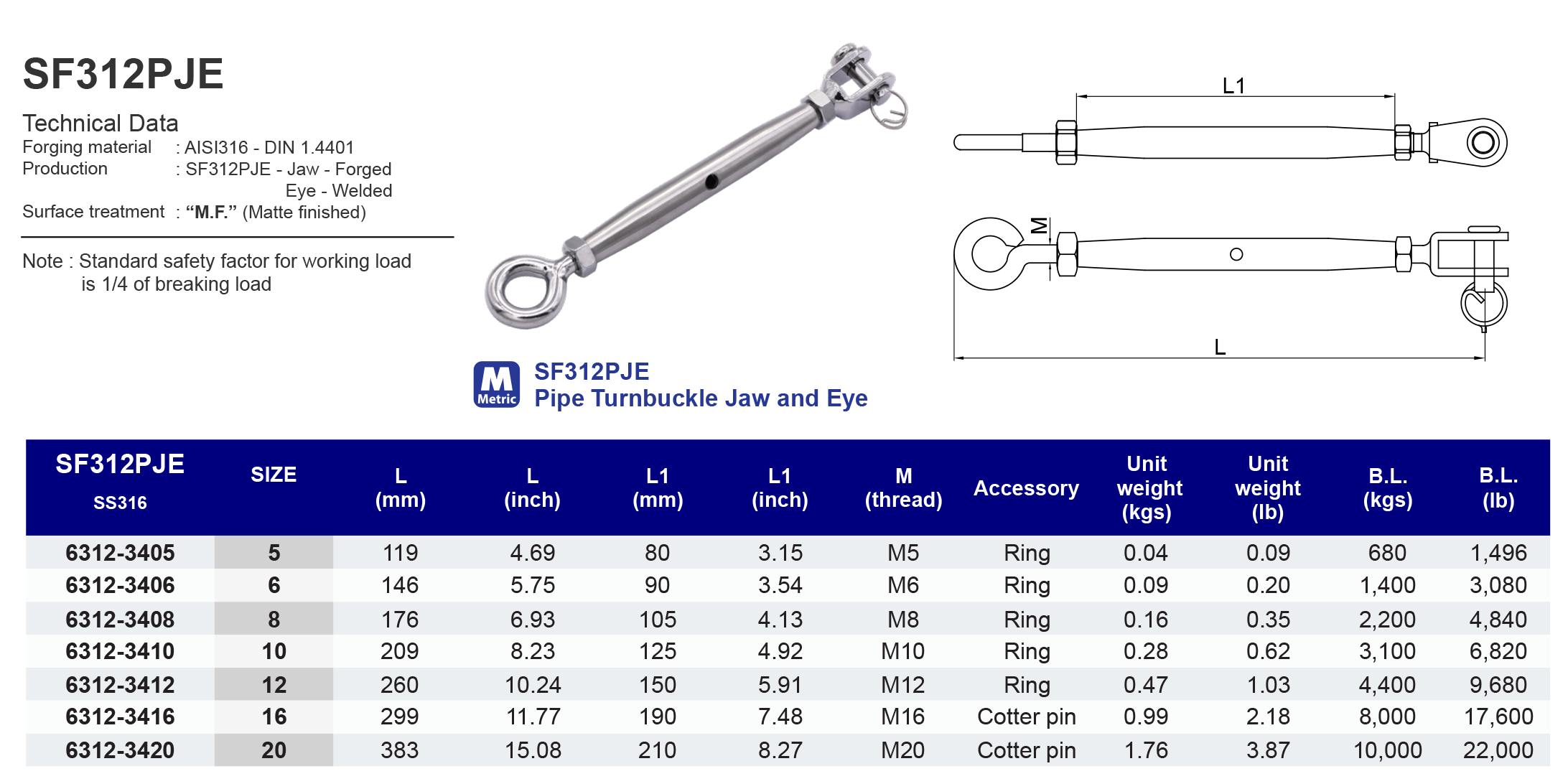

Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Production:
SF312PJE - Jaw - Forged
Eye - Welded
Accessory - See Chart
Surface Treatment:
Matte finished / Passivated
Model
SF312PJE

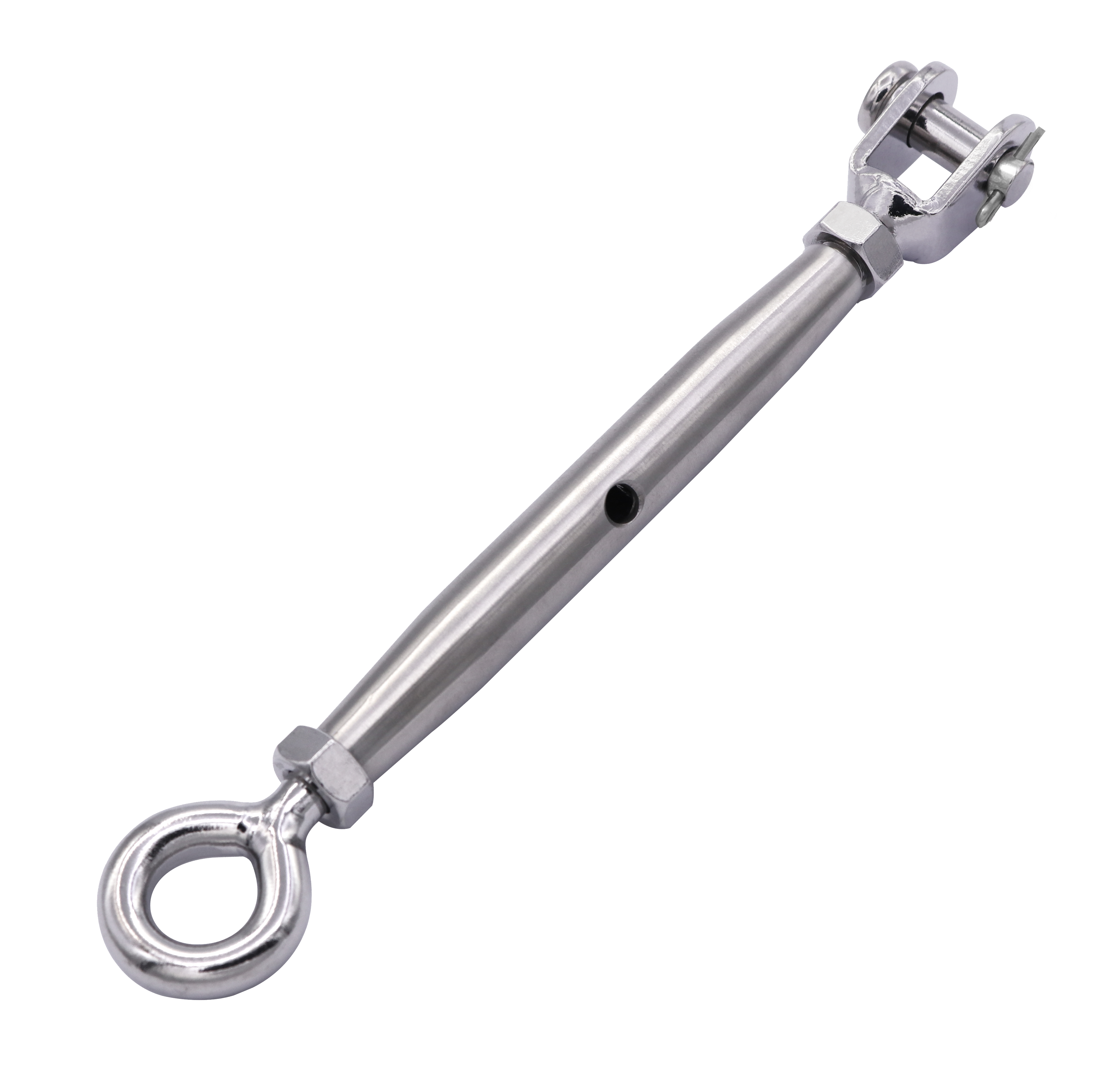

Pipe Turnbuckle Jaw and Eye
316 ss
SS316 | Size | L(mm) | L1(mm) | M(thread) | Accessory | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|
63123405 | 5 | 119 | 80 | M5 | Ring | 0.04 | 680 |
63123406 | 6 | 146 | 90 | M6 | Ring | 0.07 | 1,400 |
63123408 | 8 | 176 | 105 | M8 | Ring | 0.14 | 2,200 |
63123410 | 10 | 209 | 125 | M10 | Ring | 0.25 | 3,100 |
63123412 | 12 | 260 | 150 | M12 | Ring | 0.43 | 4,400 |
63123416 | 16 | 299 | 190 | M16 | Cotter pin | 0.87 | 8,000 |
63123420 | 20 | 383 | 210 | M20 | Cotter pin | 1.42 | 10,000 |
SS316 | Size | L(inch) | L1(inch) | M(thread) | Accessory | Unit weight (Ib) | B.L. (lb) |
---|---|---|---|---|---|---|---|
63123405 | 5 | 4.69 | 3.15 | M5 | Ring | 0.04 | 374 |
63123406 | 6 | 5.75 | 3.54 | M6 | Ring | 0.07 | 770 |
63123408 | 8 | 6.93 | 4.13 | M8 | Ring | 0.14 | 1,210 |
63123410 | 10 | 8.23 | 4.92 | M10 | Ring | 0.25 | 1,705 |
63123412 | 12 | 10.24 | 5.91 | M12 | Ring | 0.43 | 2,420 |
63123416 | 16 | 11.77 | 7.48 | M16 | Cotter pin | 0.87 | 4,400 |
63123420 | 20 | 15.08 | 8.27 | M20 | Cotter pin | 1.42 | 5,500 |
