Description

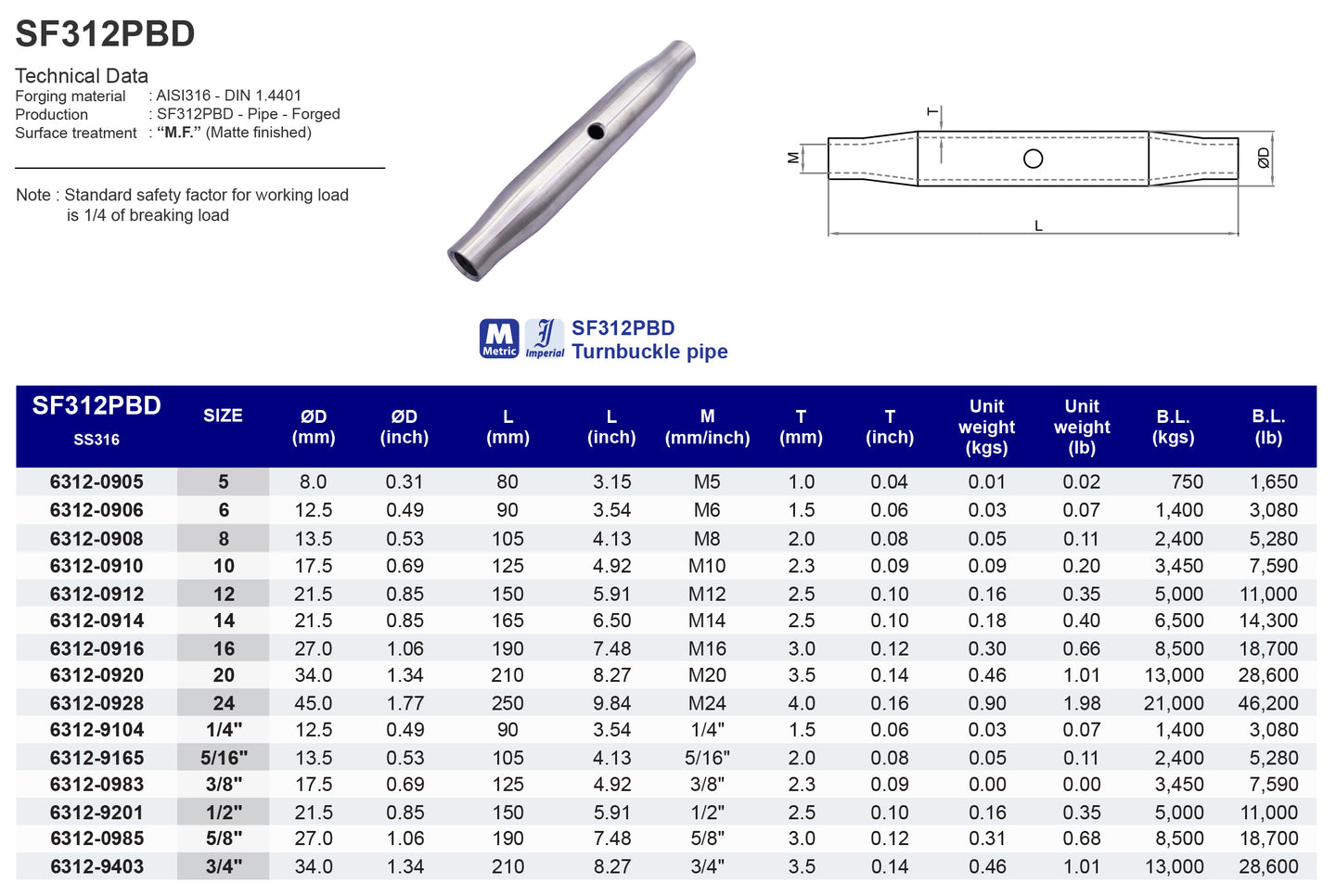

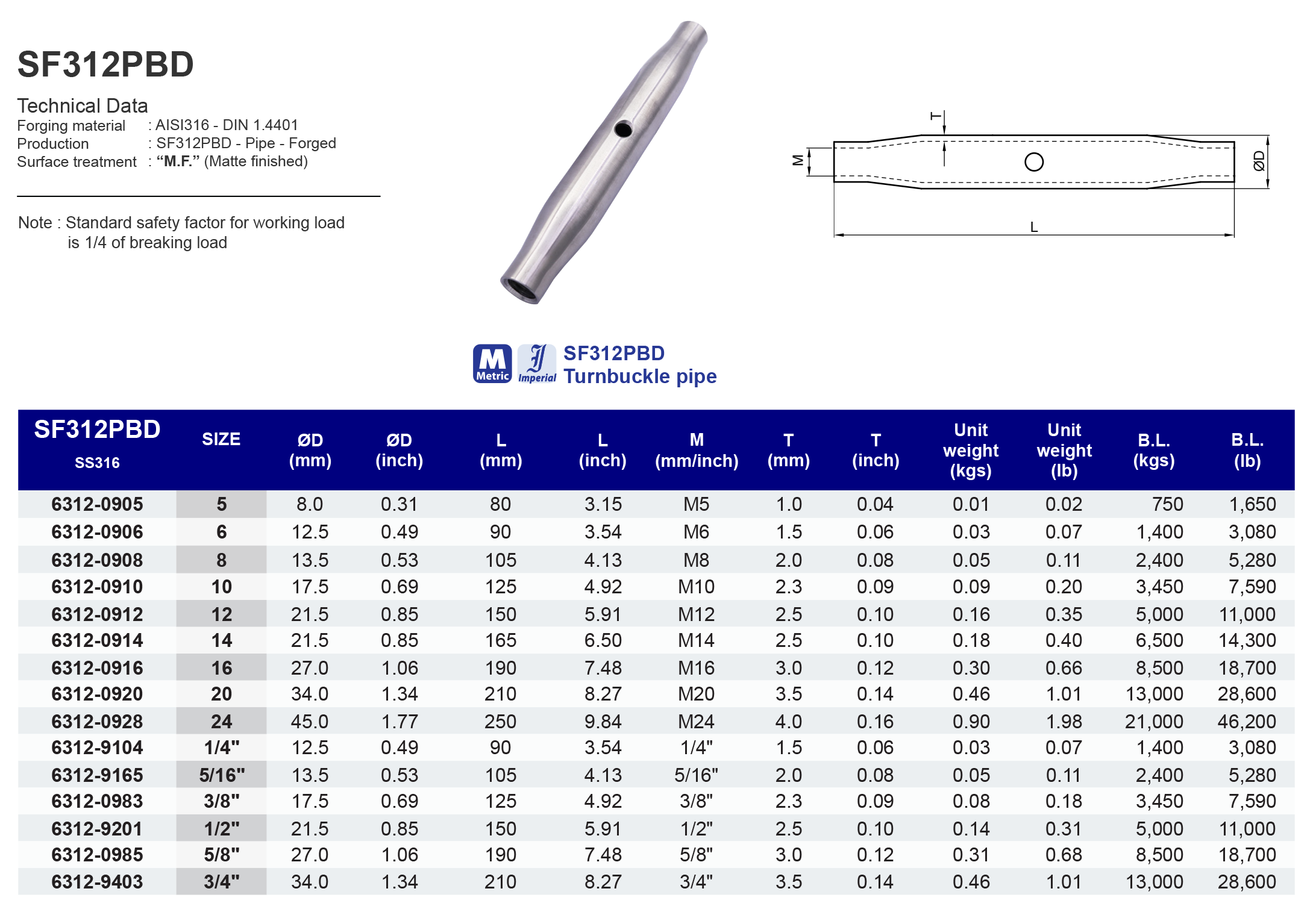

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF312PBD - Pipe - Forged
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF312PBD

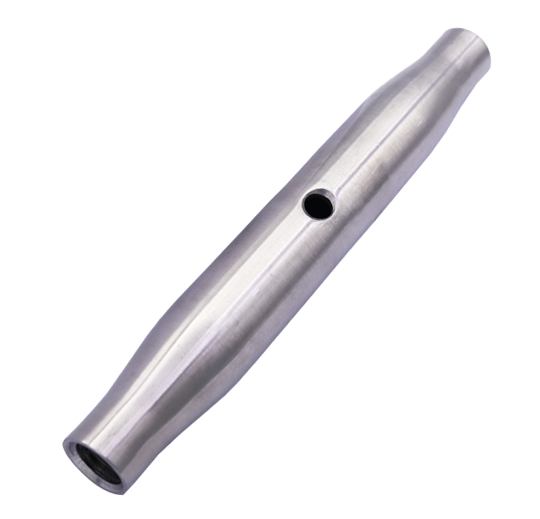

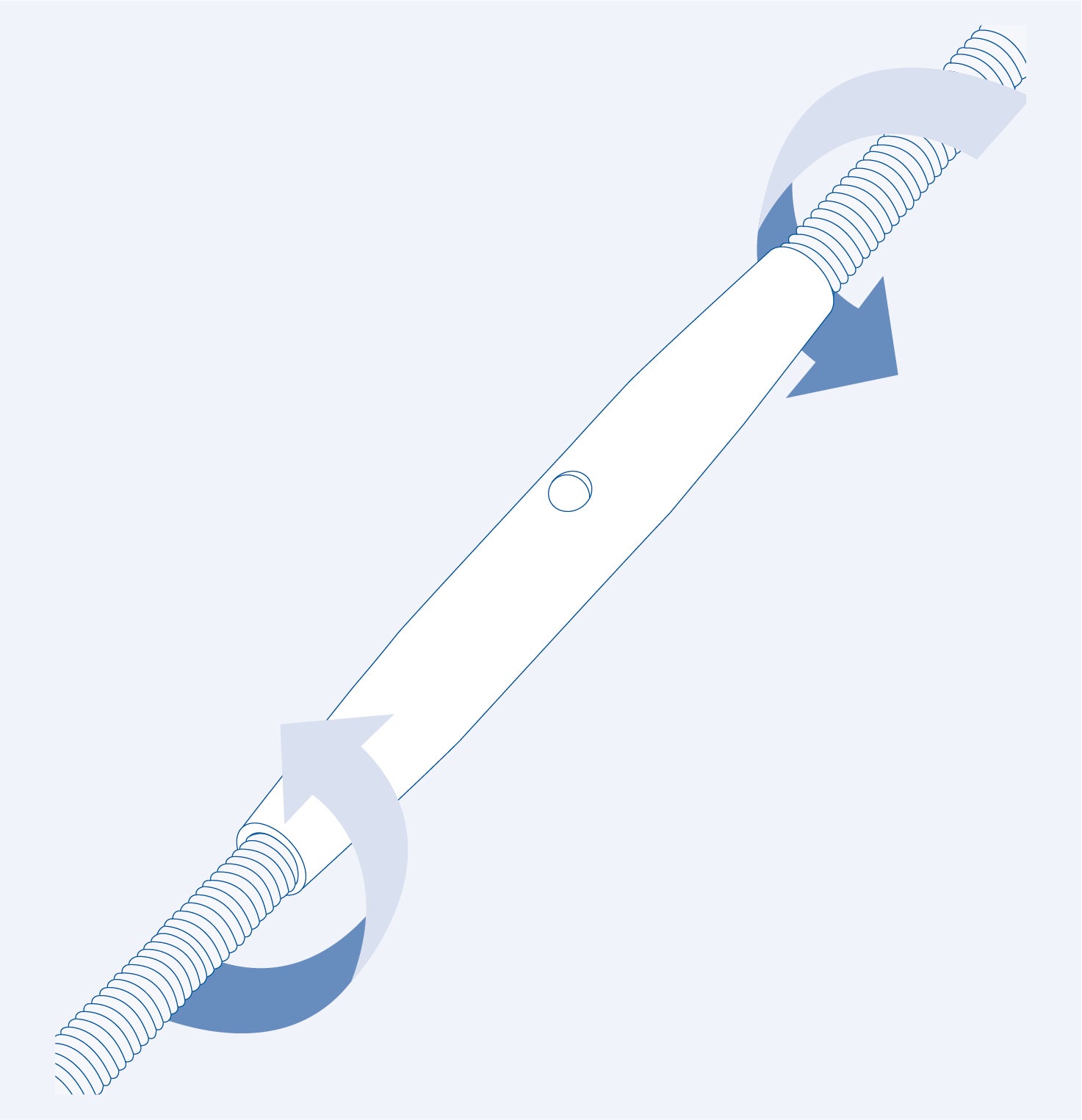

Turnbuckle pipe
316 ss
| SS316 | Size | ØD (mm) | L (mm) | M (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63120905 | 5 | 8.0 | 80 | M5 | 1.0 | 0.01 | 750 |
| 63120906 | 6 | 12.5 | 90 | M6 | 1.5 | 0.03 | 1,400 |
| 63120908 | 8 | 13.5 | 105 | M8 | 2.0 | 0.05 | 2,400 |
| 63120910 | 10 | 17.5 | 125 | M10 | 2.3 | 0.09 | 3,450 |
| 63120912 | 12 | 21.5 | 150 | M12 | 2.5 | 0.16 | 5,000 |
| 63120914 | 14 | 21.5 | 165 | M14 | 2.5 | 0.18 | 6,500 |
| 63120916 | 16 | 27.0 | 190 | M16 | 3.0 | 0.30 | 8,500 |
| 63120920 | 20 | 34.0 | 210 | M20 | 3.5 | 0.46 | 13,000 |
| 63120928 | 24 | 45.0 | 250 | M24 | 4.0 | 0.90 | 21,000 |
| SS316 | Size | ØD (inch) | L (inch) | M (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63129104 | 1/4" | 0.49 | 3.54 | 1/4" | 0.06 | 0.07 | 3,080 |
| 63129165 | 5/16" | 0.53 | 4.13 | 5/16" | 0.08 | 0.11 | 5,280 |
| 63120983 | 3/8" | 0.69 | 4.92 | 3/8" | 0.09 | 0.18 | 7,590 |
| 63129201 | 1/2" | 0.85 | 5.91 | 1/2" | 0.10 | 0.31 | 11,000 |
| 63120985 | 5/8" | 1.06 | 7.48 | 5/8" | 0.12 | 0.68 | 18,700 |
| 63129403 | 3/4" | 1.34 | 8.27 | 3/4" | 0.14 | 1.01 | 28,600 |
