Description

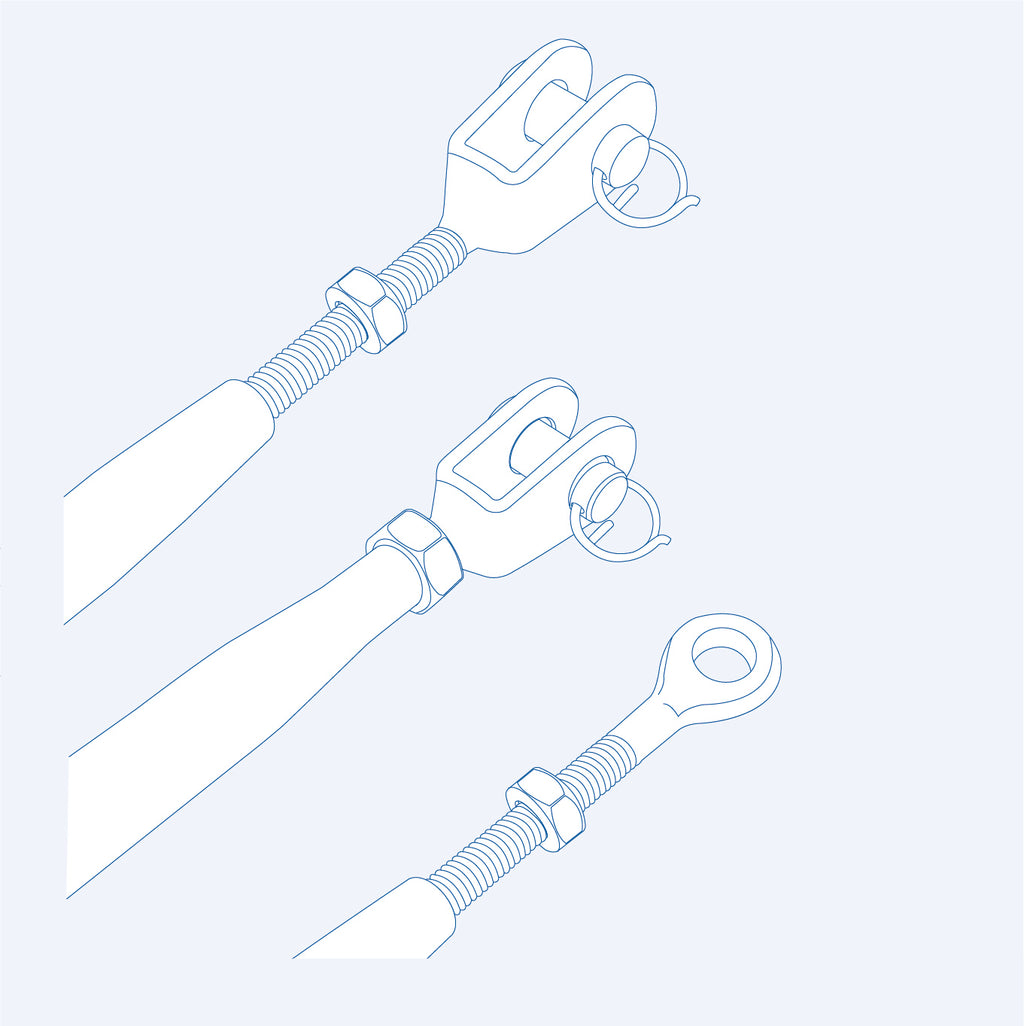

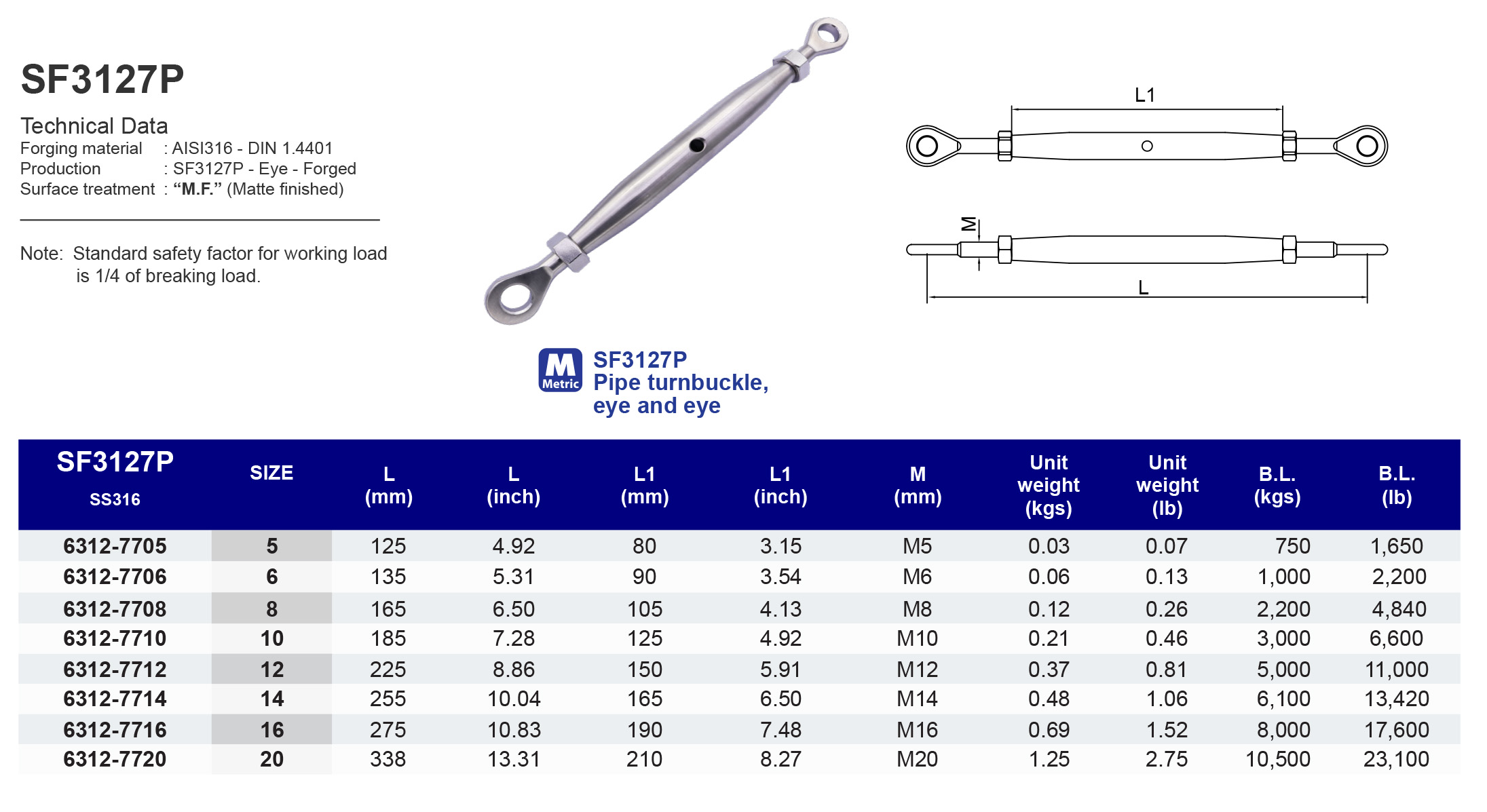

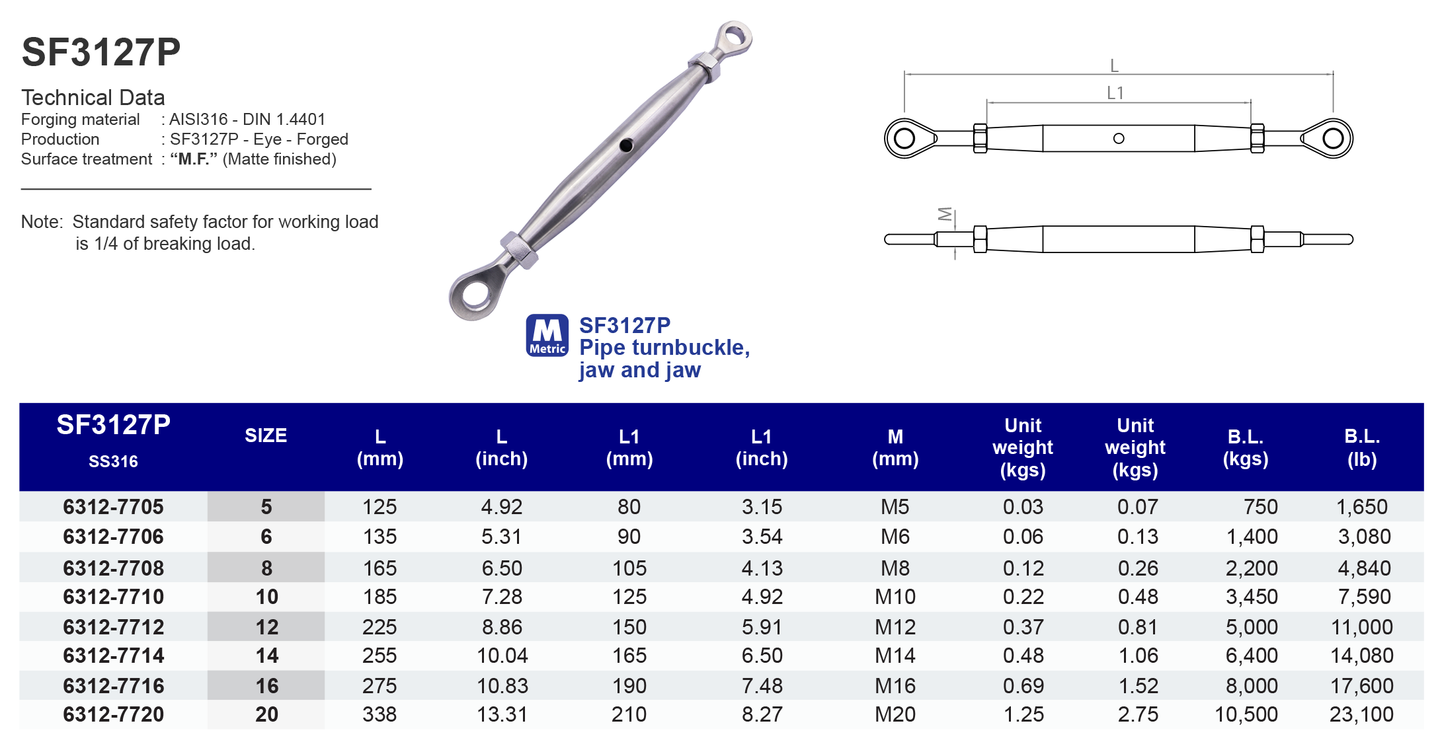

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF3127P - Eye - Forged
Surface Treatment: “M.F.” (Matte finished) Note: Standard safety factor for working loadis 1/4 of breaking load.
Model
SF3127P

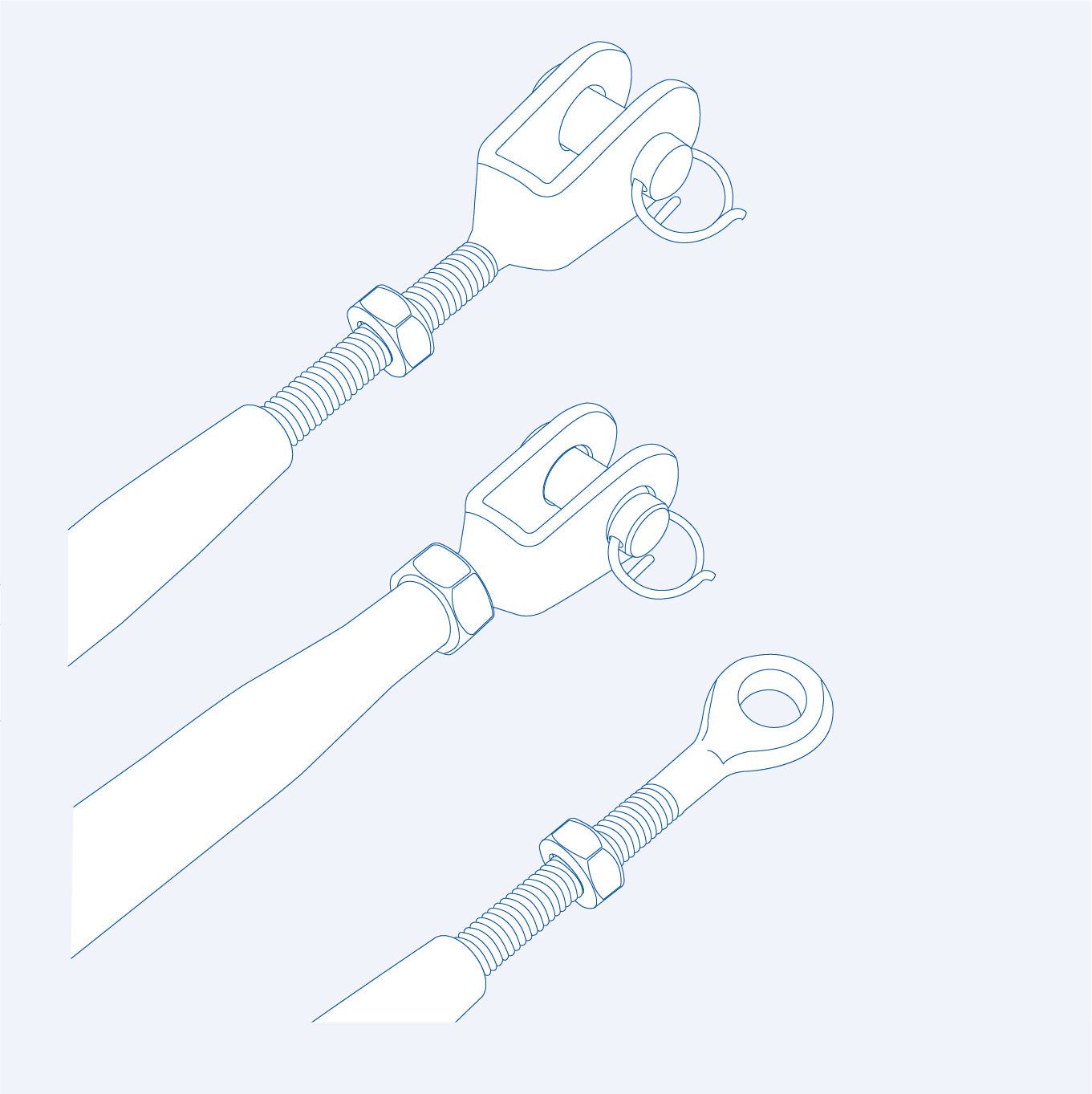

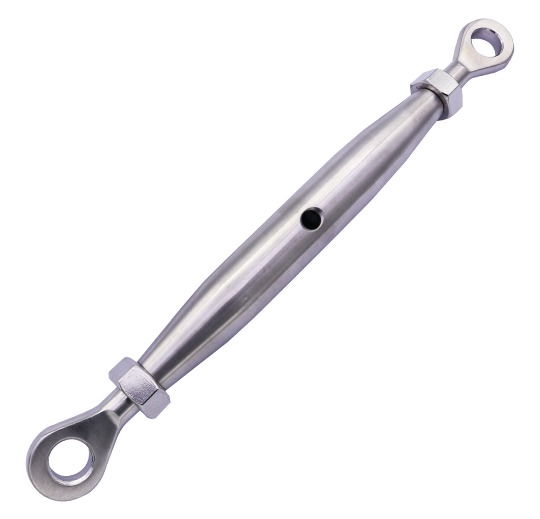

Pipe turnbuckle, eye and eye
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63127705 | 5 | 125 | 80 | M5 | 0.03 | 750 |
| 63127706 | 6 | 135 | 90 | M6 | 0.06 | 1,400 |
| 63127708 | 8 | 165 | 105 | M8 | 0.12 | 2,200 |
| 63127710 | 10 | 185 | 125 | M10 | 0.22 | 3,450 |
| 63127712 | 12 | 225 | 150 | M12 | 0.37 | 5,000 |
| 63127714 | 14 | 255 | 165 | M14 | 0.48 | 6,400 |
| 63127716 | 16 | 275 | 190 | M16 | 0.69 | 8,000 |
| 63127720 | 20 | 338 | 210 | M20 | 1.25 | 10,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (mm) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63127705 | 5 | 4.92 | 3.15 | M5 | 0.07 | 1,650 |
| 63127706 | 6 | 5.31 | 3.54 | M6 | 0.13 | 3,080 |
| 63127708 | 8 | 6.50 | 4.13 | M8 | 0.26 | 4,840 |
| 63127710 | 10 | 7.28 | 4.92 | M10 | 0.48 | 7,590 |
| 63127712 | 12 | 8.86 | 5.91 | M12 | 0.81 | 11,000 |
| 63127714 | 14 | 10.04 | 6.50 | M14 | 1.06 | 14,080 |
| 63127716 | 16 | 10.83 | 7.48 | M16 | 1.52 | 17,600 |
| 63127720 | 20 | 13.31 | 8.27 | M20 | 2.75 | 23,100 |
