Description

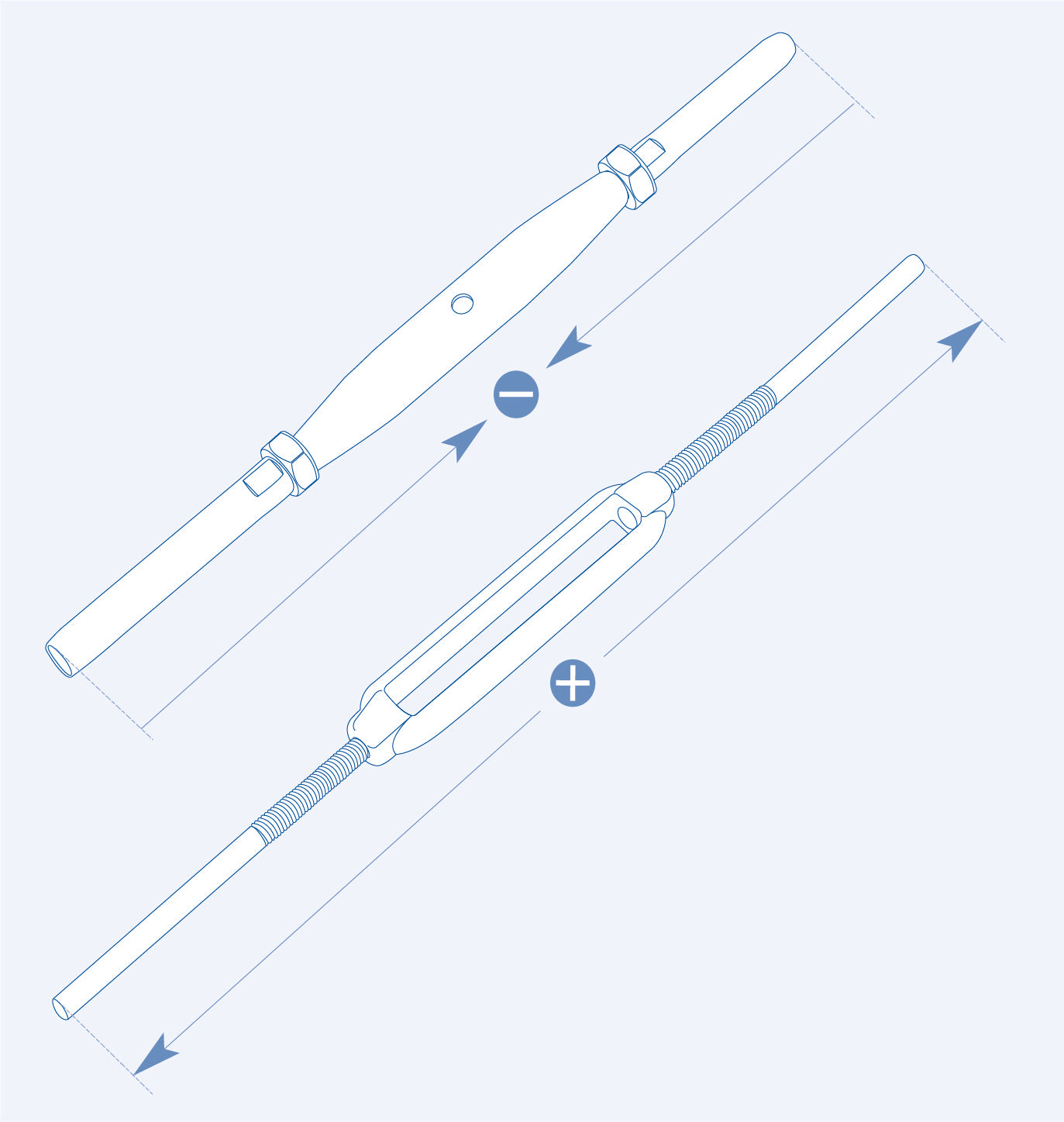

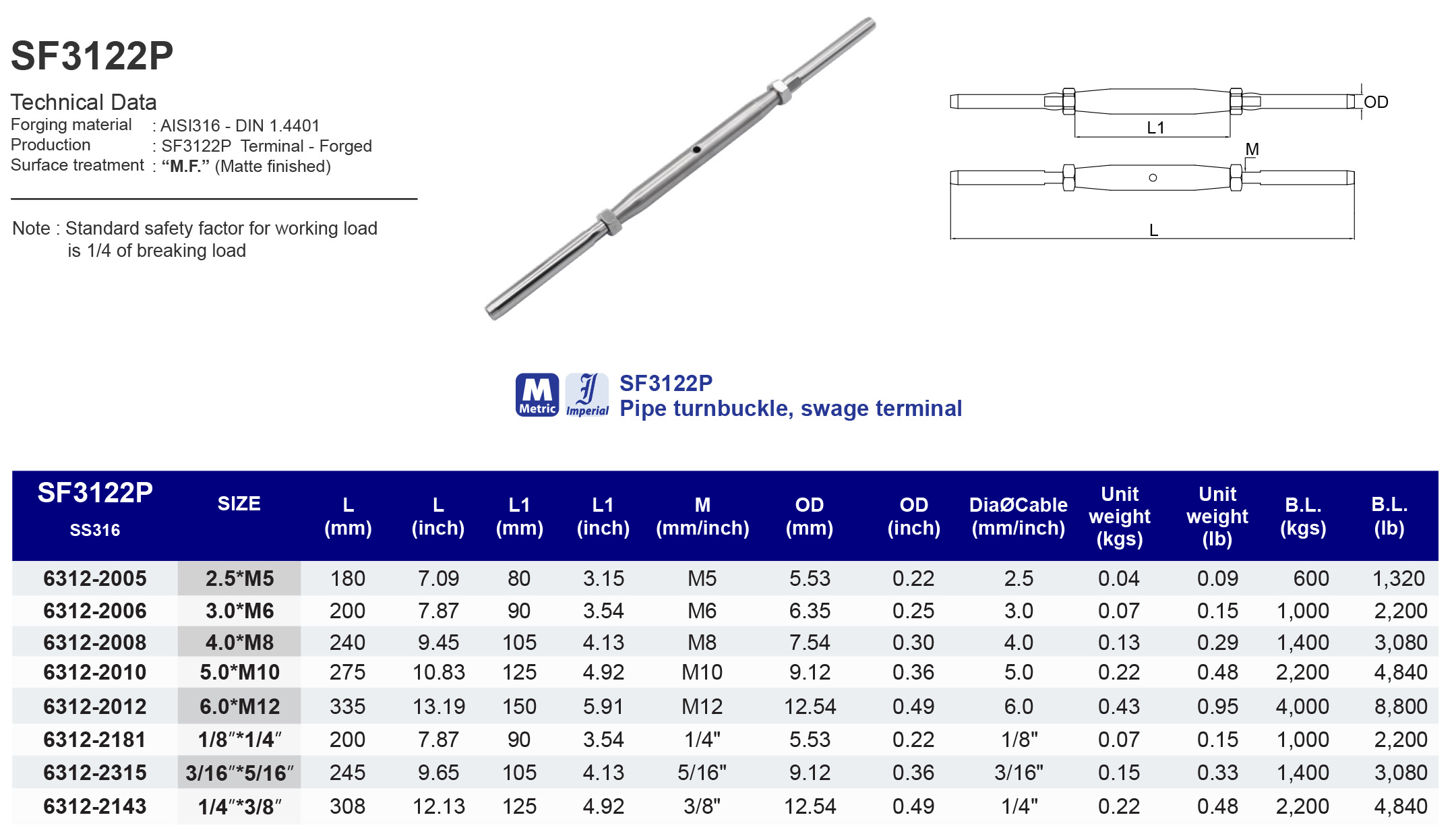

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF3122P - Terminal - Forged
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF3122P
Pipe turnbuckle, swage terminal
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | DiaØCable (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63122005 | 2.5*M5 | 180 | 80 | M5 | 2.5 | 0.04 | 600 |
| 63122006 | 3.0*M6 | 200 | 90 | M6 | 3 | 0.07 | 1,000 |
| 63122008 | 4.0*M8 | 240 | 105 | M8 | 4 | 0.13 | 1,400 |
| 63122010 | 5.0*M10 | 275 | 125 | M10 | 5 | 0.22 | 2,200 |
| 63122012 | 6.0*M12 | 335 | 150 | M12 | 6 | 0.43 | 4,000 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | DiaØCable (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63122181 | 1/8"*1/4" | 7.87 | 3.54 | 1/4" | 1/8" | 0.15 | 2,200 |
| 63122315 | 3/16"*5/16" | 9.76 | 4.13 | 5/16" | 3/16" | 0.33 | 3,080 |
| 63122143 | 1/4"*3/8" | 12.13 | 4.92 | 3/8" | 1/4" | 0.48 | 4,840 |
