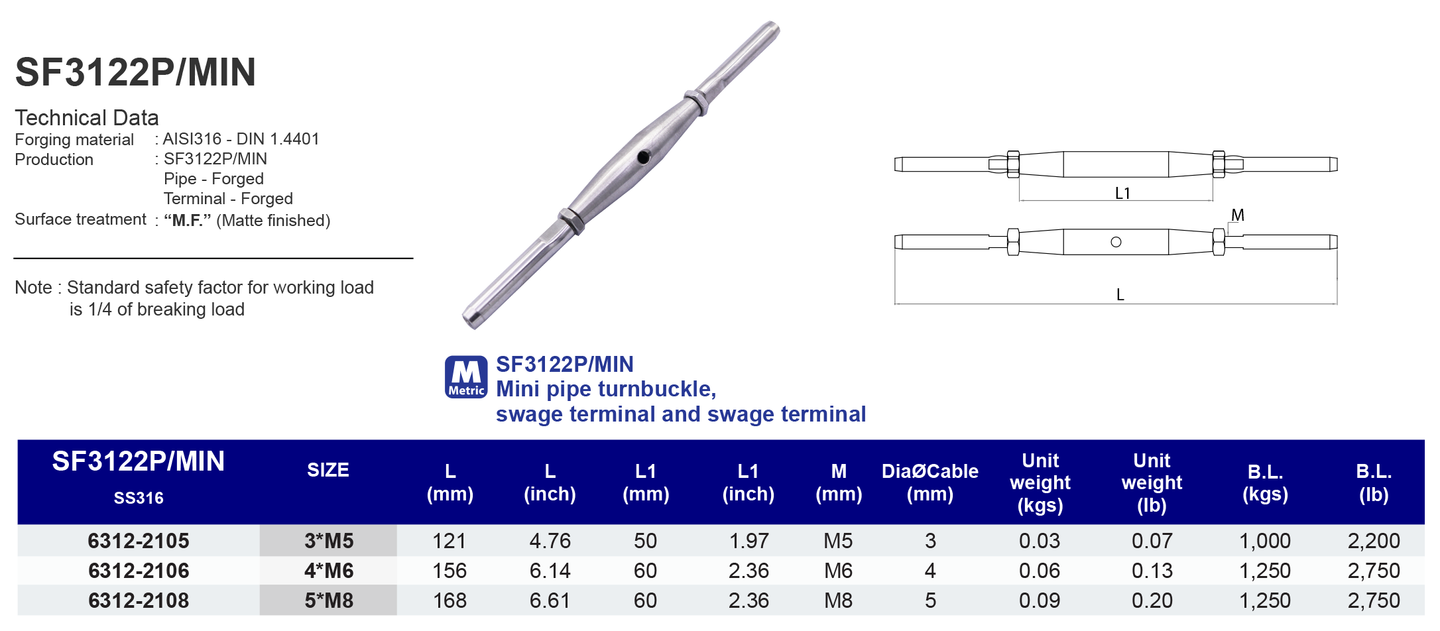

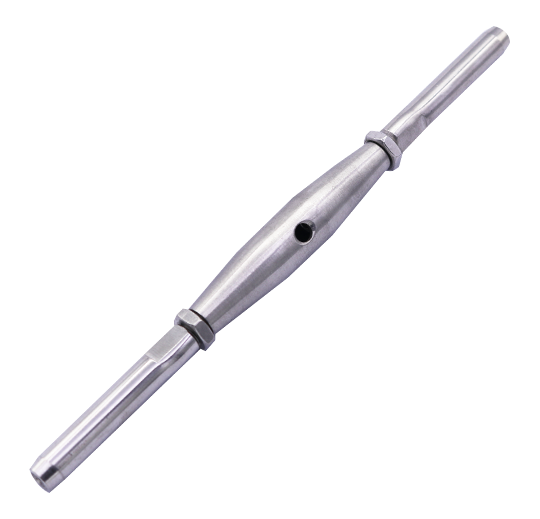

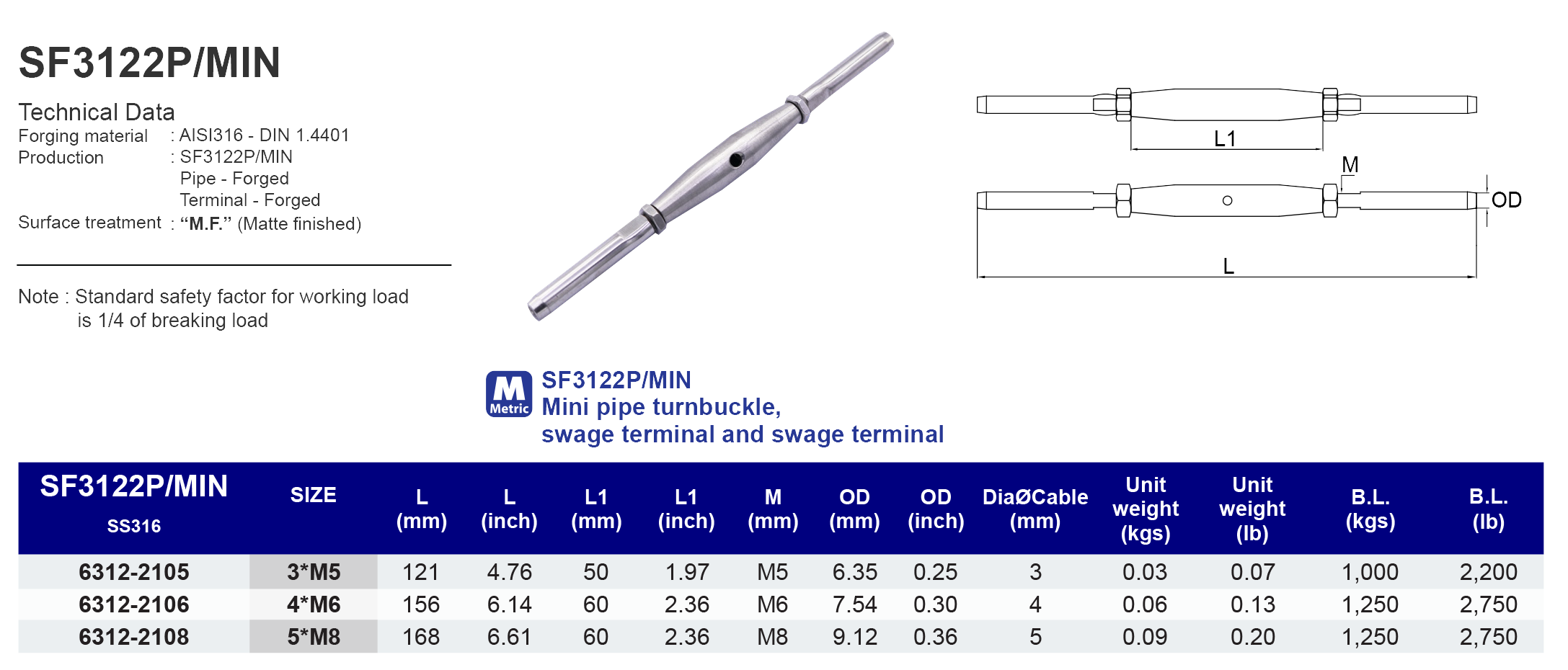

SF3122P/MIN Mini pipe turnbuckle, swage terminal and swage terminal

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF3122P / MIN                                                                                              Pipe - Forged
Terminal - Forged
Surface Treatment:  “M.F.” (Matte finished)                                                                          Note : Standard safety factor for working load
is 1/4 of breaking load

DATA SHEET DOWNLOAD
