Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF3121P / MIN Jaw - Forged
Terminal - Forged
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load.

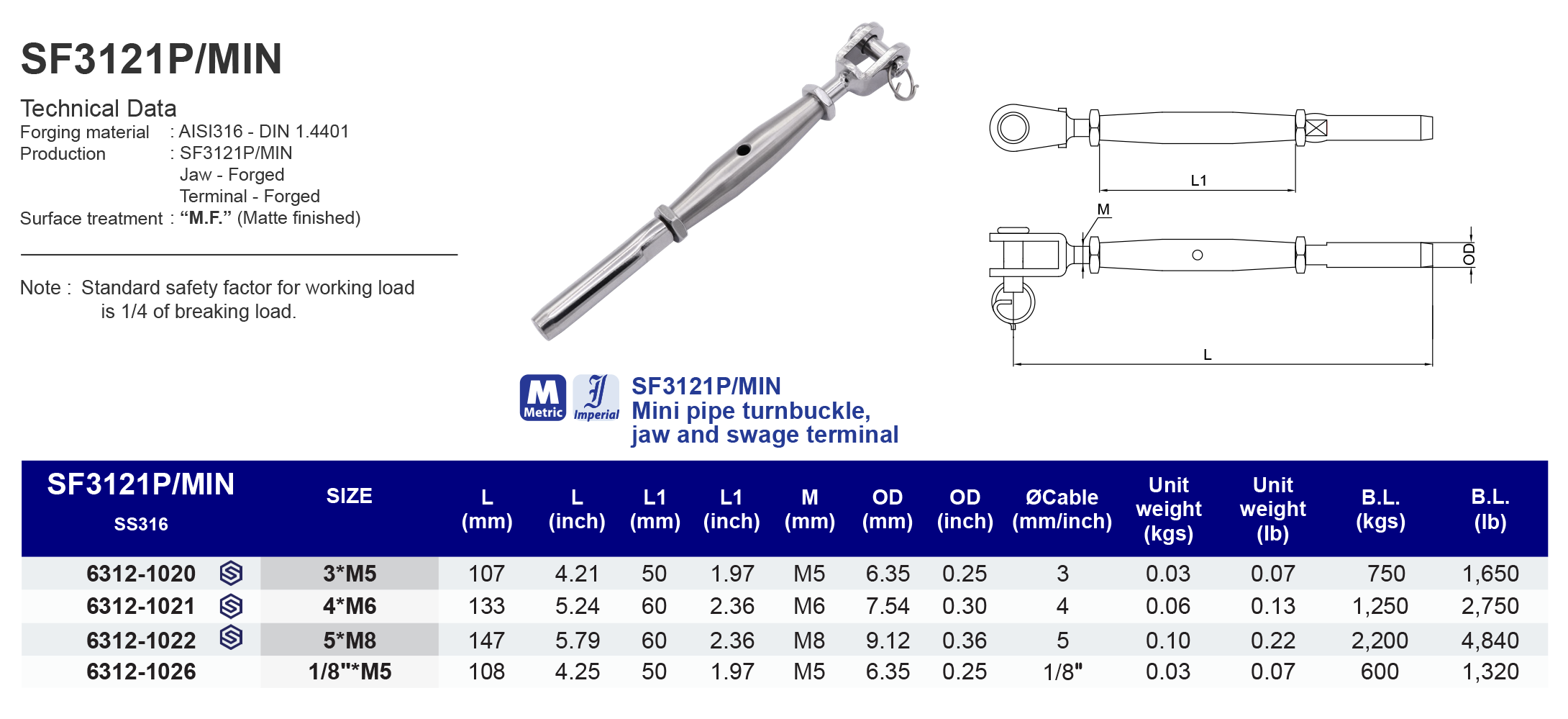

Model
SF3121P/MIN

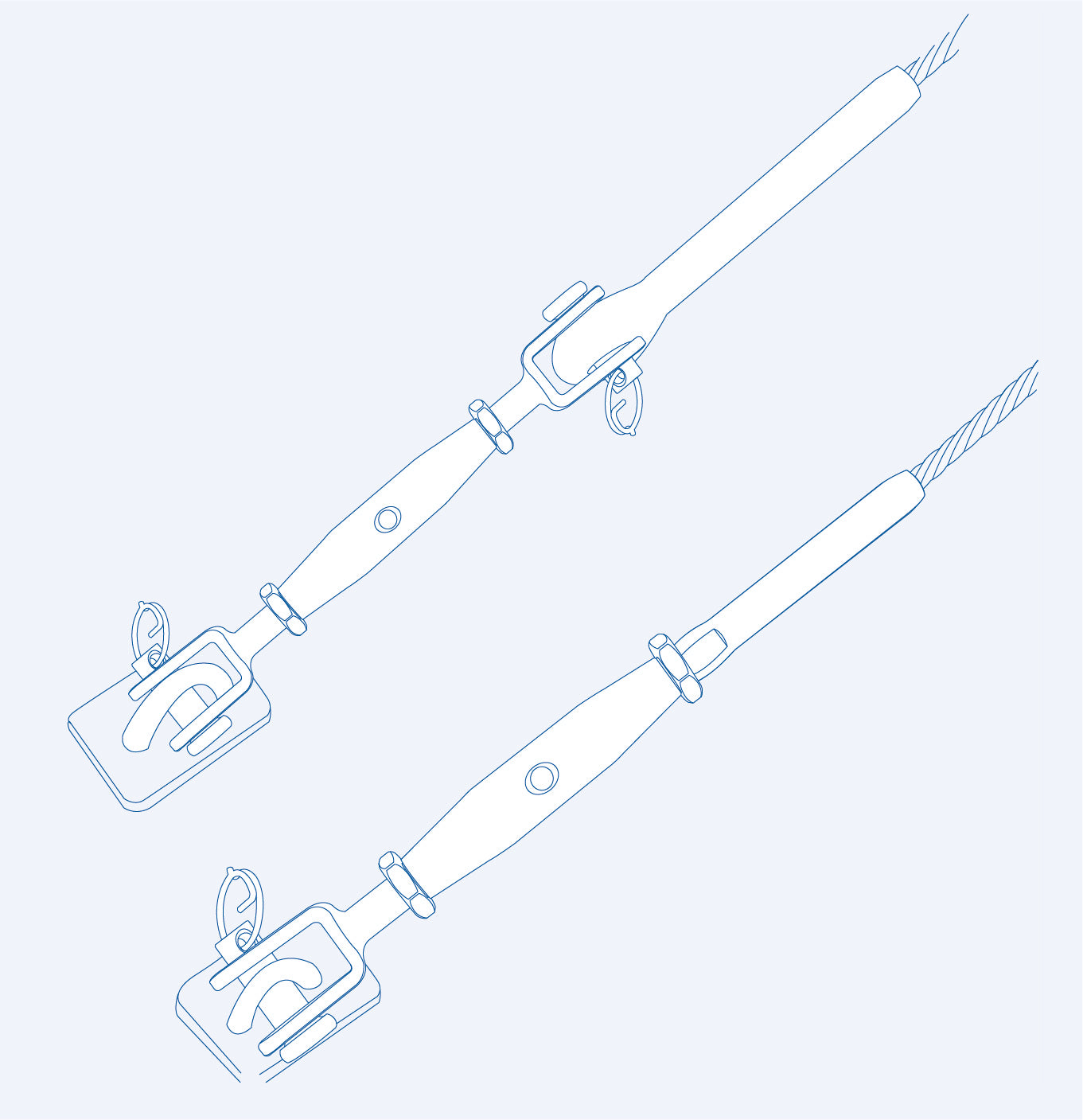

Mini pipe turnbuckle jaw and swage terminal
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | ØCable (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63121020 | 3*M5 | 107 | 50 | M5 | 3 | 0.03 | 750 |
| 63121021 | 4*M6 | 133 | 60 | M6 | 4 | 0.06 | 1,250 |
| 63121022 | 5*M8 | 147 | 60 | M8 | 5 | 0.10 | 2,200 |
| SS316 | Size | L (inch) | L1 (inch) | M (mm) | ØCable (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63121026 | 1/8"*M5 | 4.25 | 1.97 | M5 | 1/8" | 0.07 | 1,320 |
