Description
Technical Data:
Forging Material:
AISI304 - DIN 1.4301
Production:
SF308 - Ring - Welded
Surface Treatment:
Electro polished / Passivated
Model
SF308

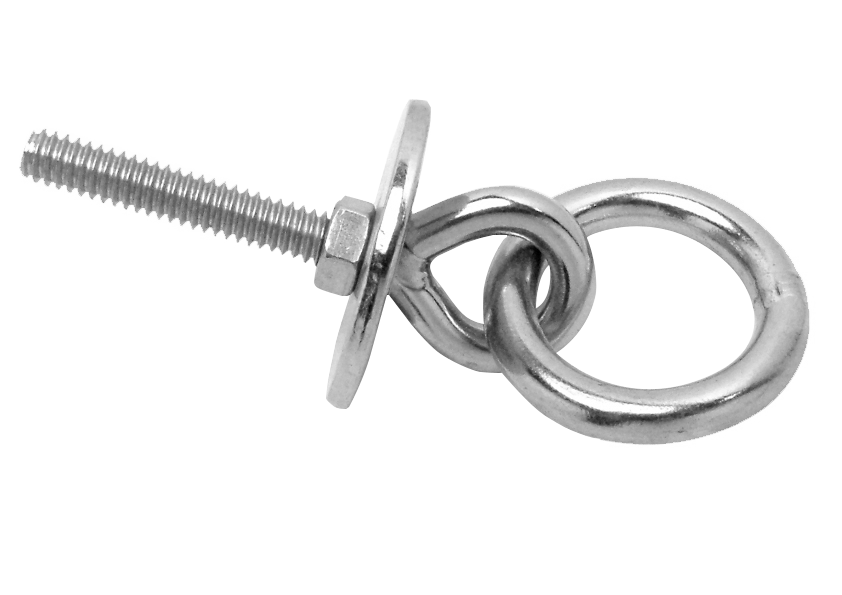

Lag Bolt (with wide washer and nut)
304 ss

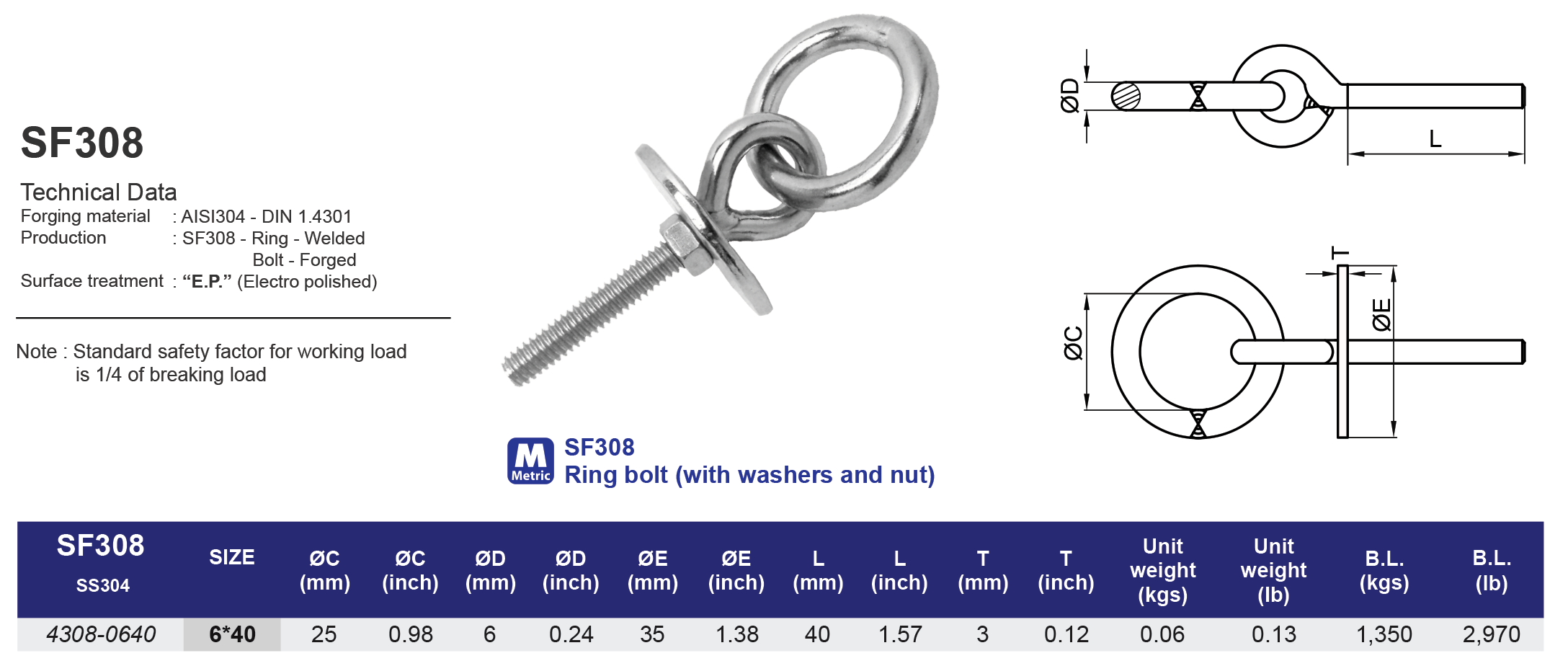

| SS304 | Size | ØC(mm) | ØD(mm) | ØE(mm) | L(mm) | T(mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 43080640 | 6*40 | 25 | 6 | 35 | 40 | 3 | 0.06 | 1,350 |
| SS304 | Size | ØC(inch) | ØD(inch) | ØE(inch) | L(inch) | T(inch) | Unit weight (Ib) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 43080640 | 6*40 | 0.98 | 0.24 | 1.38 | 1.57 | 0.12 | 0.13 | 2,970 |
