Description

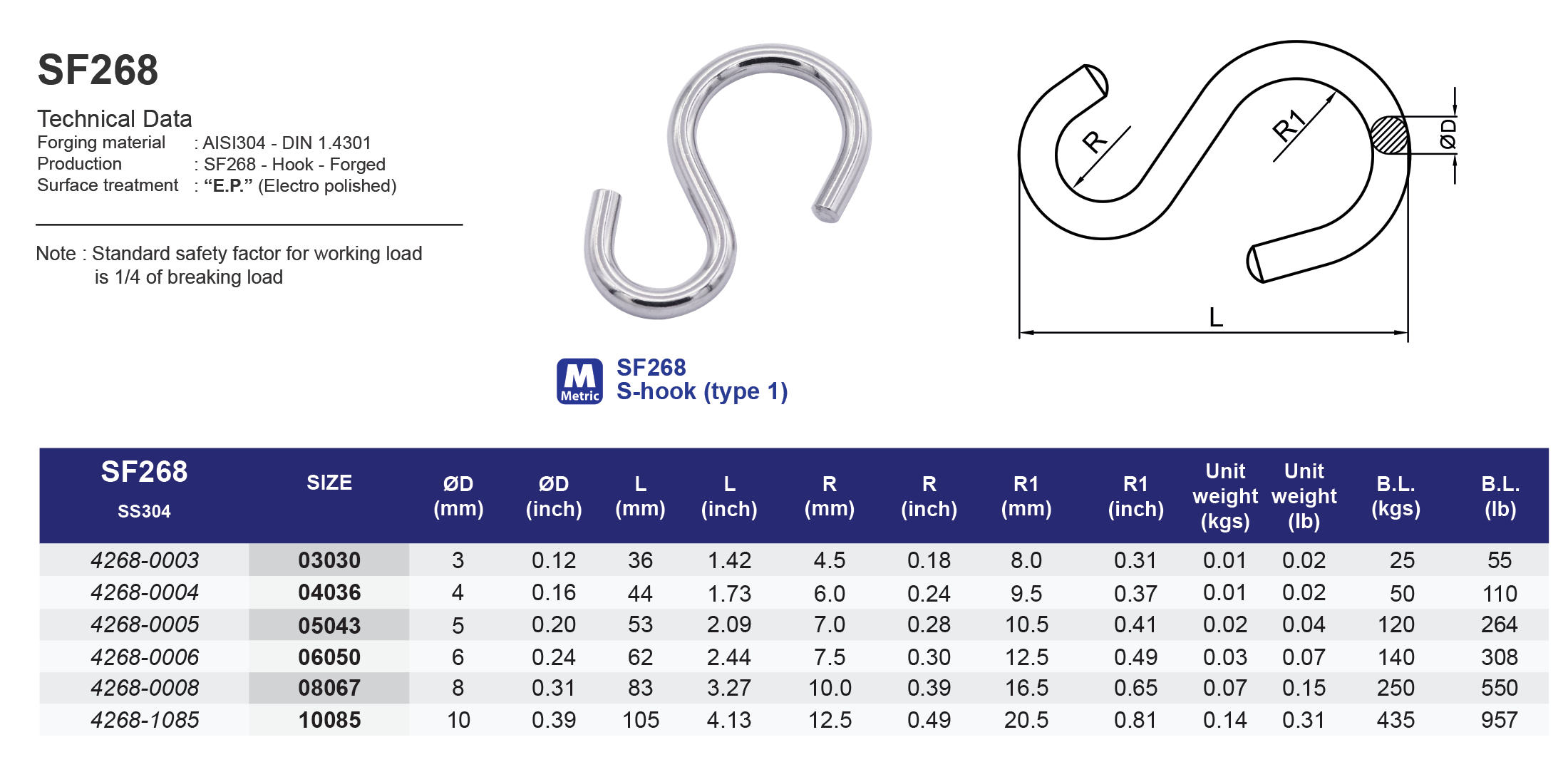

Technical Data
Forging Material : AISI304 - DIN 1.4301
Production : Hook - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
SF268

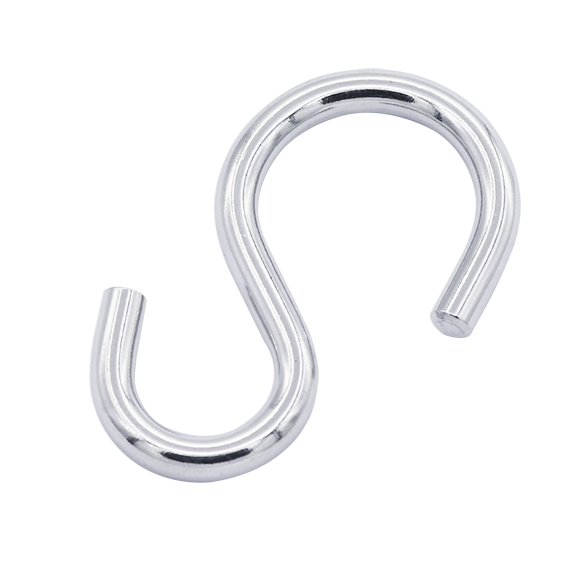

S-hook (type1)
304 ss
| SS304 | Size | ØD (mm) | L (mm) | R (mm) | R1 (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 42680003 | 03030 | 3 | 36 | 4.5 | 8.0 | 0.01 | 25 |
| 42680004 | 04036 | 4 | 44 | 6.0 | 9.5 | 0.01 | 50 |
| 42680005 | 05043 | 5 | 53 | 7.0 | 10.5 | 0.02 | 120 |
| 42680006 | 06050 | 6 | 62 | 7.5 | 12.5 | 0.03 | 140 |
| 42680008 | 08067 | 8 | 83 | 10.0 | 16.5 | 0.07 | 250 |
| 42681085 | 10085 | 10 | 105 | 12.5 | 20.5 | 0.14 | 435 |
| SS304 | Size | ØD (inch) | L (inch) | R (inch) | R1 (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 42680003 | 1/8" x 1-1/8" | 0.12 | 1.42 | 0.18 | 0.31 | 0.02 | 55 |
| 42680004 | 5/32" x 1-1/4" | 0.16 | 1.73 | 0.24 | 0.37 | 0.02 | 110 |
| 42680005 | 3/16" x 1-1/2" | 0.20 | 2.09 | 0.28 | 0.41 | 0.04 | 264 |
| 42680006 | 1/4" x 2" | 0.24 | 2.44 | 0.30 | 0.49 | 0.07 | 308 |
| 42680008 | 5/16" x 2-9/16" | 0.31 | 3.27 | 0.39 | 0.65 | 0.15 | 550 |
| 42681085 | 3" x 5/16" | 0.39 | 4.13 | 0.49 | 0.81 | 0.31 | 957 |
