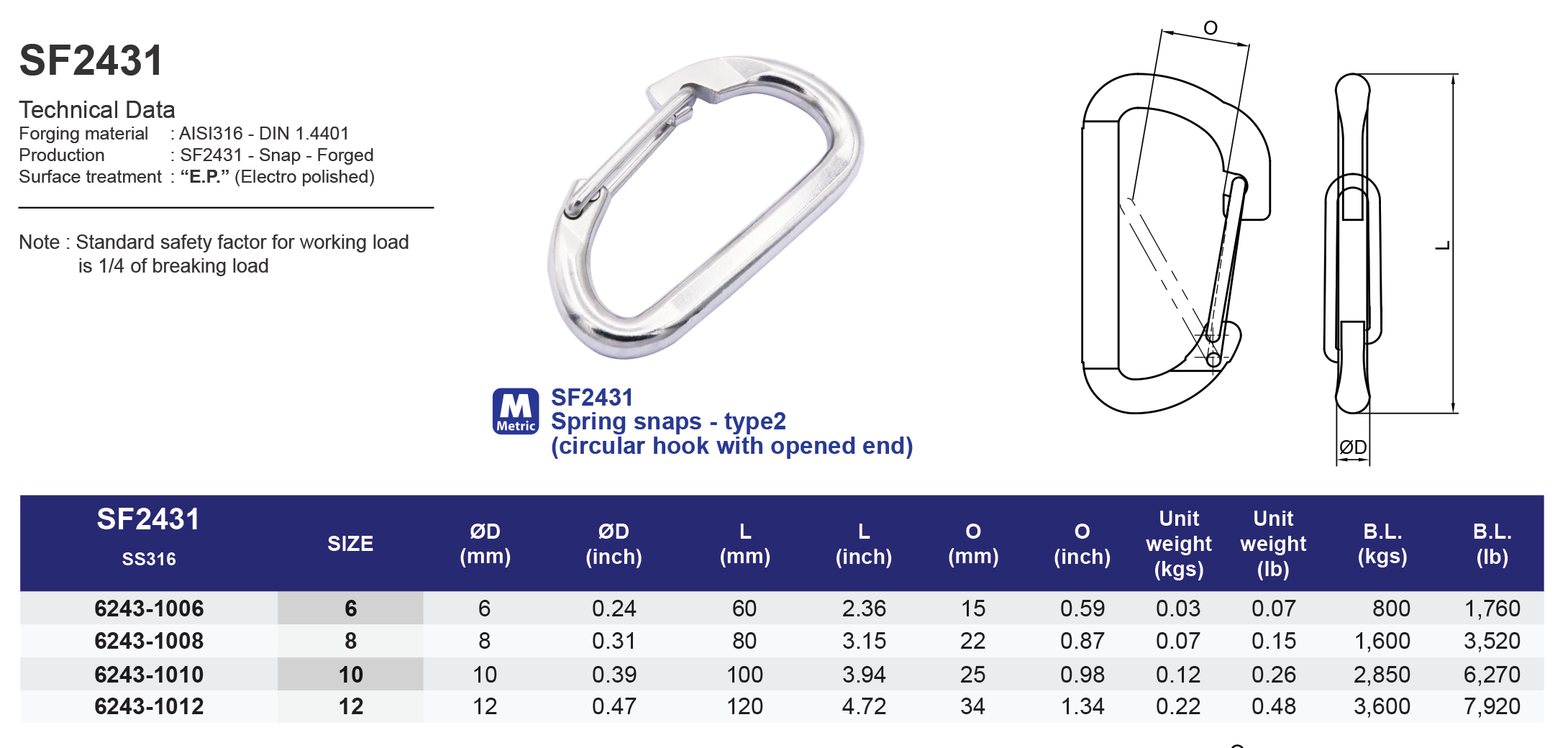

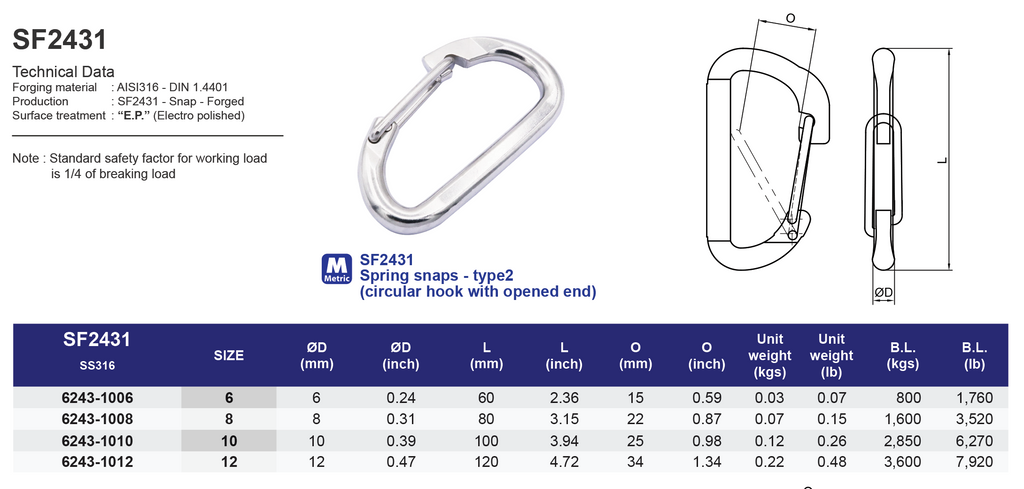

SF2431 Spring snaps - type 2 (circular hook with opened end)

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF2431 - Snap - Forged
Surface Treatment:“E.P.” (Electro polished)                                                                    Note : Standard safety factor for working load
is 1/4 of breaking load
