Description

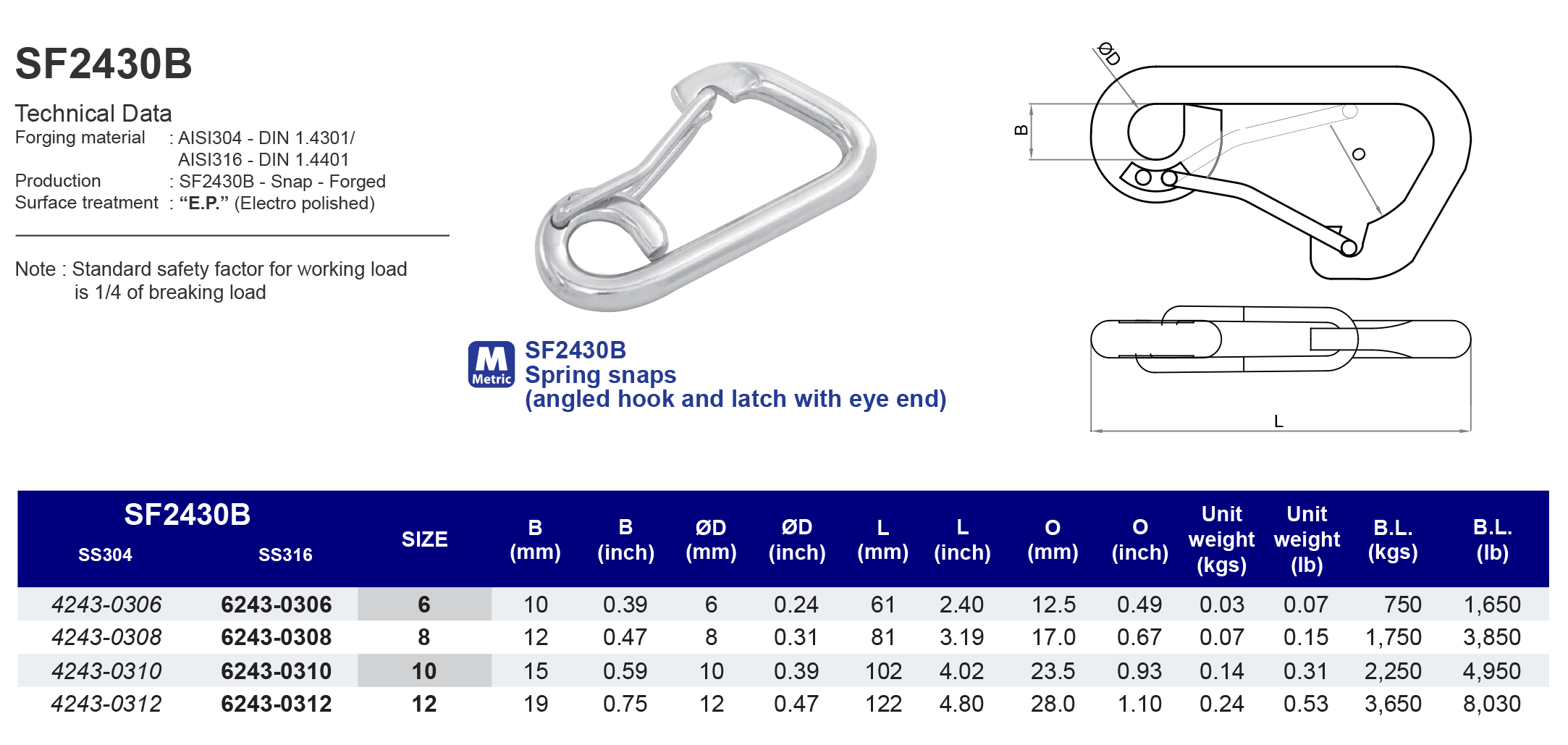

Technical Data:
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: SF2430B - Snap - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF2430B

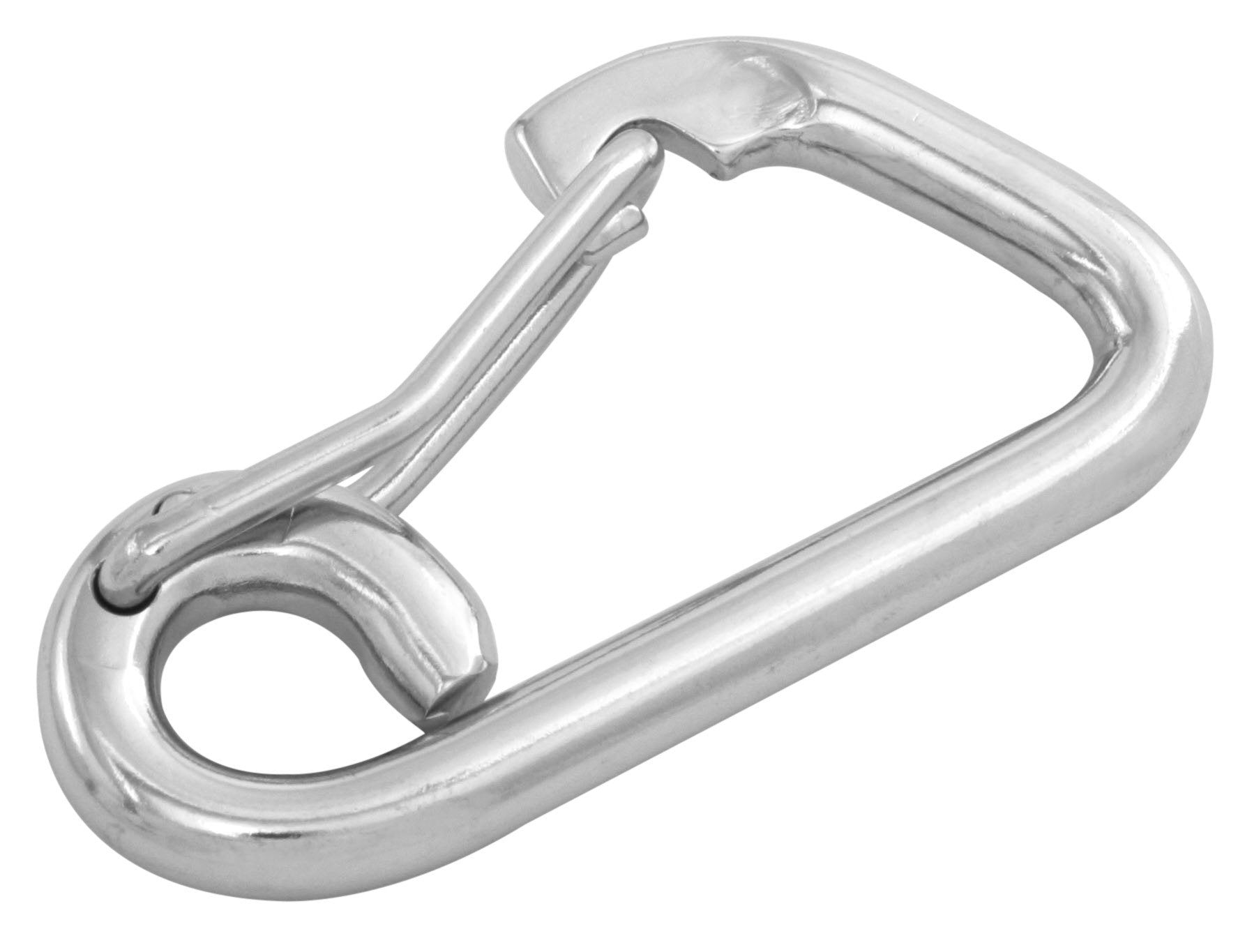

Spring snaps (angled hook and latch with eye end)
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 42430306 | 6 | 10 | 6 | 61 | 12.5 | 0.03 | 750 |
| 42430308 | 8 | 12 | 8 | 81 | 17.0 | 0.07 | 1,750 |
| 42430310 | 10 | 15 | 10 | 102 | 23.5 | 0.14 | 2,250 |
| 42430312 | 12 | 19 | 12 | 122 | 28.0 | 0.24 | 3,650 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 42430306 | 1/4" | 0.39 | 0.24 | 2.40 | 0.49 | 0.07 | 1,650 |
| 42430308 | 5/16" | 0.47 | 0.31 | 3.19 | 0.67 | 0.15 | 3,850 |
| 42430310 | 3/8" | 0.59 | 0.39 | 4.02 | 0.93 | 0.31 | 4,950 |
| 42430312 | 1/2" | 0.75 | 0.47 | 4.80 | 1.10 | 0.53 | 8,030 |
