Description
Technical Data:
Forging Material:
AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production:
SF24302B - Snap - Forged
Surface Treatment:
Electro polished / Passivated
Model
SF24302B

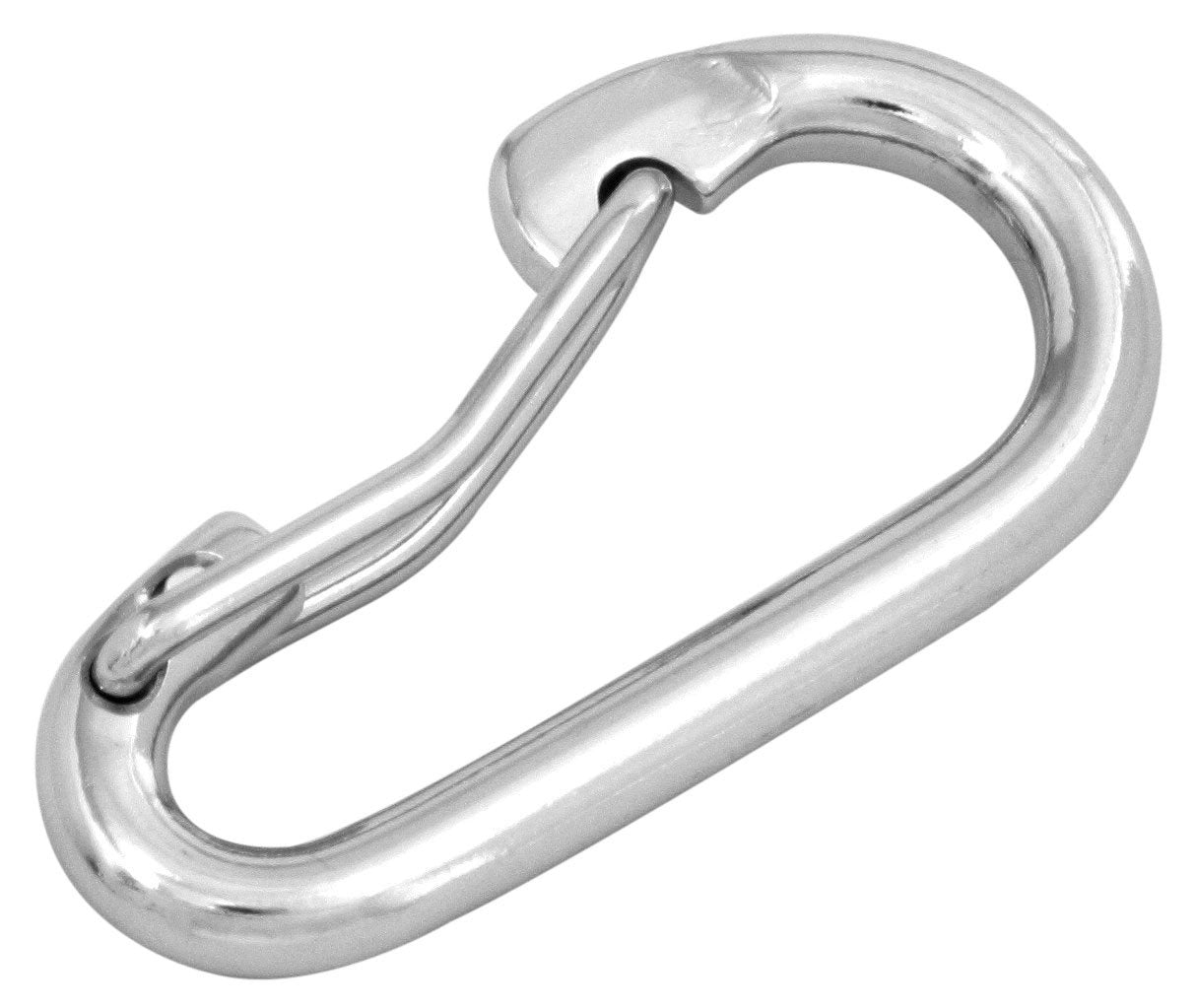

Spring Snaps (circular hook with angled latch)
316 ss
| SS316 | Size | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 6243-1206 | 6 | 6 | 60 | 14 | 0.03 | 830 |
| 6243-1208 | 8 | 8 | 80 | 20 | 0.07 | 1,600 |
| 6243-0211 | 10 | 10 | 100 | 24 | 0.12 | 2,500 |
| 6243-1212 | 12 | 12 | 120 | 29 | 0.14 | 3,300 |
| SS316 | Size | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 6243-1206 | 6 | 0.24 | 2.36 | 0.55 | 0.07 | 1,826 |
| 6243-1208 | 8 | 0.31 | 3.15 | 0.79 | 0.15 | 3,520 |
| 6243-0211 | 10 | 0.39 | 3.94 | 0.94 | 0.26 | 5,500 |
| 6243-1212 | 12 | 0.47 | 4.72 | 1.14 | 0.31 | 7,260 |
