Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: SF24302 - Snap - Forged
Surface Treatment: “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model

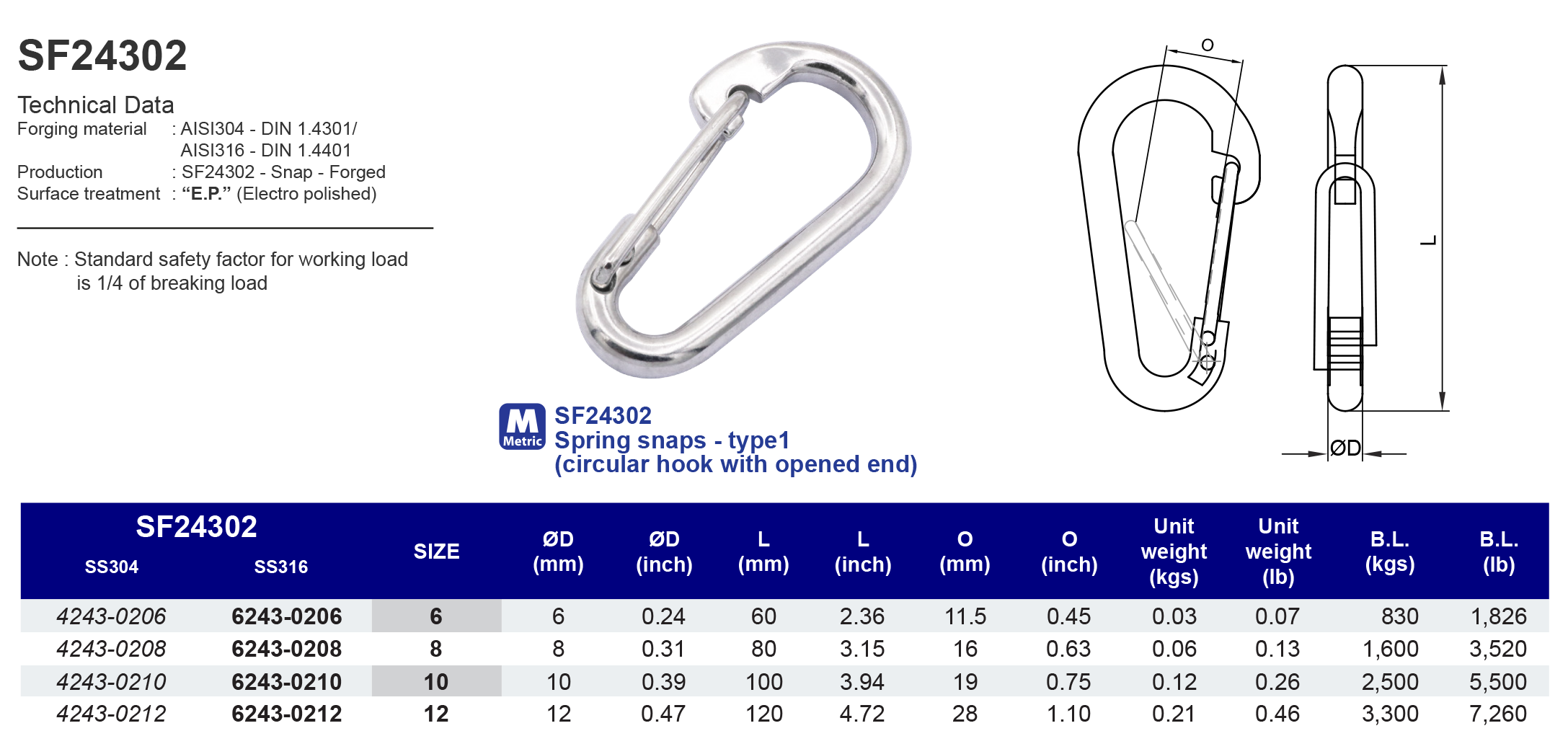

SF24302

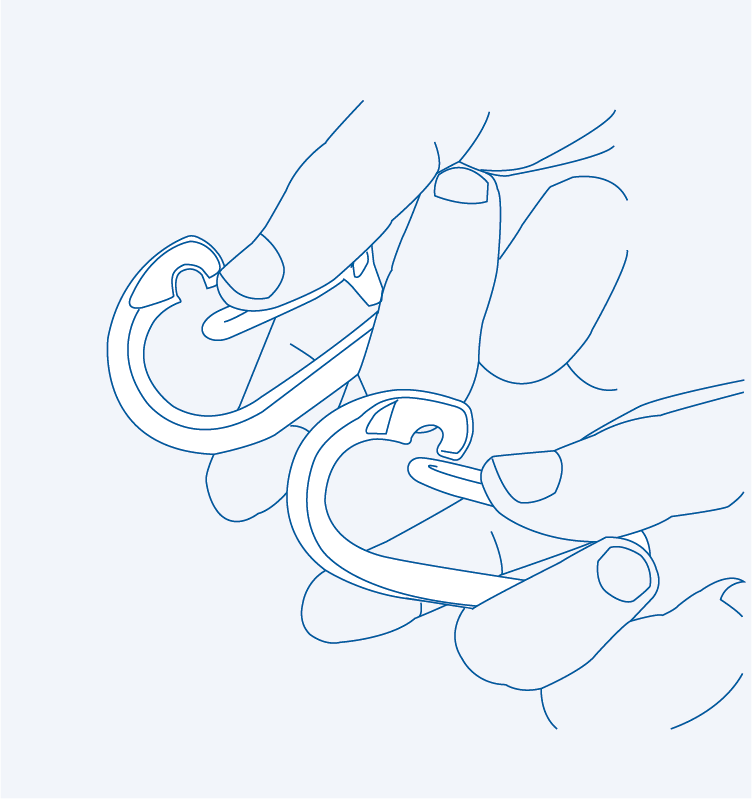

Spring snaps - type1 (circular hook with opened end)
304 ss
| SS304 | Size | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 42430206 | 6 | 6 | 60 | 12 | 0.03 | 830 |
| 42430208 | 8 | 8 | 80 | 16 | 0.06 | 1,600 |
| 42430210 | 10 | 10 | 100 | 19 | 0.12 | 2,500 |
| 42430212 | 12 | 12 | 120 | 28 | 0.21 | 3,300 |
| SS304 | Size | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 42430206 | 1/4" | 0.24 | 2.36 | 0.45 | 0.07 | 1,826 |
| 42430208 | 5/16" | 0.31 | 3.15 | 0.63 | 0.13 | 3,520 |
| 42430210 | 3/8" | 0.39 | 3.94 | 0.75 | 0.26 | 5,500 |
| 42430212 | 1/2" | 0.47 | 4.72 | 1.10 | 0.46 | 7,260 |
