Description

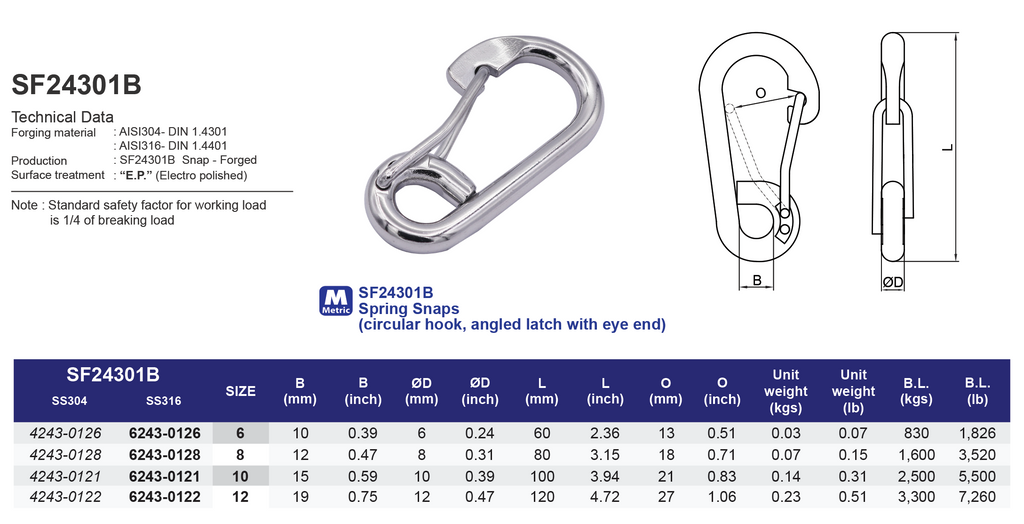

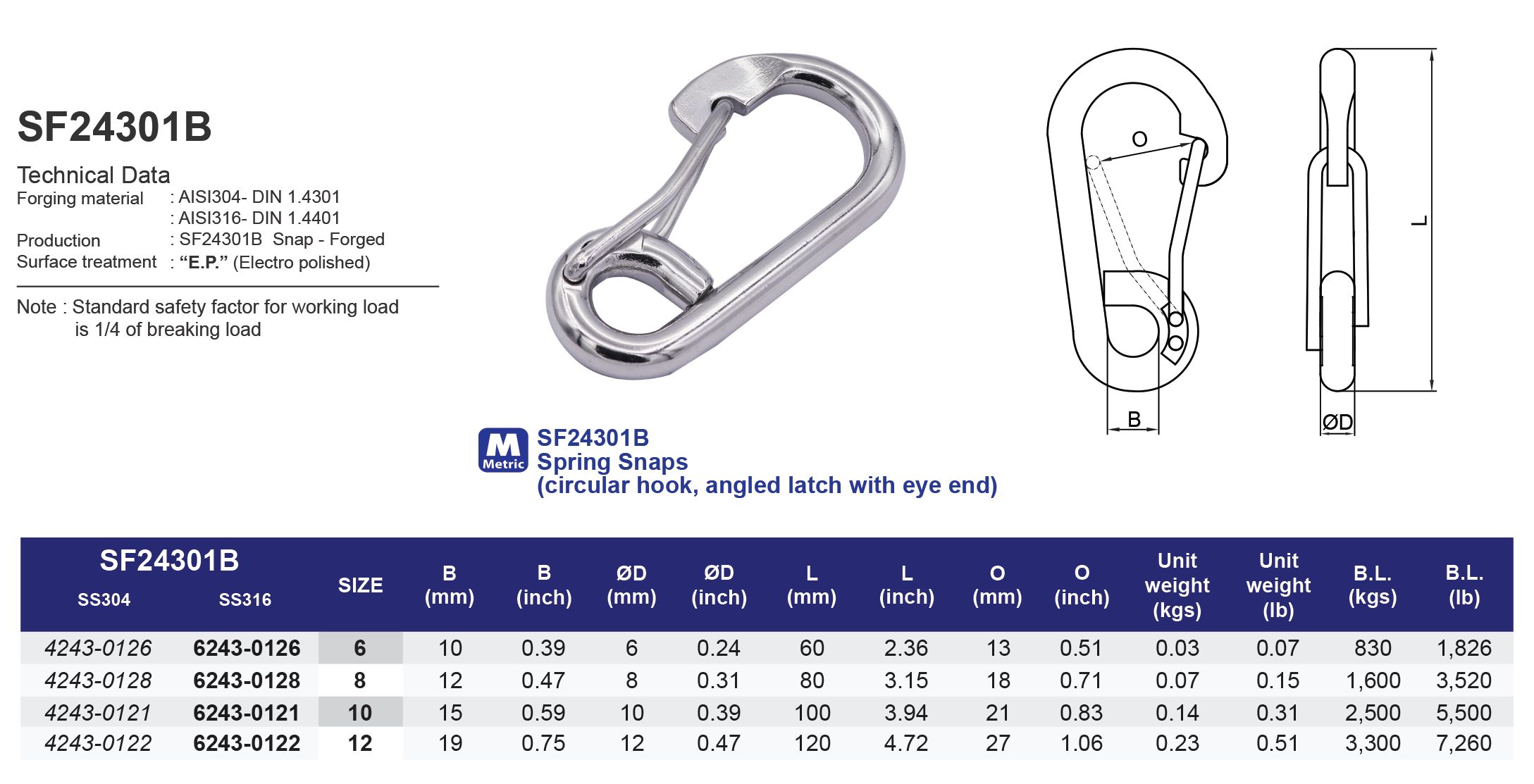

Technical Data:
Forging Material:
AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production:
SF24301B - Snap - Forged
Surface Treatment:
Electro polished / Passivated
Model
SF24302B

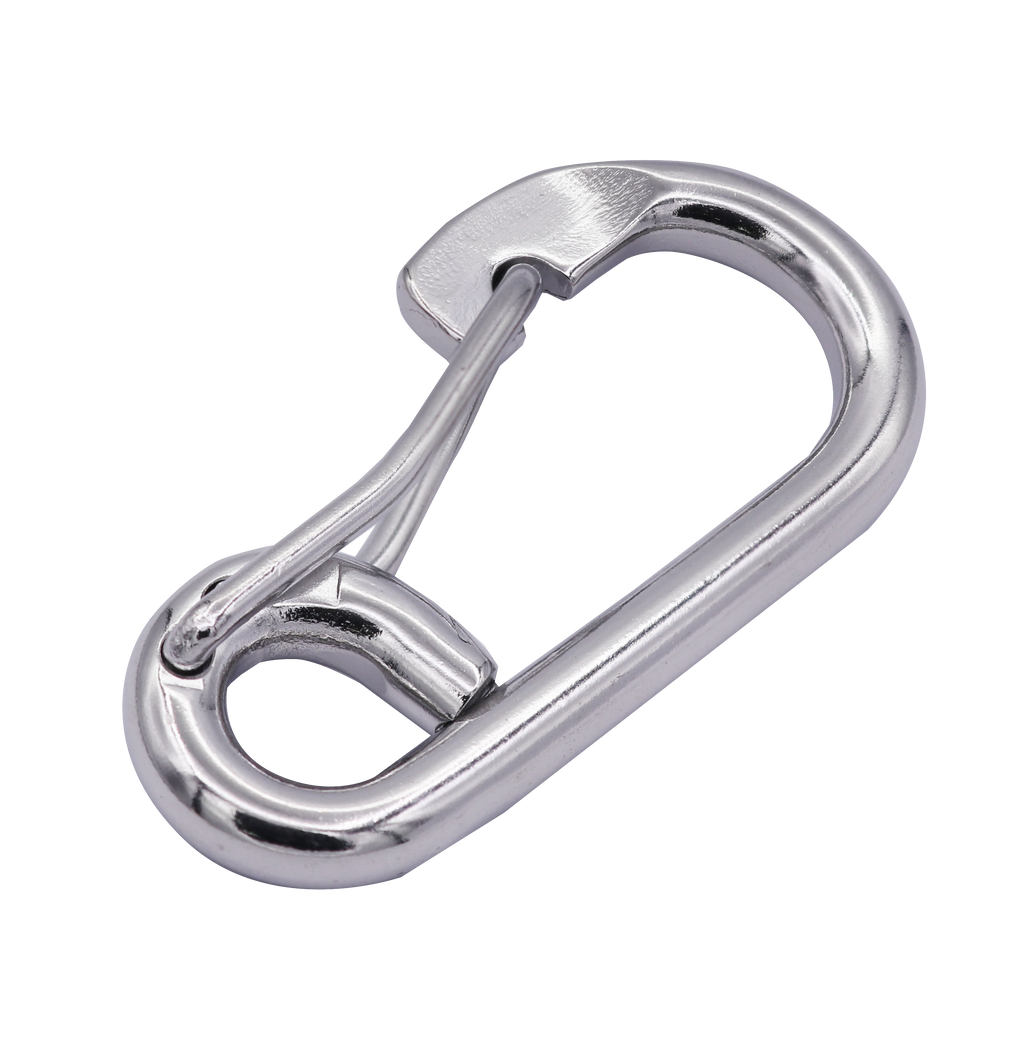

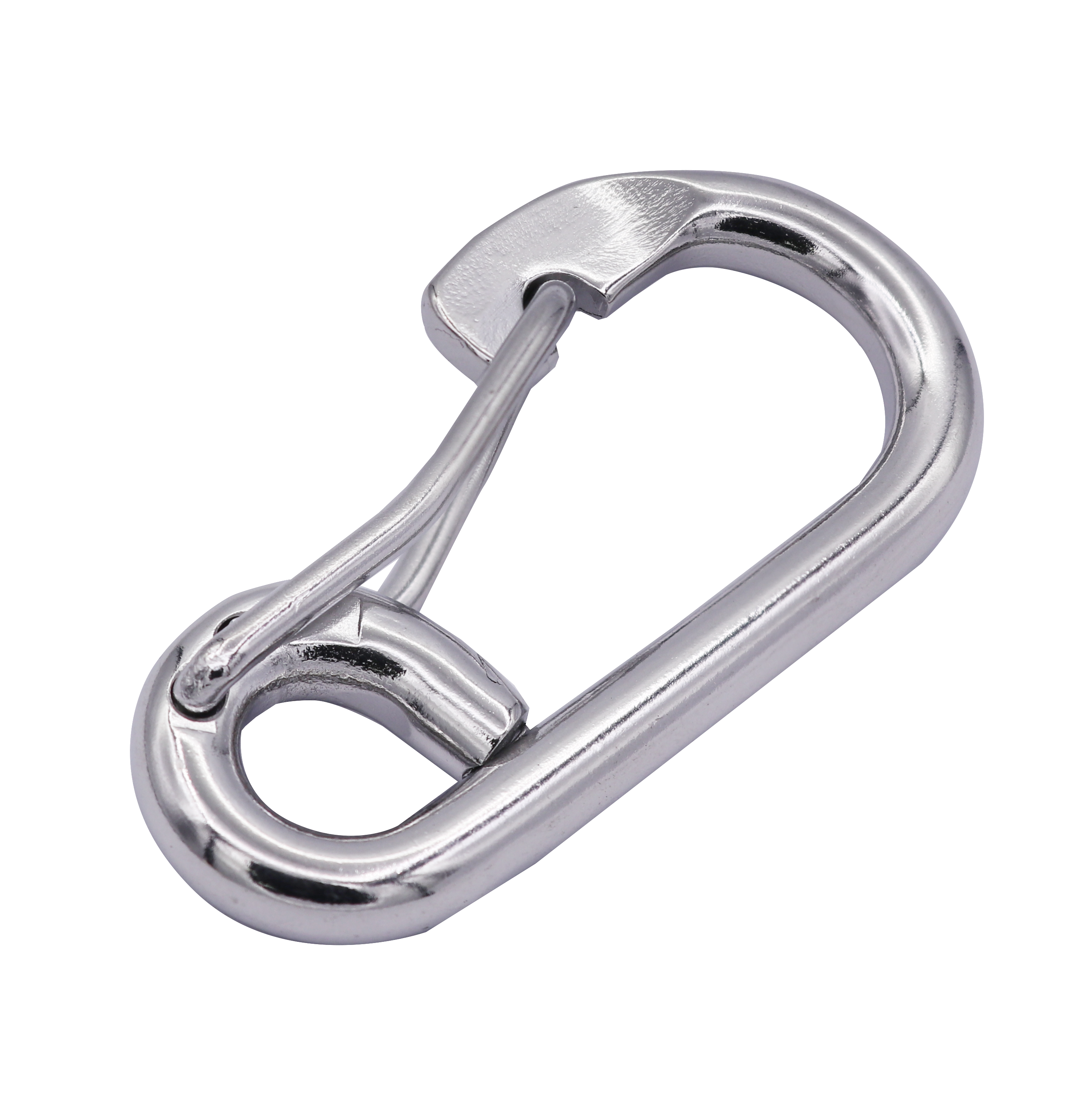

Spring Snaps (circular hook with angled latch)
304 ss
| SS304 | Size | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 4243-1206 | 6 | 6 | 60 | 14 | 0.03 | 830 |
| 4243-1208 | 8 | 8 | 80 | 20 | 0.07 | 1,600 |
| SS304 | Size | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 4243-1206 | 6 | 0.24 | 2.36 | 0.55 | 0.07 | 1,826 |
| 4243-1208 | 8 | 0.31 | 3.15 | 0.79 | 0.15 | 3,520 |
