Description
Technical Data:
Forging Material:
AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production:
SF24301B - Snap - Forged
Surface Treatment:
Electro polished / Passivated

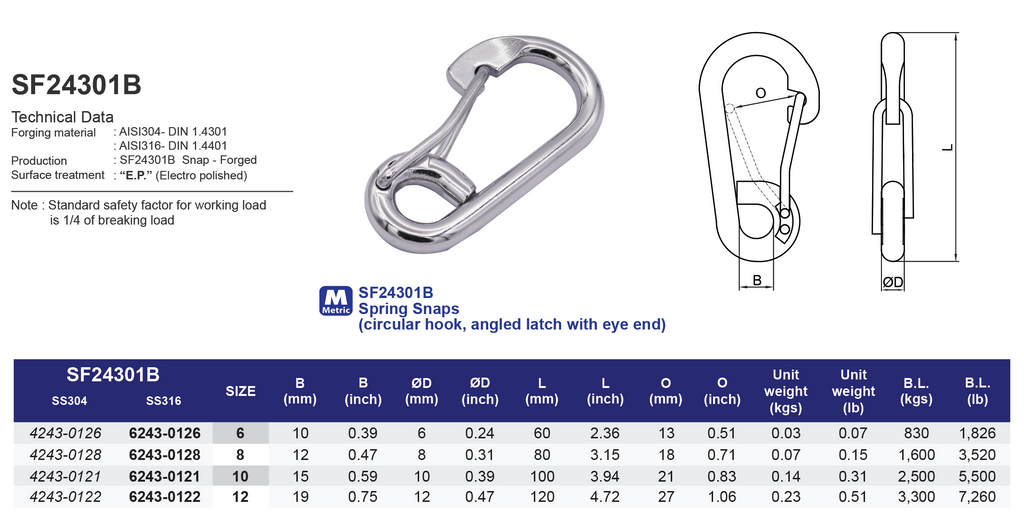

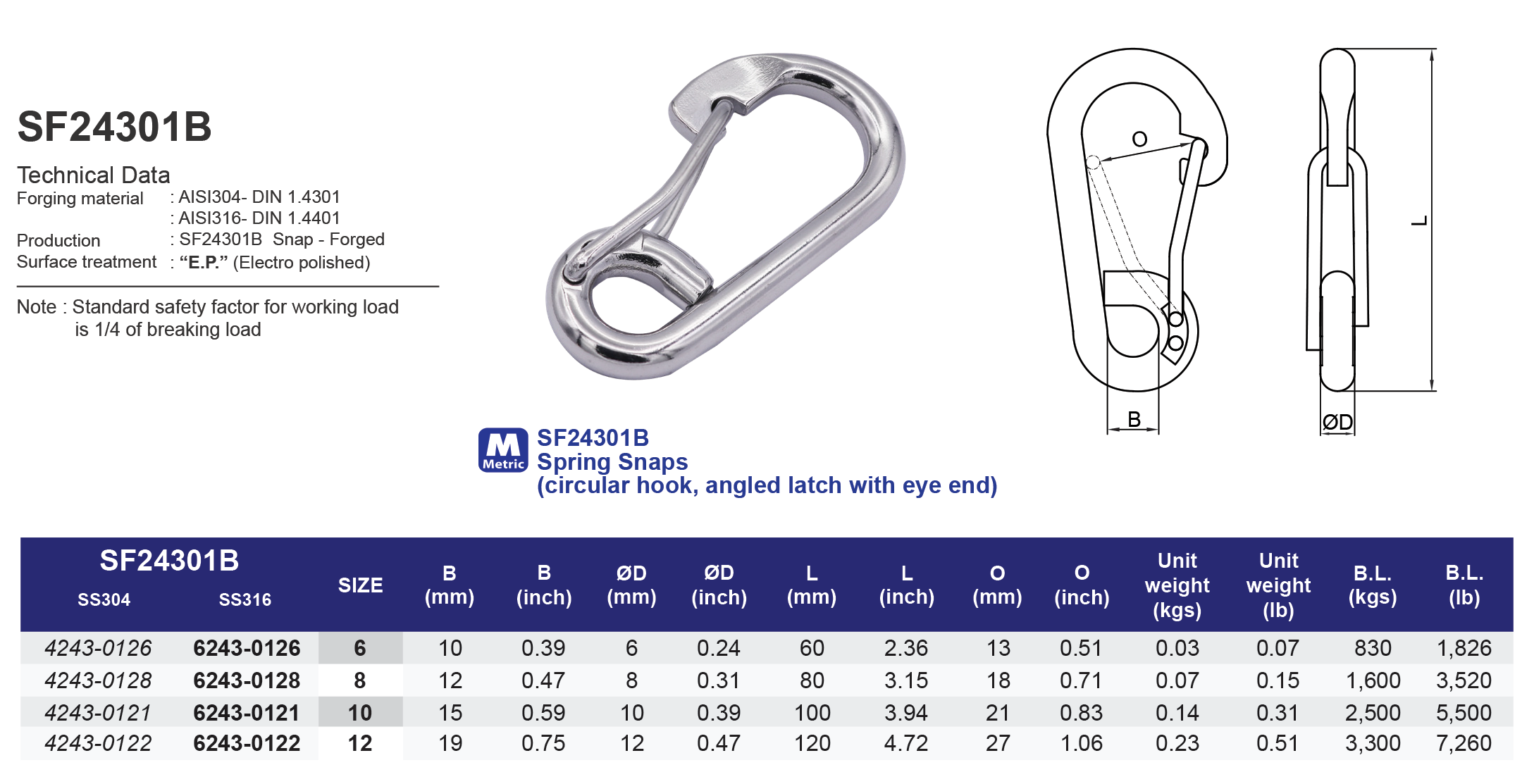

Model
SF24301B

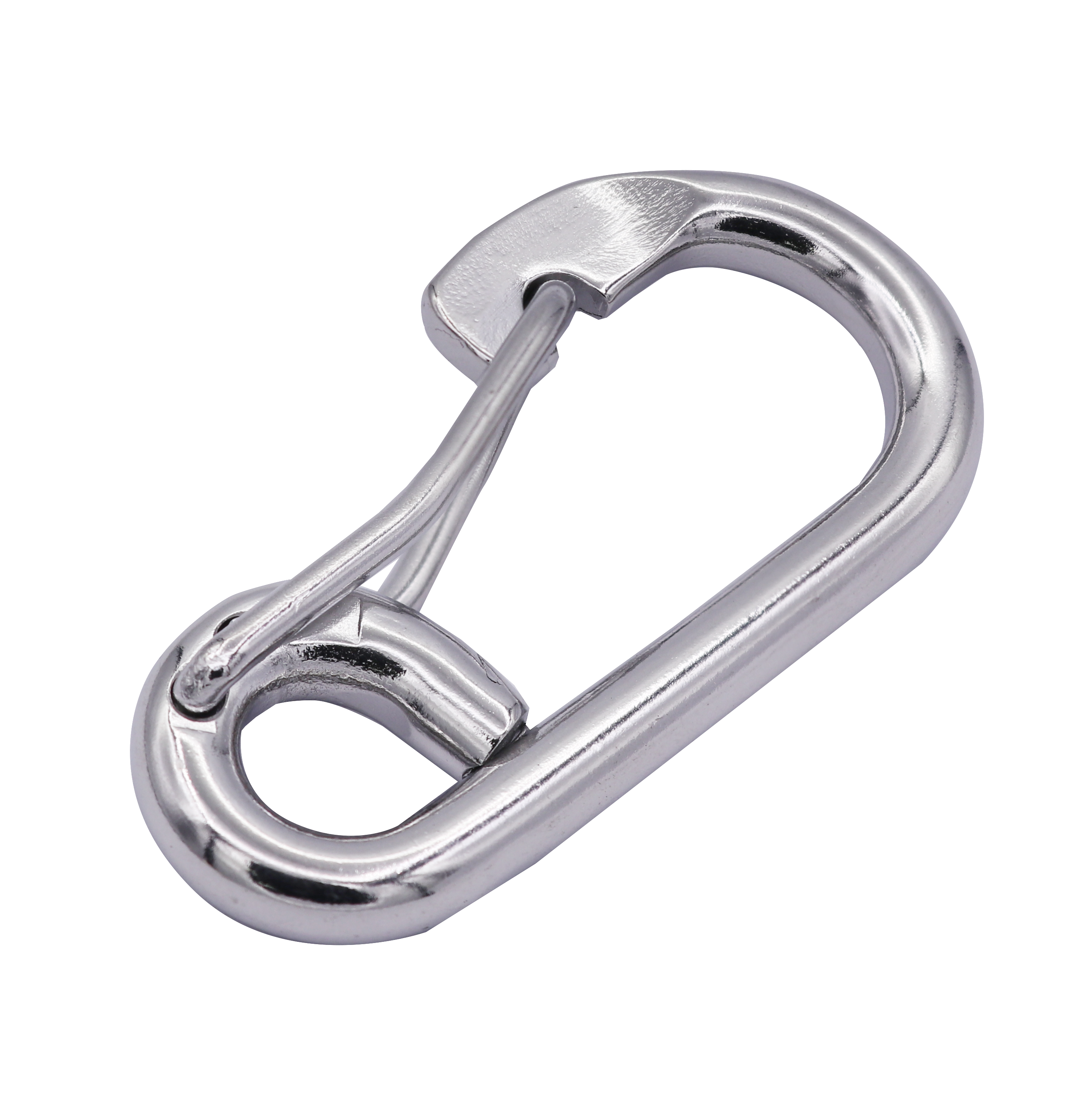

Spring Snaps (circular hook, angled latch with eye end)
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 4243-0126 | 6 | 10 | 6 | 60 | 13 | 0.03 | 830 |
| 4243-0128 | 8 | 12 | 8 | 80 | 18 | 0.07 | 1,600 |
| 4243-0121 | 10 | 15 | 10 | 100 | 21 | 0.14 | 2,500 |
| 4243-0122 | 12 | 19 | 12 | 120 | 27 | 0.23 | 3,300 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 4243-0126 | 6 | 0.39 | 0.24 | 2.36 | 0.51 | 0.07 | 1,826 |
| 4243-0128 | 8 | 0.47 | 0.31 | 3.15 | 0.71 | 0.15 | 3,520 |
| 4243-0121 | 10 | 0.59 | 0.39 | 3.94 | 0.83 | 0.31 | 5,500 |
| 4243-0122 | 12 | 0.75 | 0.47 | 4.72 | 1.06 | 0.51 | 7,260 |
