Description

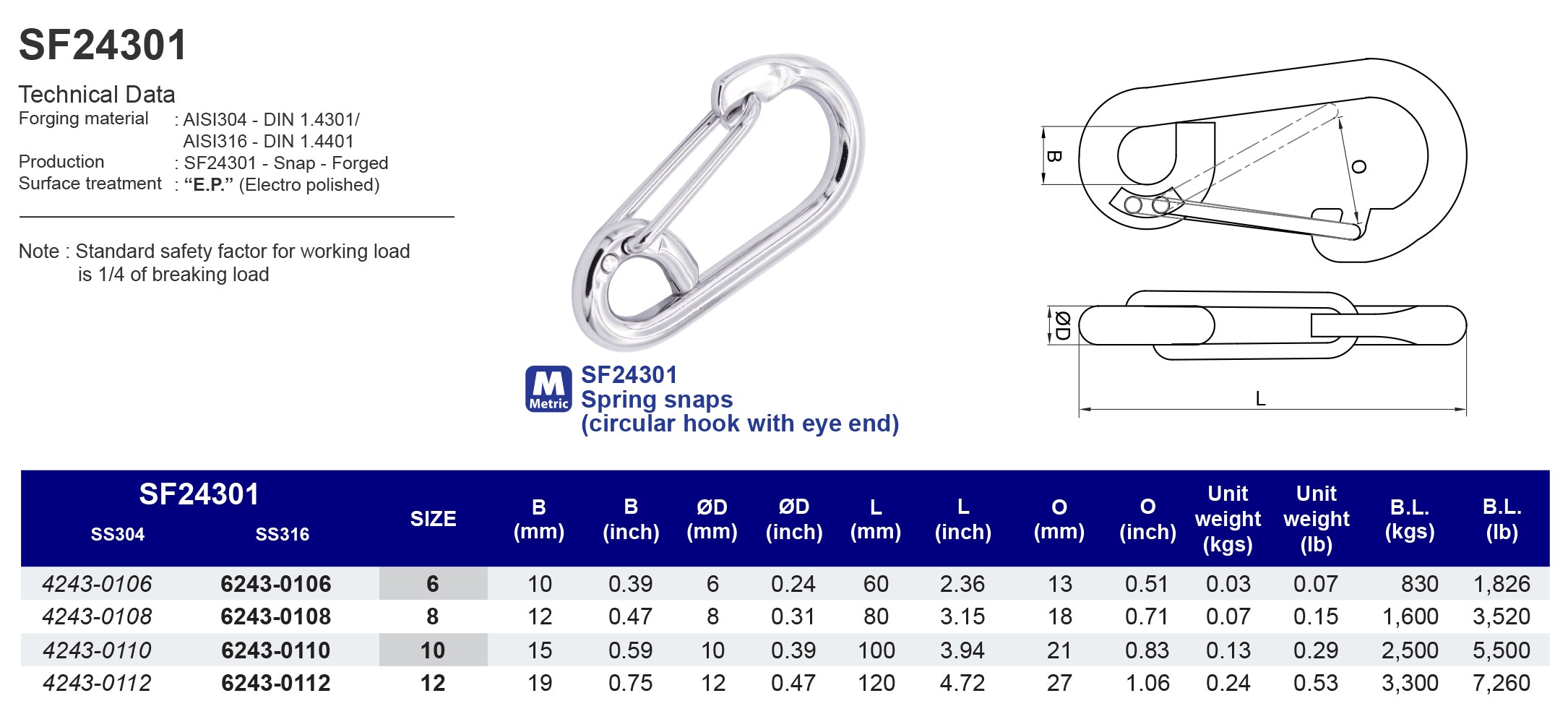

Technical Data:
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: SF24301 - Snap - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
SF24301

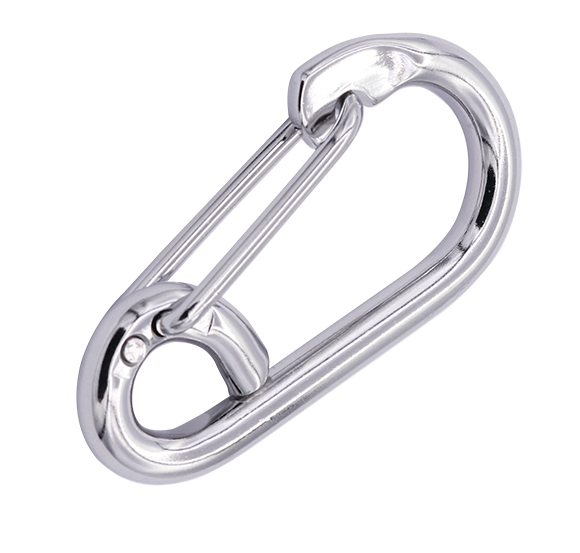

Spring snaps (circular hook with eye end)
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 42430106 | 6 | 10 | 6 | 60 | 13 | 0.03 | 830 |
| 42430108 | 8 | 12 | 8 | 80 | 18 | 0.07 | 1,600 |
| 42430110 | 10 | 15 | 10 | 100 | 21 | 0.13 | 2,500 |
| 42430112 | 12 | 19 | 12 | 120 | 27 | 0.24 | 3,300 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 42430106 | 1/4" | 0.39 | 0.24 | 2.36 | 0.51 | 0.07 | 1,826 |
| 42430108 | 5/16" | 0.47 | 0.31 | 3.15 | 0.71 | 0.15 | 3,520 |
| 42430110 | 3/8" | 0.59 | 0.39 | 3.94 | 0.83 | 0.29 | 5,500 |
| 42430112 | 1/2" | 0.75 | 0.47 | 4.72 | 1.06 | 0.53 | 7,260 |
