SF234R Round thimble - 304
SF234R Round thimble - 304
SF234R Round thimble - 304
Roll over image to zoom in Click on image to zoom
SF234R Round thimble - 304SF234R Round thimble - 304SF234R Round thimble - 304

SF234R Round thimble - 304

SKU: 42341250
Size (mm): 12.5mm
Price:
$1.76

Looking for B2B pricing? Apply for a B2B account

Stock:
Sold out (Available to manufacture)
Log in to Add to Cart

Description

Technical Data:
Forging material : AISI304 - DIN 1.4301
Production : SF234R - Ring - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load is1/4 of breaking load DATA SHEET DOWNLOAD

Model

SF234R

Round thimble
304 ss

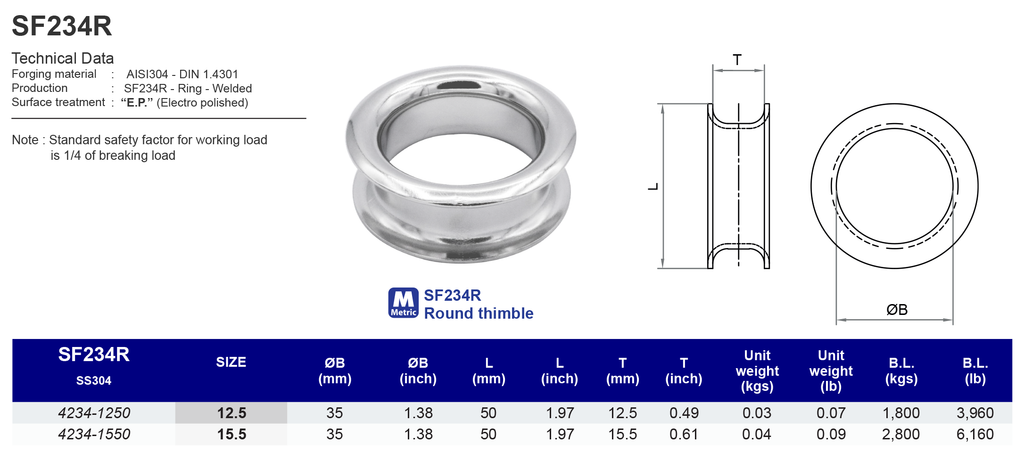

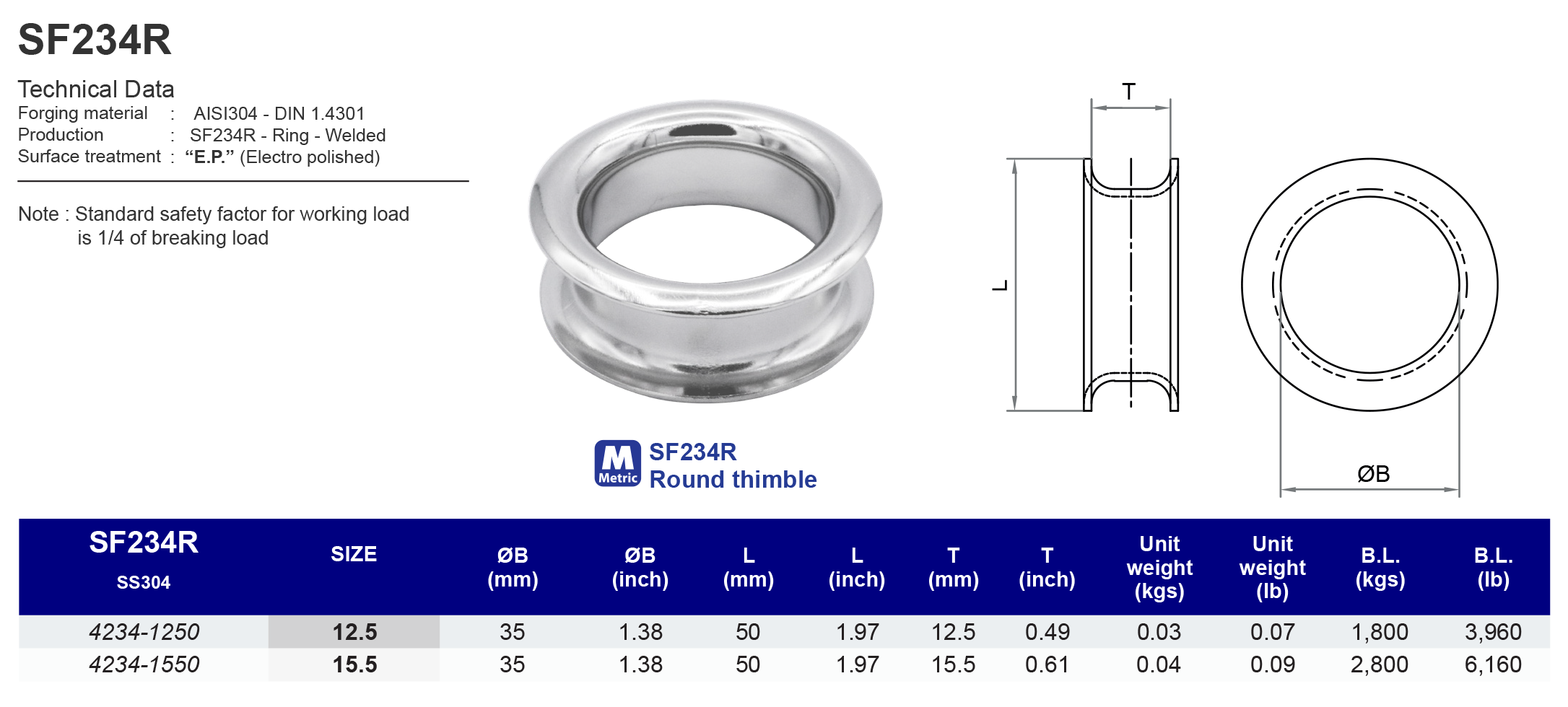

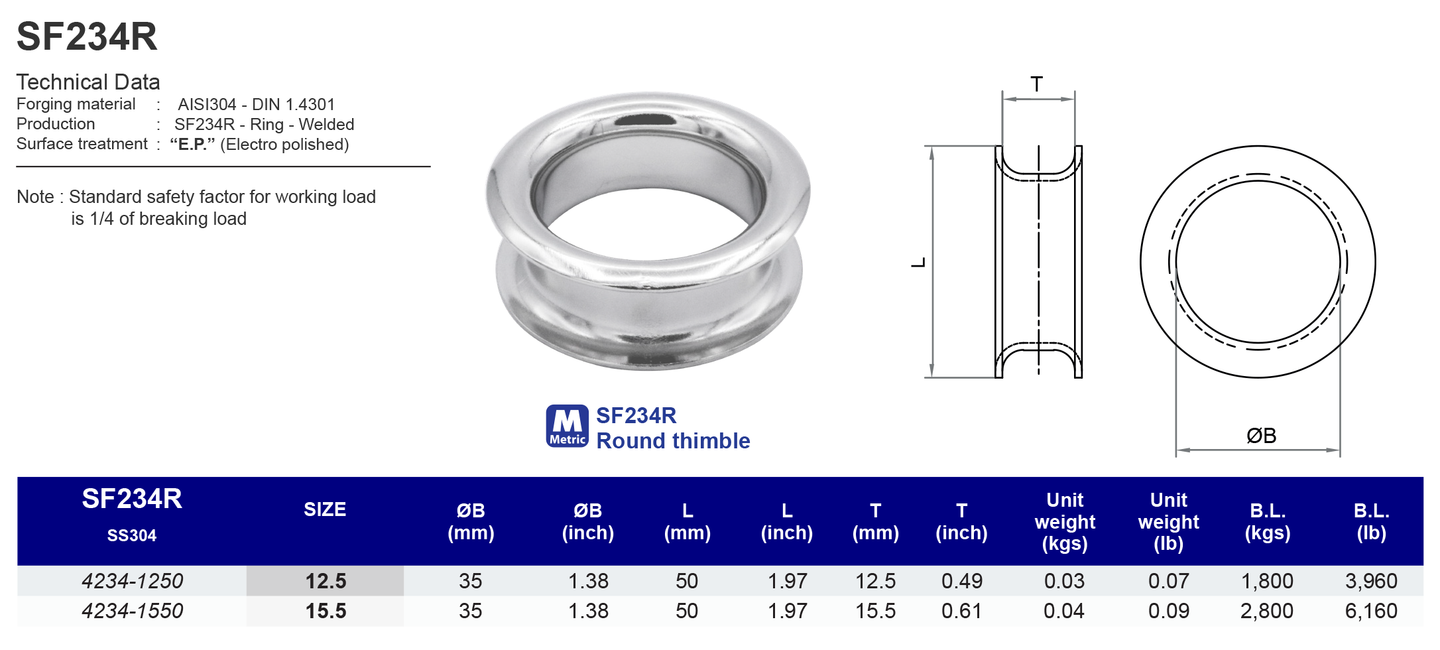

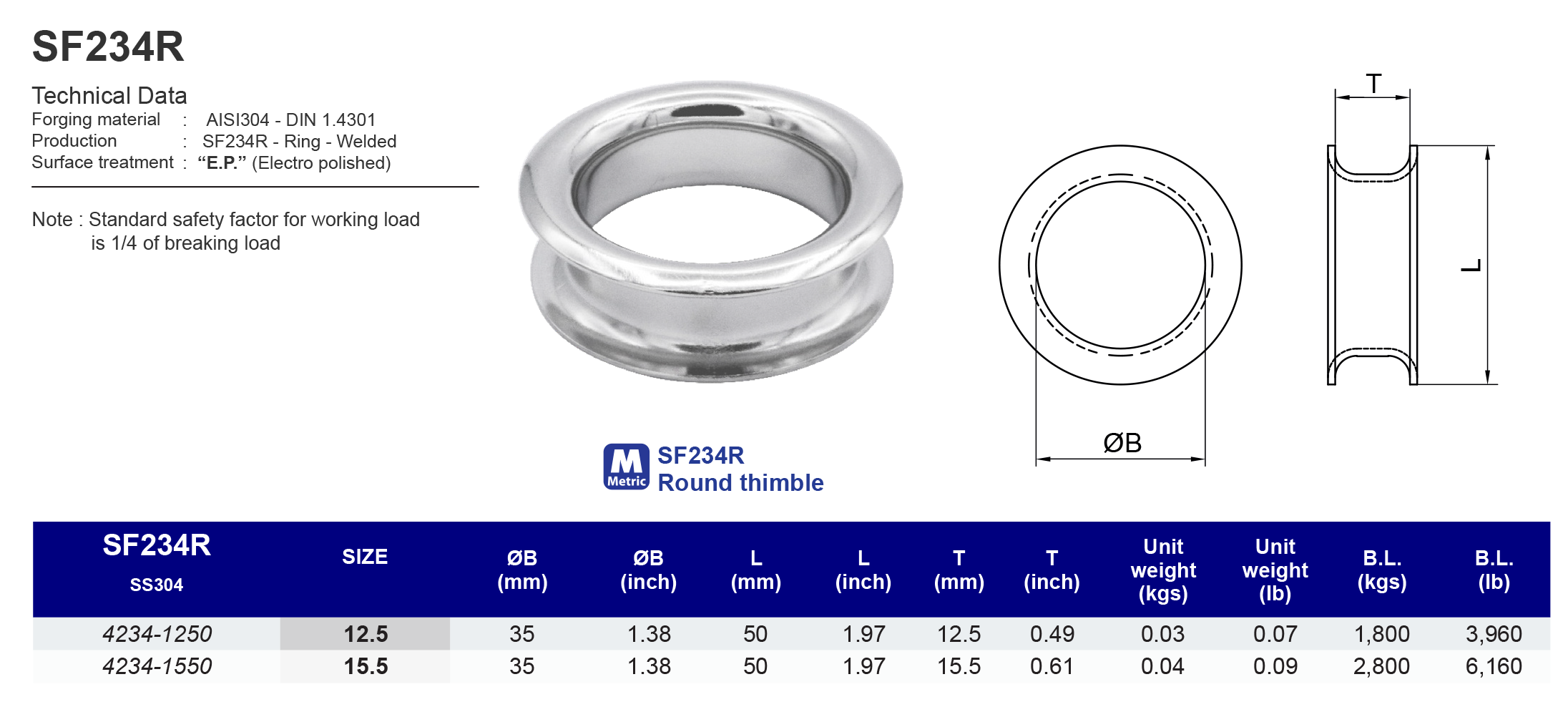

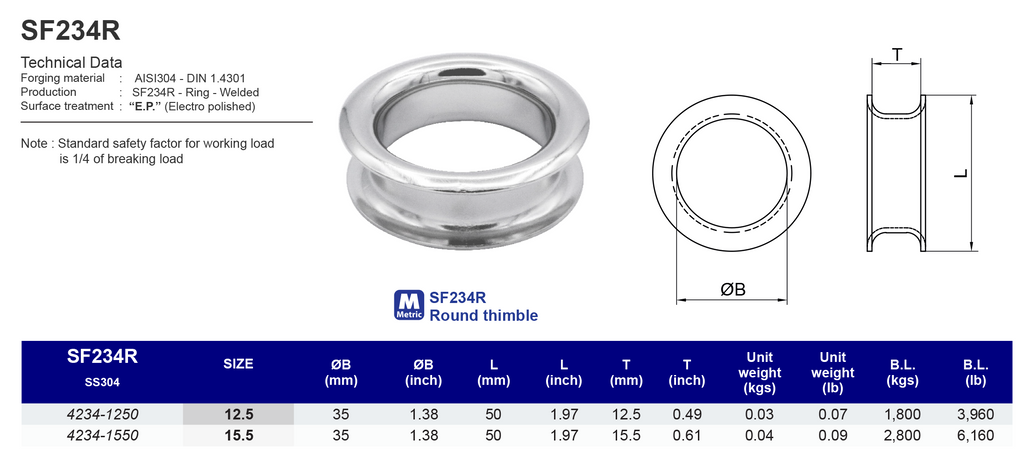

SF234Rdrawing

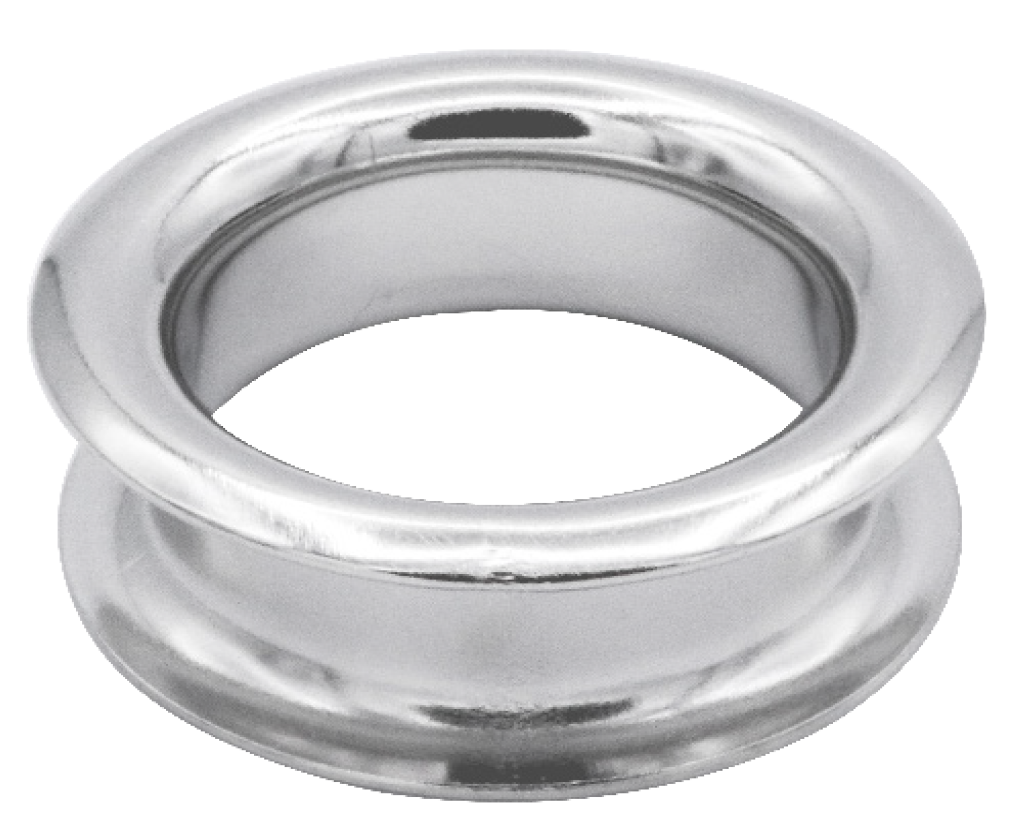

SF234R image
SS304SizeØB (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
4234125012.5355012.50.031,800
4234155015.5355015.50.042,800
SS304SizeØB (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
423412500.49"1.381.970.490.073,960
423415500.61"1.381.970.610.096,160
