Description
Technical Data:
Forging Material:
AISI304 - DIN 1.4301
Production:
SF126 - Ring - Welded
Bolt - Forged
Surface Treatment:
Electro polished / Passivated

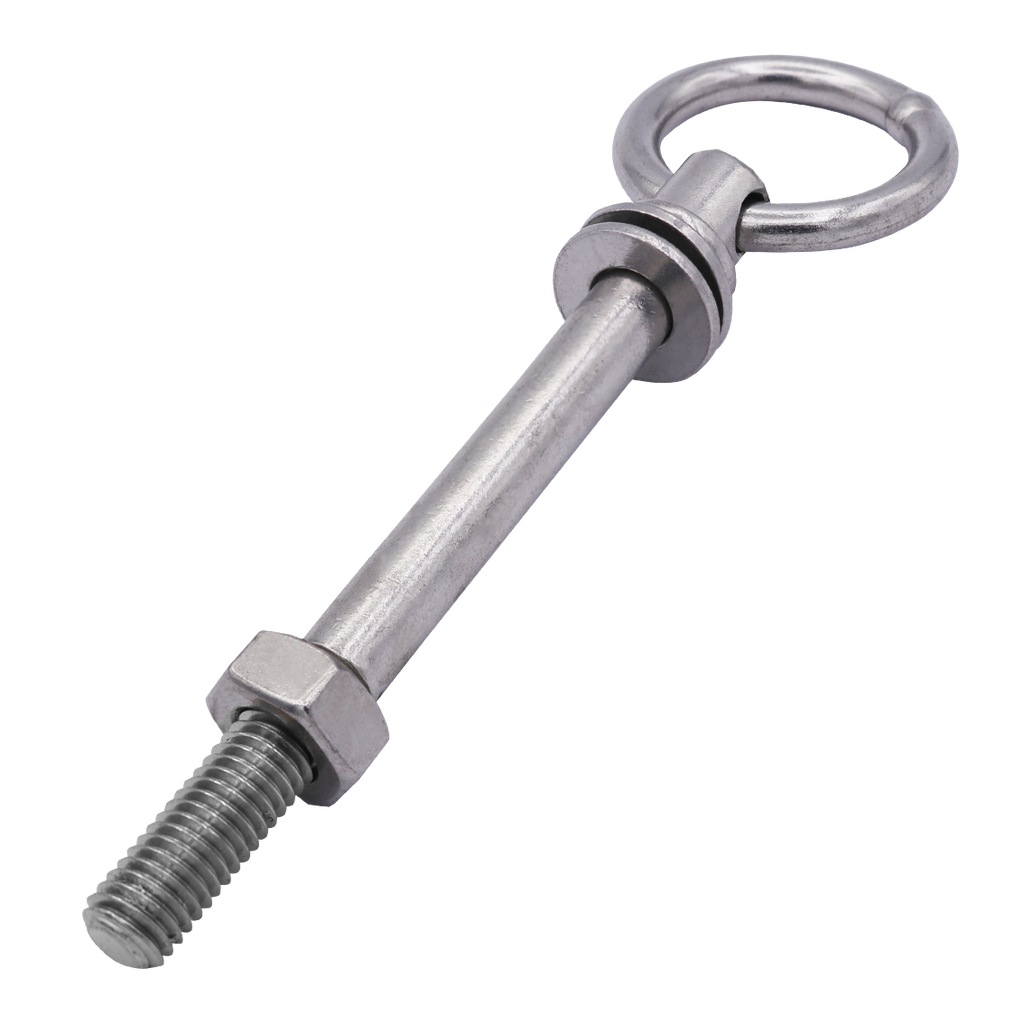

Model
SF126
Ring Bolt
304 ss

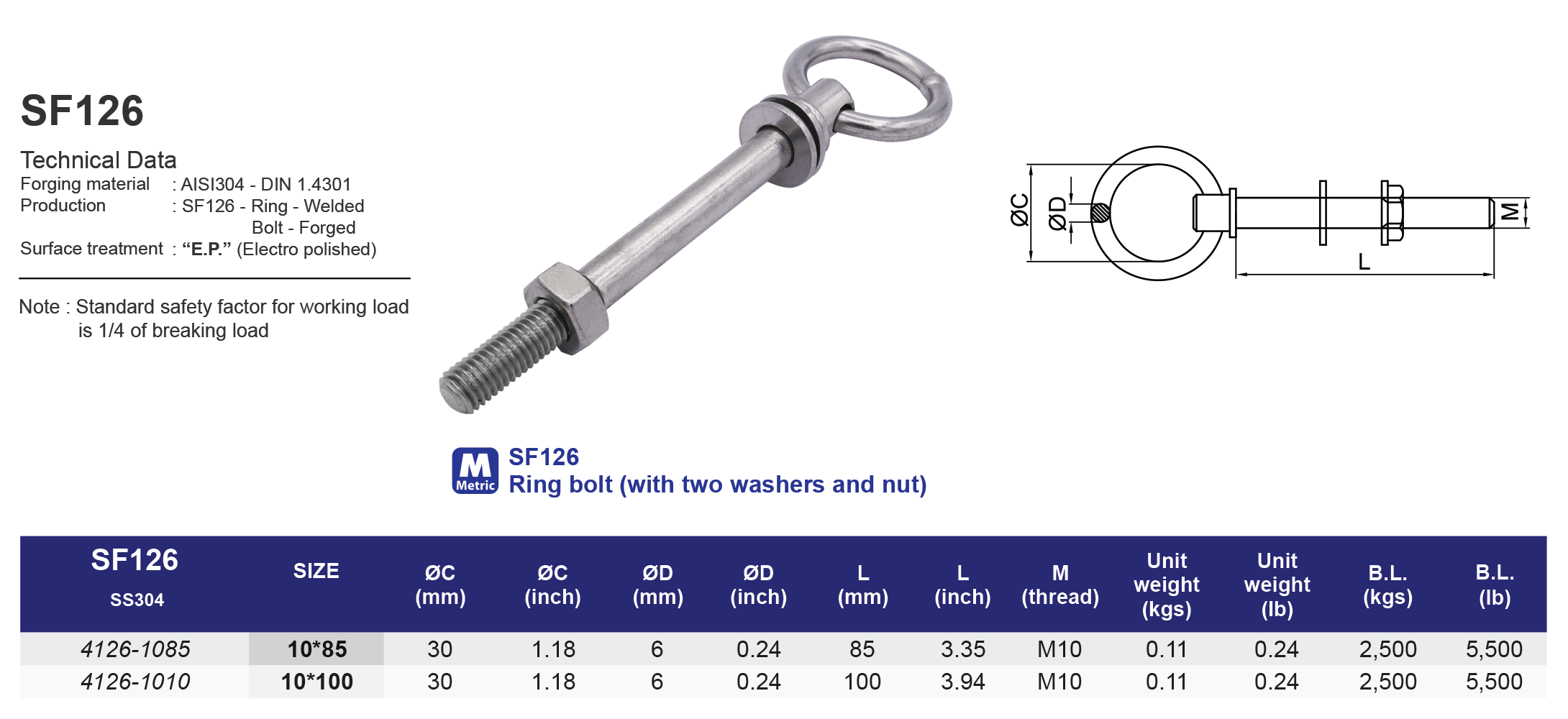

| SS304 | Size | ĆC(mm) | ĆD(mm) | L(mm) | M(thread) | Unit weight(kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|---|
| 4126-1085 | 10*85 | 30 | 6 | 85 | M10 | 0.11 | 2,500 |
| 4126-1010 | 10*100 | 30 | 6 | 100 | M10 | 0.11 | 2,500 |
| SS304 | Size | ĆC(inch) | ĆD(inch) | L(inch) | M(thread) | Unit weight(Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|---|
| 4126-1085 | 10*85 | 1.18 | 0.24 | 3.35 | M10 | 0.24 | 5,500 |
| 4126-1010 | 10*100 | 1.18 | 0.24 | 3.94 | M10 | 0.24 | 5,500 |
