Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Surface Treatment: “M.F.” (Matte finished)

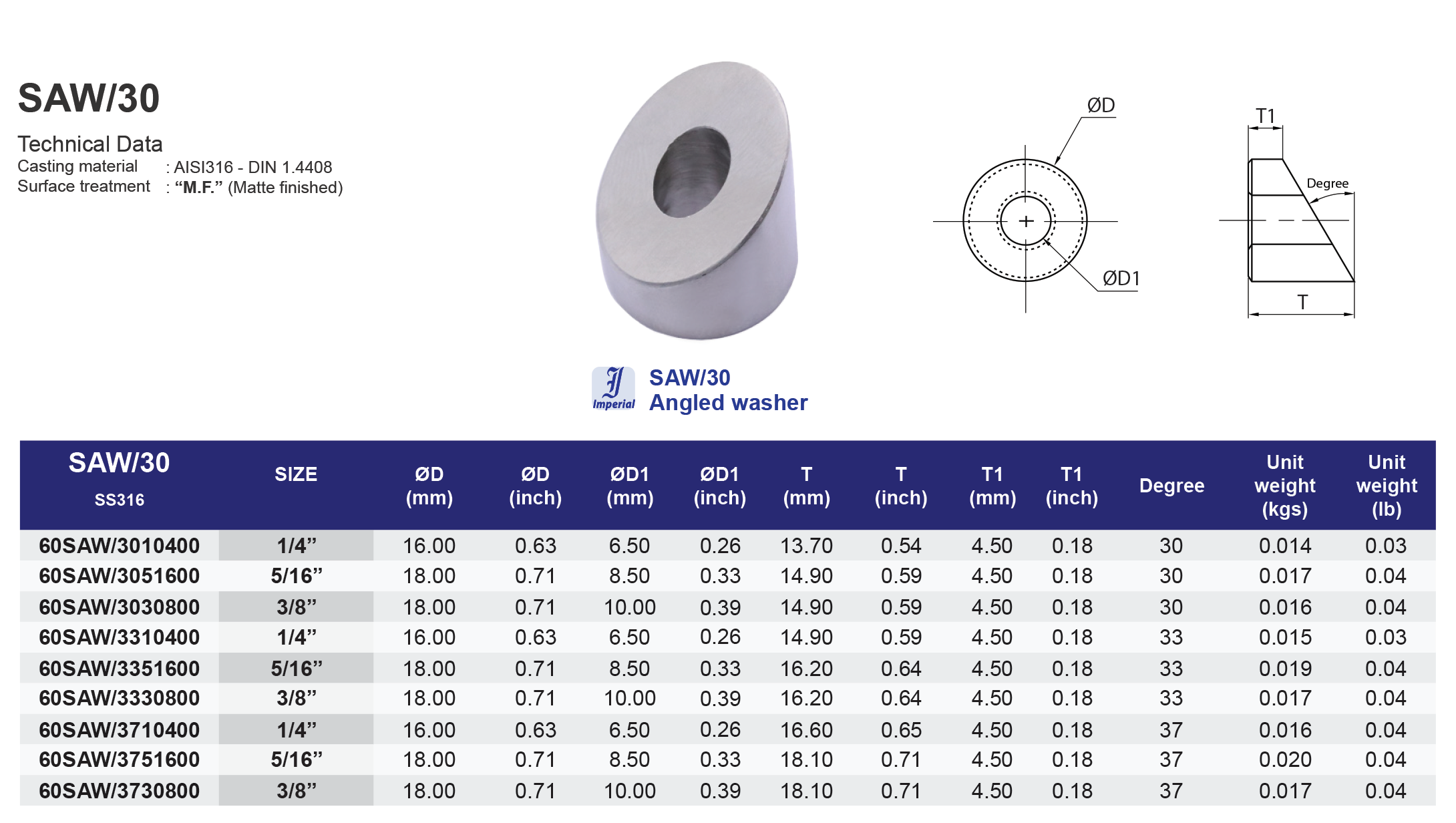

Model
SAW/30, SAW/33, SAW/37

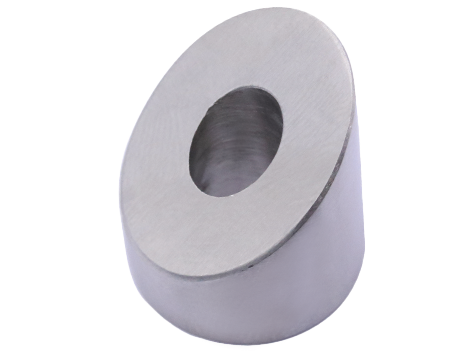

Angled washer
316 ss
| SS316 | Size | ØD (mm) | ØD1 (mm) | T (mm) | T1 (mm) | Degree | Weight (kgs) |
|---|---|---|---|---|---|---|---|
| 60SAW/3010400 | 1/4" | 16.00 | 6.60 | 13.72 | 4.57 | 30 | 0.014 |
| 60SAW/3051600 | 5/16" | 18.03 | 8.38 | 14.99 | 4.57 | 30 | 0.017 |
| 60SAW/3030800 | 3/8" | 18.03 | 9.91 | 14.99 | 4.57 | 30 | 0.016 |
| 60SAW/3310400 | 1/4" | 16.00 | 6.60 | 14.99 | 4.57 | 33 | 0.015 |
| 60SAW/3351600 | 5/16" | 18.03 | 8.38 | 16.26 | 4.57 | 33 | 0.019 |
| 60SAW/3330800 | 3/8" | 18.03 | 9.91 | 16.26 | 4.57 | 33 | 0.017 |
| 60SAW/3710400 | 1/4" | 16.00 | 6.60 | 16.51 | 4.57 | 37 | 0.016 |
| 60SAW/3751600 | 5/16" | 18.03 | 8.38 | 18.03 | 4.57 | 37 | 0.020 |
| 60SAW/3730800 | 3/8" | 18.03 | 9.91 | 18.03 | 4.57 | 37 | 0.017 |
| SS316 | Size | ØD (inch) | ØD1 (inch) | T (inch) | T1 (inch) | Degree | Weight (lb) |
|---|---|---|---|---|---|---|---|
| 60SAW/3010400 | 1/4" | 0.63 | 0.26 | 0.54 | 0.18 | 30 | 0.03 |
| 60SAW/3051600 | 5/16" | 0.71 | 0.33 | 0.59 | 0.18 | 30 | 0.04 |
| 60SAW/3030800 | 3/8" | 0.71 | 0.39 | 0.59 | 0.18 | 30 | 0.04 |
| 60SAW/3310400 | 1/4" | 0.63 | 0.26 | 0.59 | 0.18 | 33 | 0.03 |
| 60SAW/3351600 | 5/16" | 0.71 | 0.33 | 0.64 | 0.18 | 33 | 0.04 |
| 60SAW/3330800 | 3/8" | 0.71 | 0.39 | 0.64 | 0.18 | 33 | 0.04 |
| 60SAW/3710400 | 1/4" | 0.63 | 0.26 | 0.65 | 0.18 | 37 | 0.04 |
| 60SAW/3751600 | 5/16" | 0.71 | 0.33 | 0.71 | 0.18 | 37 | 0.05 |
| 60SAW/3730800 | 3/8" | 0.71 | 0.39 | 0.71 | 0.18 | 37 | 0.04 |
