Description

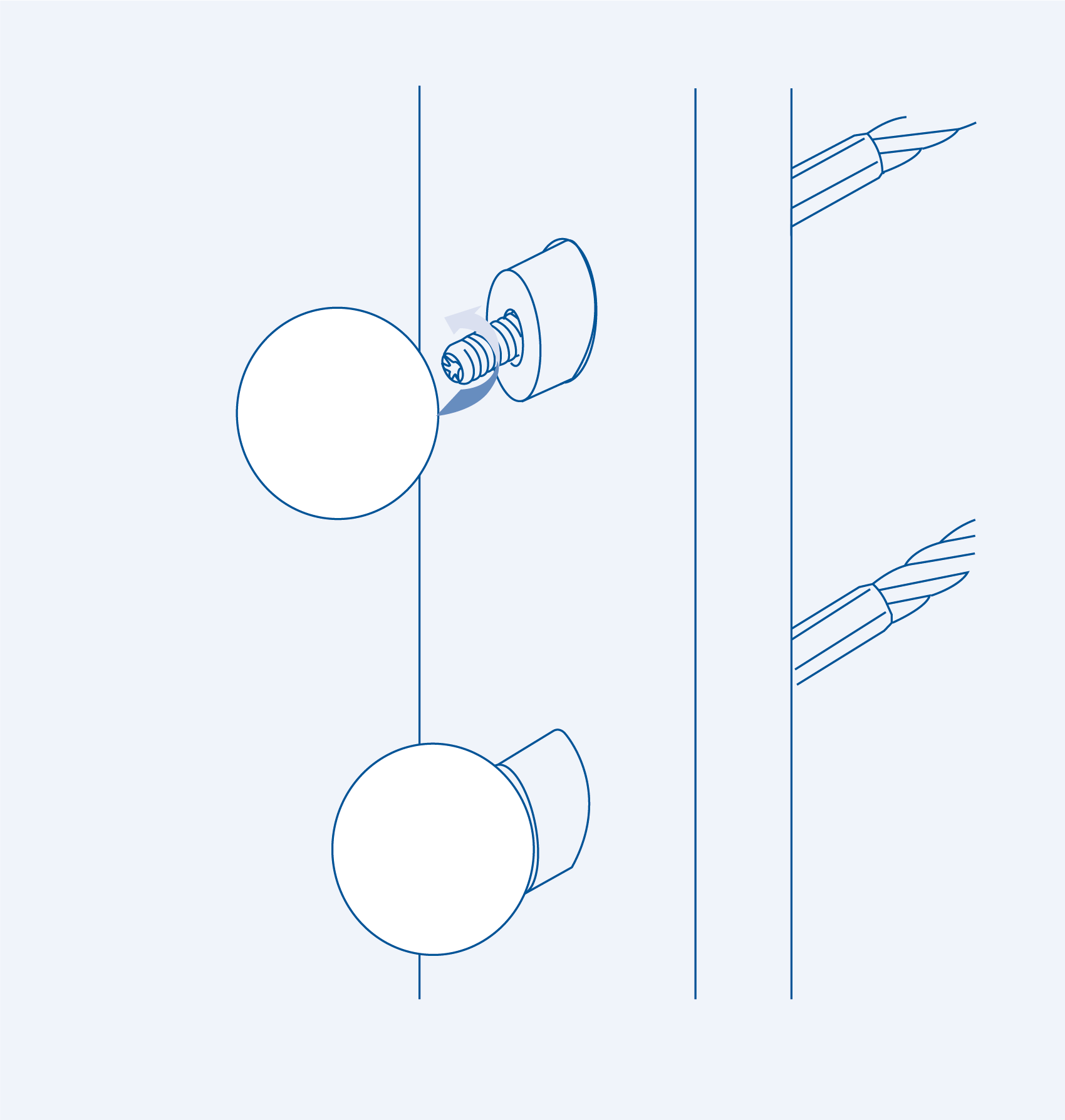

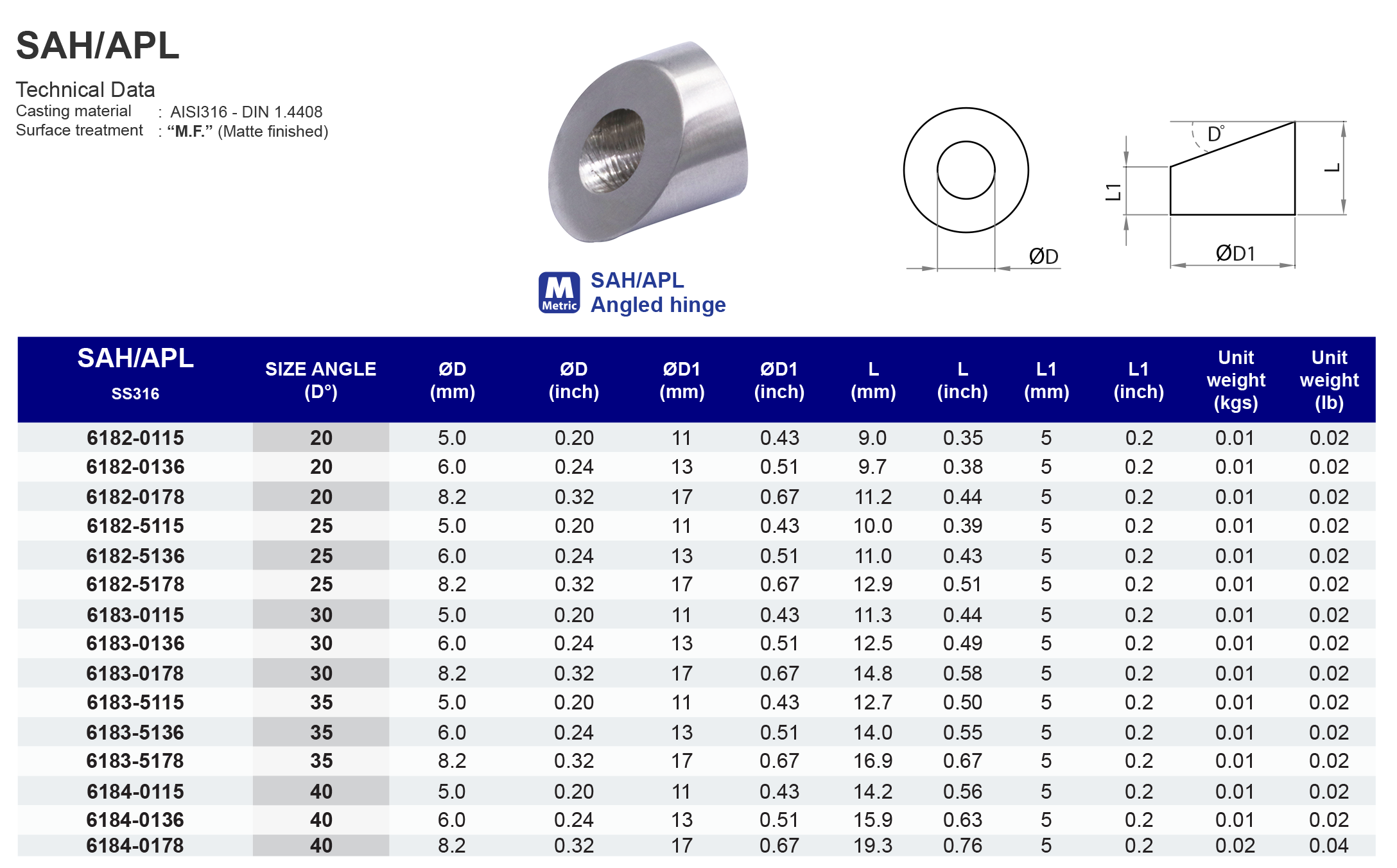

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Surface Treatment: “M.F.” (Matte finished)

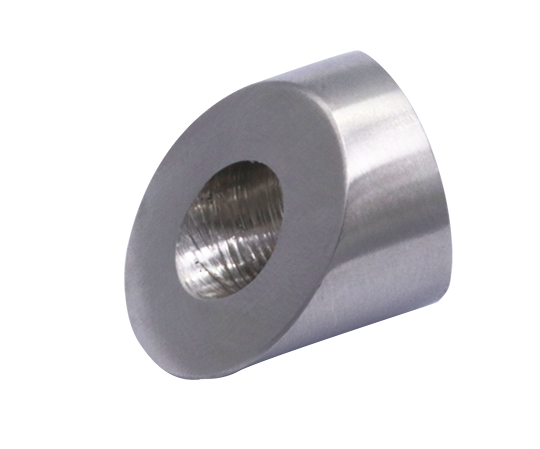

Model
SAH/APL
Angled hinge
316 ss
| SS316 | SIZE ANGLE (D°) | ØD (mm) | ØD1 (mm) | L (mm) | L1 (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 61820115 | 20 | 5 | 11 | 9 | 5 | 0.01 |
| 61820136 | 20 | 6 | 13 | 9.7 | 5 | 0.01 |
| 61820178 | 20 | 8.2 | 17 | 11.2 | 5 | 0.01 |
| 61825115 | 25 | 5 | 11 | 10 | 5 | 0.01 |
| 61825136 | 25 | 6 | 13 | 11 | 5 | 0.01 |
| 61825178 | 25 | 8.2 | 17 | 12.9 | 5 | 0.01 |
| 61830115 | 30 | 5 | 11 | 11.3 | 5 | 0.01 |
| 61830136 | 30 | 6 | 13 | 12.5 | 5 | 0.01 |
| 61830178 | 30 | 8.2 | 17 | 14.8 | 5 | 0.01 |
| 61835115 | 35 | 5 | 11 | 12.7 | 5 | 0.01 |
| 61835136 | 35 | 6 | 13 | 14 | 5 | 0.01 |
| 61835178 | 35 | 8.2 | 17 | 16.9 | 5 | 0.01 |
| 61840115 | 40 | 5 | 11 | 14.2 | 5 | 0.01 |
| 61840136 | 40 | 6 | 13 | 15.9 | 5 | 0.01 |
| 61840178 | 40 | 8.2 | 17 | 19.3 | 5 | 0.02 |
| SS316 | SIZE ANGLE (D°) | ØD (inch) | ØD1 (inch) | L (inch) | L1 (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 61820115 | 20 | 0.2 | 0.43 | 0.35 | 0.2 | 0.02 |
| 61820136 | 20 | 0.24 | 0.51 | 0.38 | 0.2 | 0.02 |
| 61820178 | 20 | 0.32 | 0.67 | 0.44 | 0.2 | 0.02 |
| 61825115 | 25 | 0.20 | 0.43 | 0.39 | 0.2 | 0.02 |
| 61825136 | 25 | 0.24 | 0.51 | 0.43 | 0.2 | 0.02 |
| 61825178 | 25 | 0.32 | 0.67 | 0.51 | 0.2 | 0.02 |
| 61830115 | 30 | 0.20 | 0.43 | 0.44 | 0.2 | 0.02 |
| 61830136 | 30 | 0.24 | 0.51 | 0.49 | 0.2 | 0.02 |
| 61830178 | 30 | 0.32 | 0.67 | 0.58 | 0.2 | 0.02 |
| 61835115 | 35 | 0.20 | 0.43 | 0.50 | 0.2 | 0.02 |
| 61835136 | 35 | 0.24 | 0.51 | 0.55 | 0.2 | 0.02 |
| 61835178 | 35 | 0.32 | 0.67 | 0.67 | 0.2 | 0.02 |
| 61840115 | 40 | 0.20 | 0.43 | 0.56 | 0.2 | 0.02 |
| 61840136 | 40 | 0.24 | 0.51 | 0.63 | 0.2 | 0.02 |
| 61840178 | 40 | 0.32 | 0.67 | 0.76 | 0.2 | 0.04 |
