Technical Data:
Casting Material: AISI316 - DIN 1.4408
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load is 1/4 of breaking load.

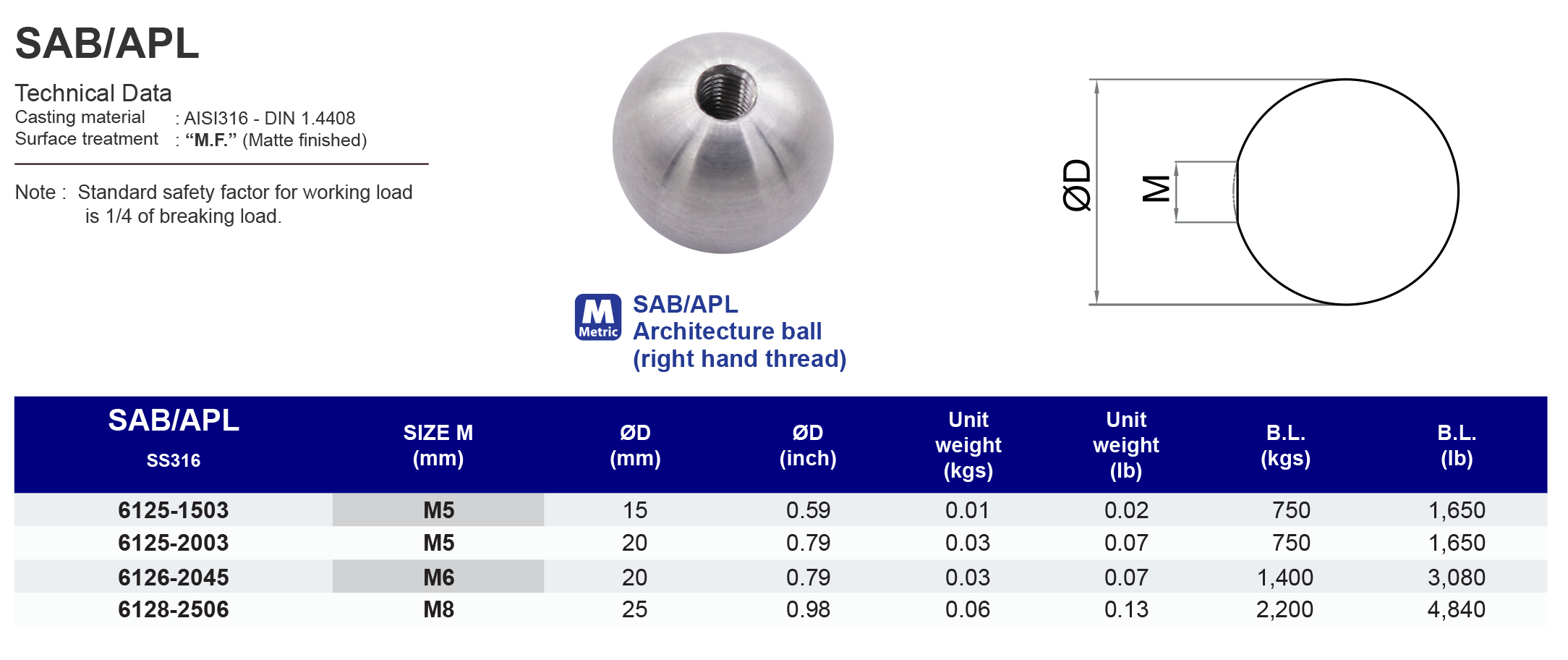

Model
SAB/APL

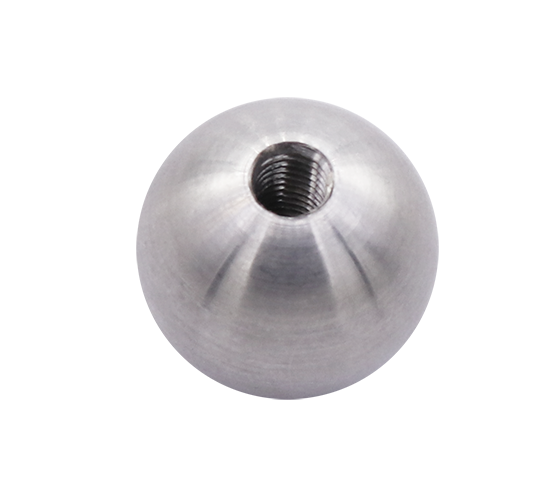

Architecture ball (right hand thread)
316 ss
SS316 | SIZE M (mm) | ØD (mm) | Unit weight (kgs) | Unit weight (lb) | B.L. (kgs) |
---|---|---|---|---|---|
61251503 | M5 | 15 | 0.01 | 0.02 | 750 |
61252003 | M5 | 20 | 0.03 | 0.07 | 750 |
61262045 | M6 | 20 | 0.03 | 0.07 | 1,400 |
61282506 | M8 | 25 | 0.06 | 0.13 | 2,200 |
SS316 | SIZE M (mm) | ØD (inch) | Unit weight (kgs) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|
61251503 | M5 | 0.59 | 0.01 | 0.02 | 1,650 |
61252003 | M5 | 0.79 | 0.03 | 0.07 | 1,650 |
61262045 | M6 | 0.79 | 0.03 | 0.07 | 3,080 |
61282506 | M8 | 0.98 | 0.06 | 0.13 | 4,840 |
