Description

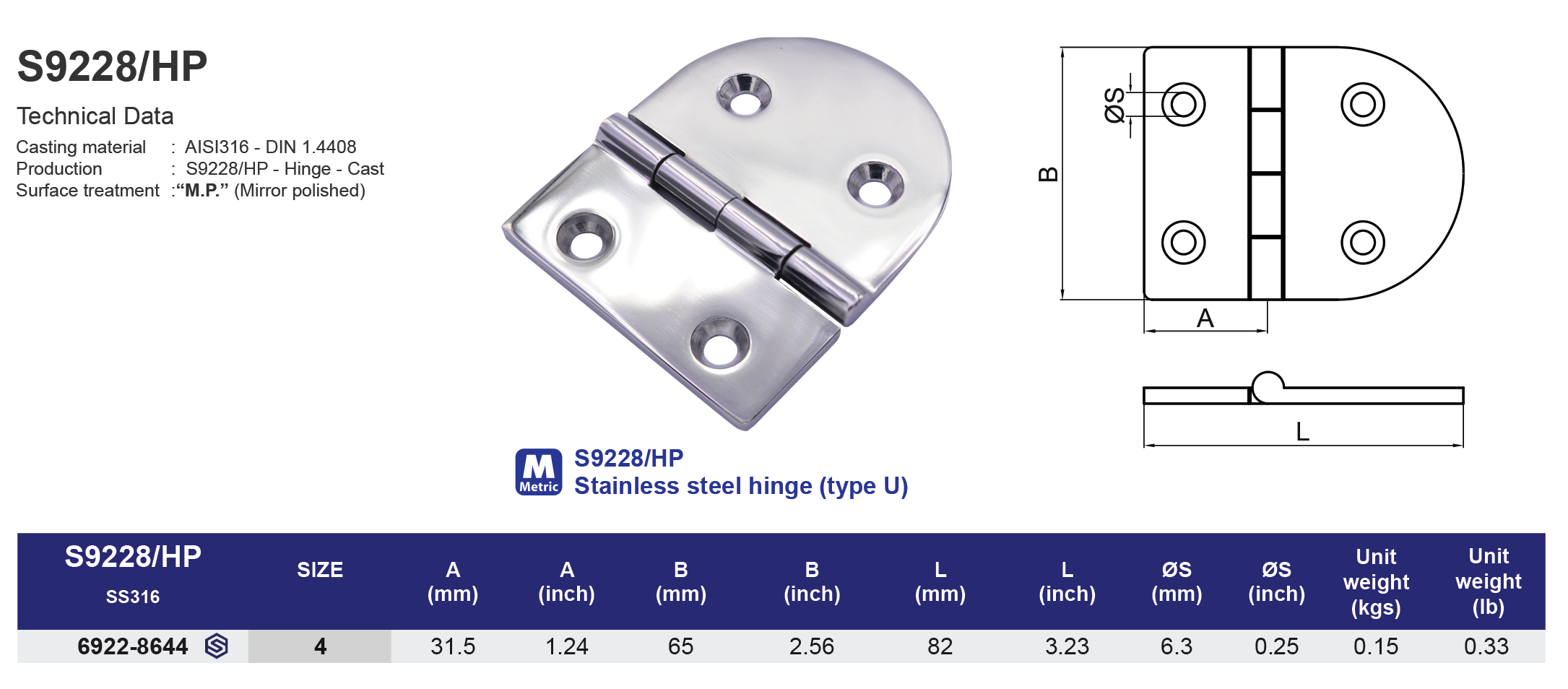

Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Surface Treatment:
Mirror polished / Passivated
Model
S9228/HP

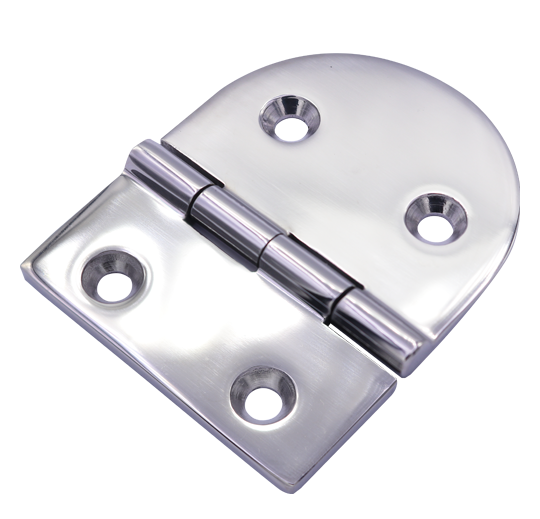

Stainless steel hinge (type U)
316 ss
| SS316 | SIZE | A (mm) | B (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 69228644 | 4 | 31.5 | 64 | 81 | 6.3 | 0.15 |
| SS316 | SIZE | A (inch) | B (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 69228644 | 5/32" | 1.24 | 2.52 | 3.19 | 0.25 | 0.33 |
