Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production:
S9225/HP - Hinge - Cast Surface Treatment: “M.P.” (Mirror polished)
Model
S9225/HP

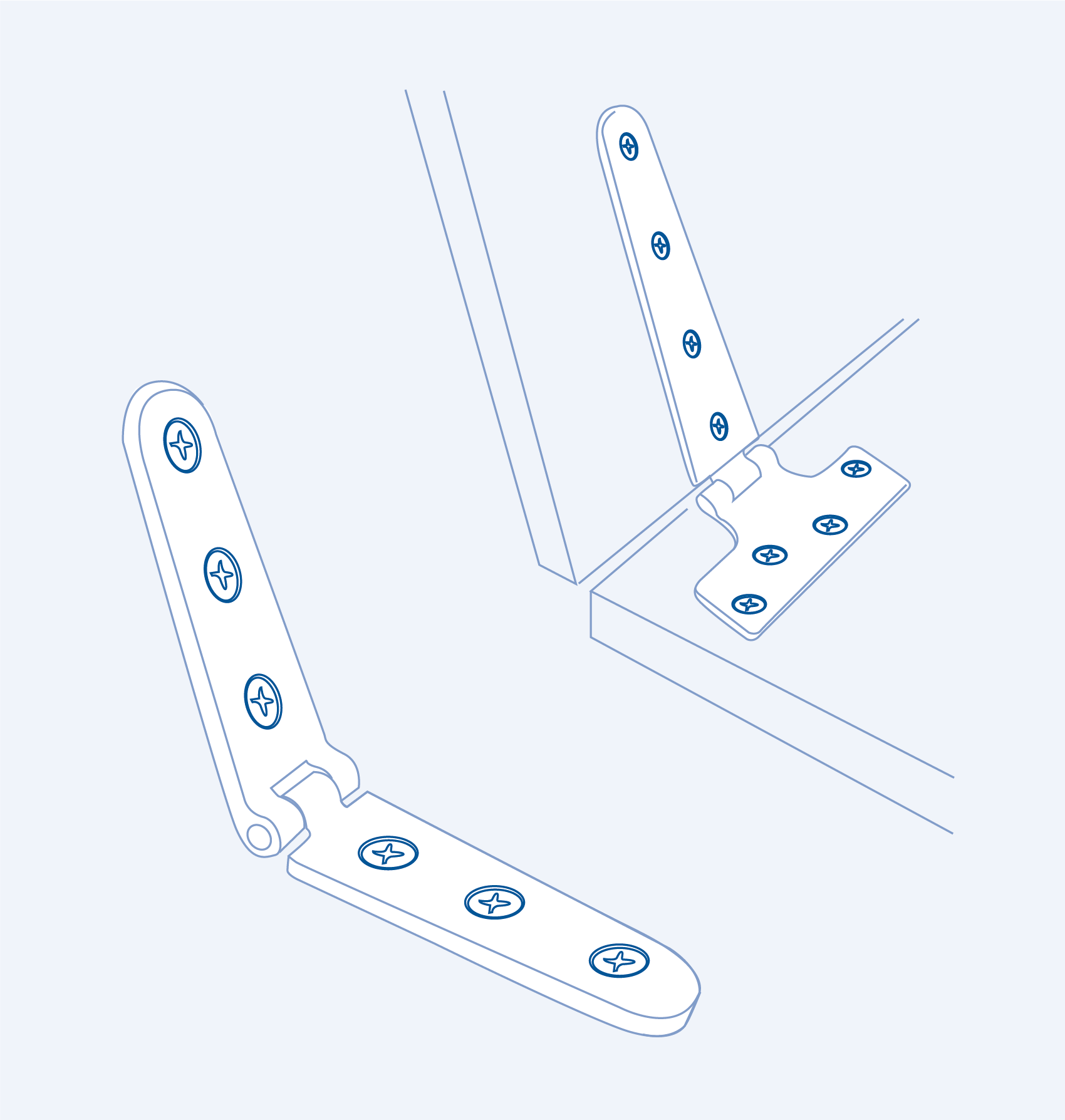

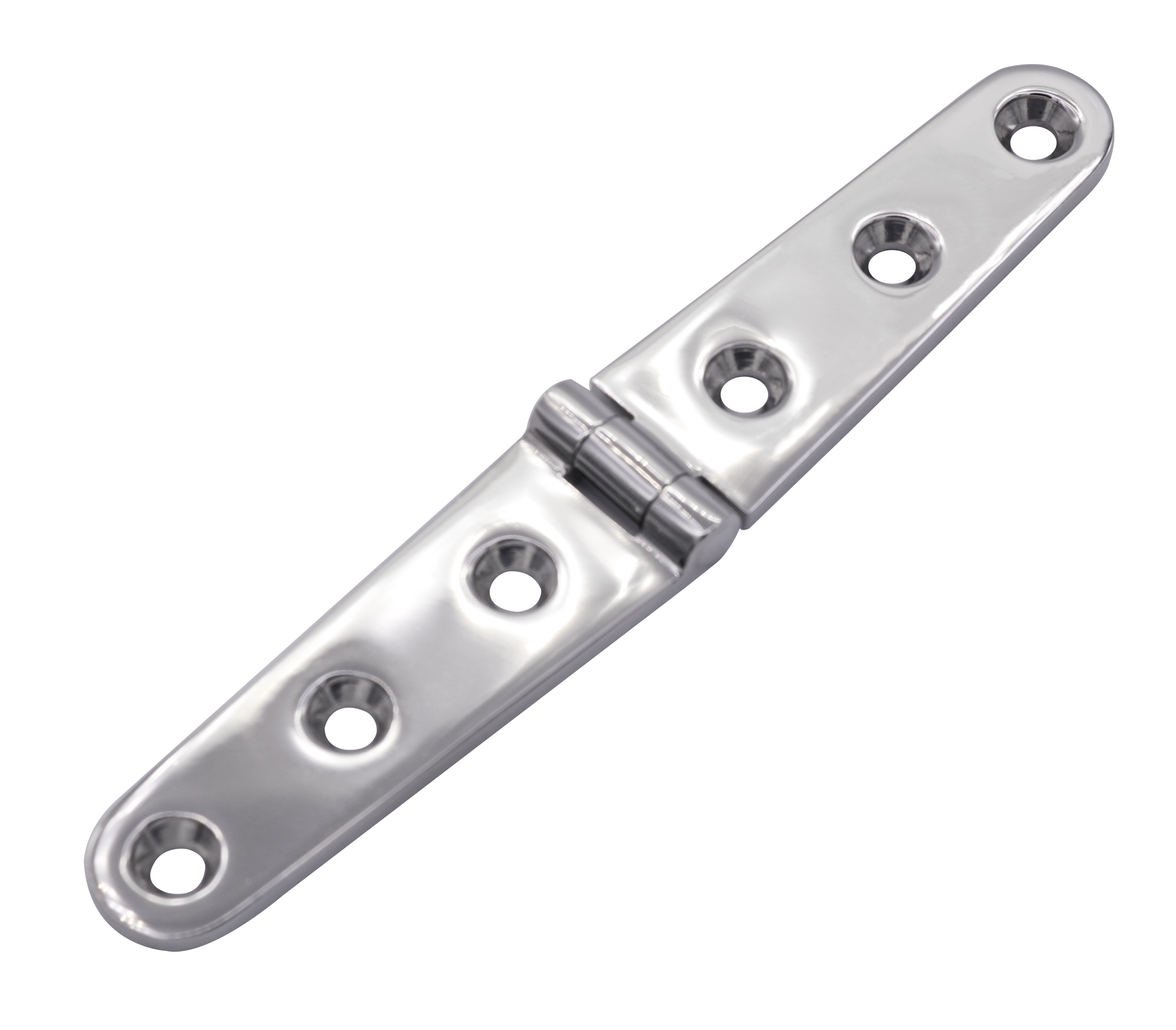

Stainless steel hinge (type L)
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)
![S9225_HP drawing S9225_HP drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S9225_HP_DiagramV1.png)
![S9225_HP image S9225_HP image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S9225_HP_ImageV1.png)
SS316 | SIZE | A (mm) | L (mm) | ØS (mm) | Unit weight (kgs) | |
---|---|---|---|---|---|---|
69225274 | 4 | 80 | 27 | 160 | 5.5 | 0.12 |
SS316 | SIZE | A (inch) | C (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
---|---|---|---|---|---|---|
69225274 | 5/32" | 3.15 | 1.06 | 6.3 | 0.22 | 0.26 |
