S9224WL Long Angle Hinge

SKU: 69224380

Size (mm): 38mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production:
S9224WL - Hinge - Cast

Surface Treatment:
Mirror polished / Passivated

DATA SHEET DOWNLOAD

Model

S9224WL

Long Angle Hinge
316 ss

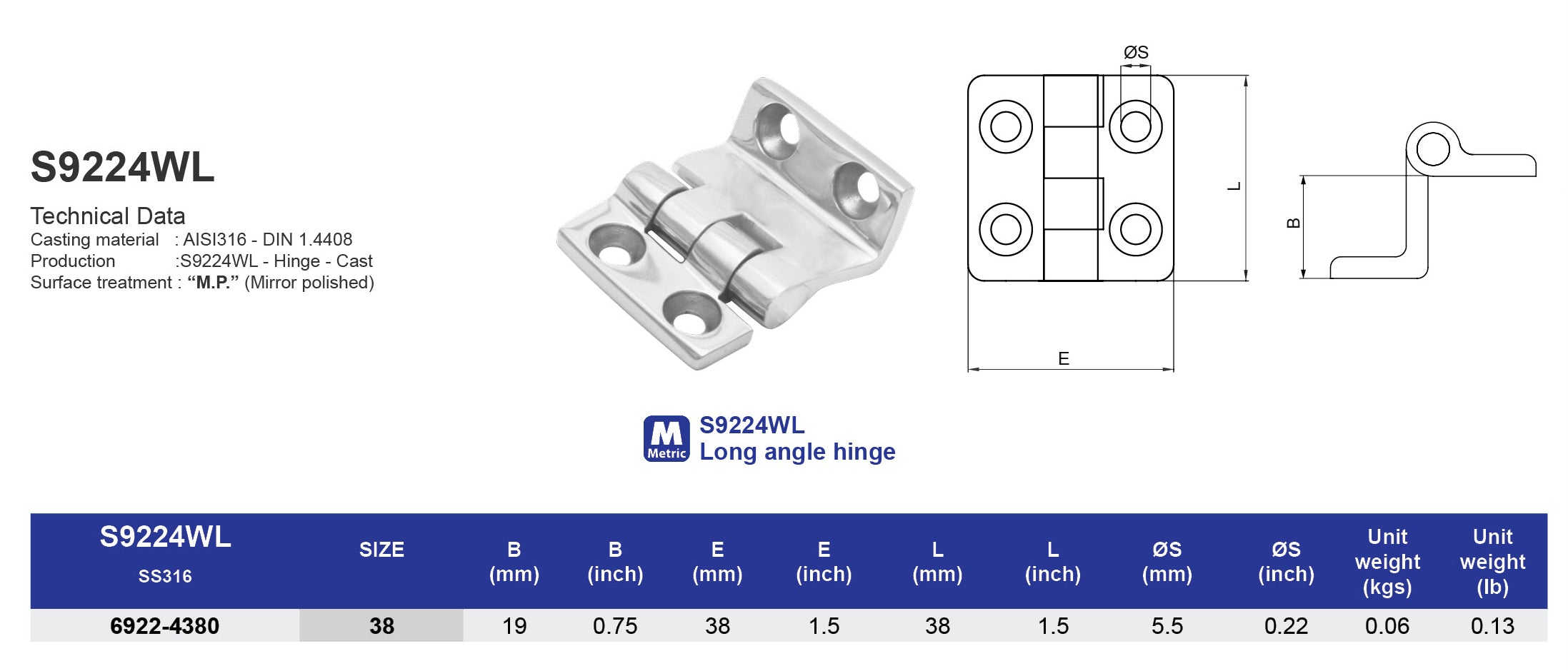

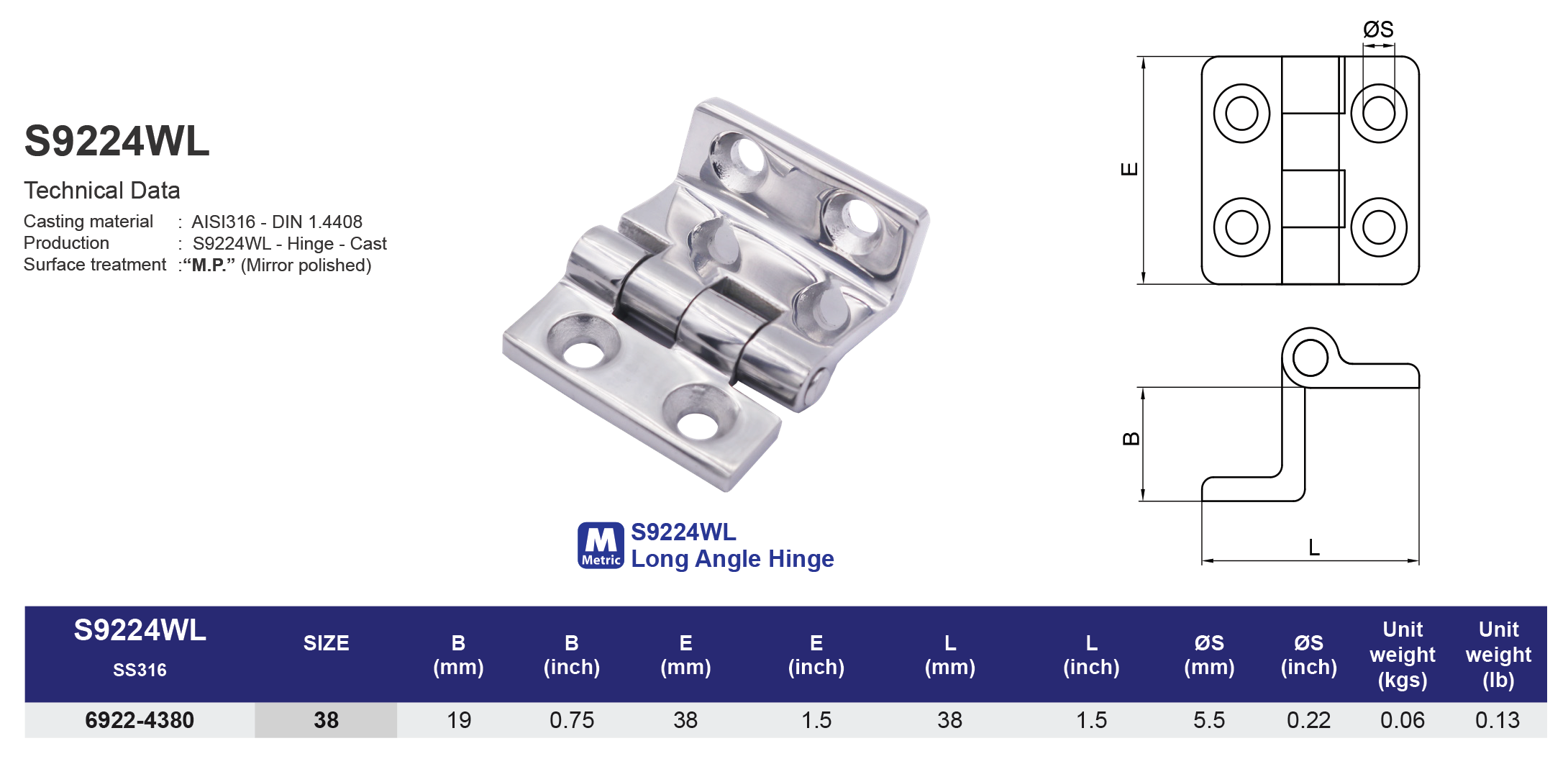

S9224WL drawing

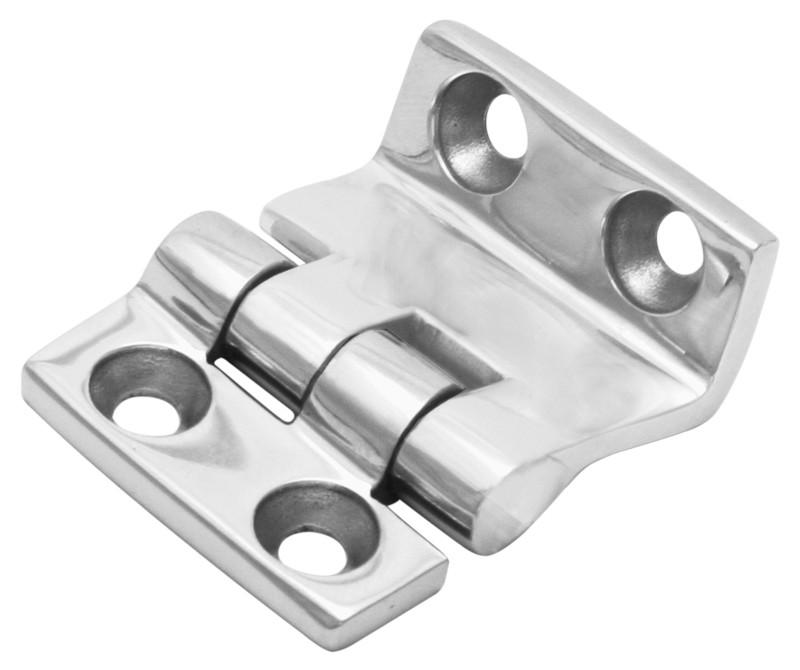

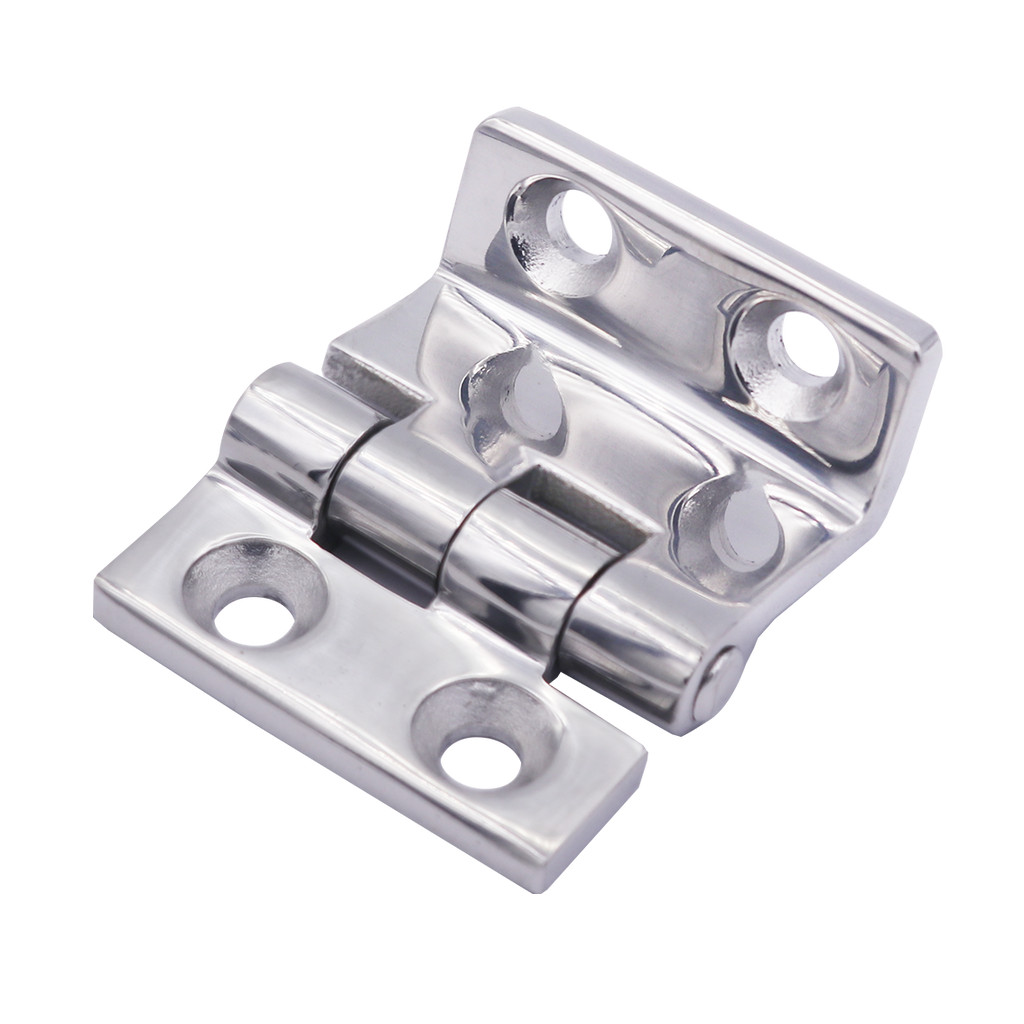

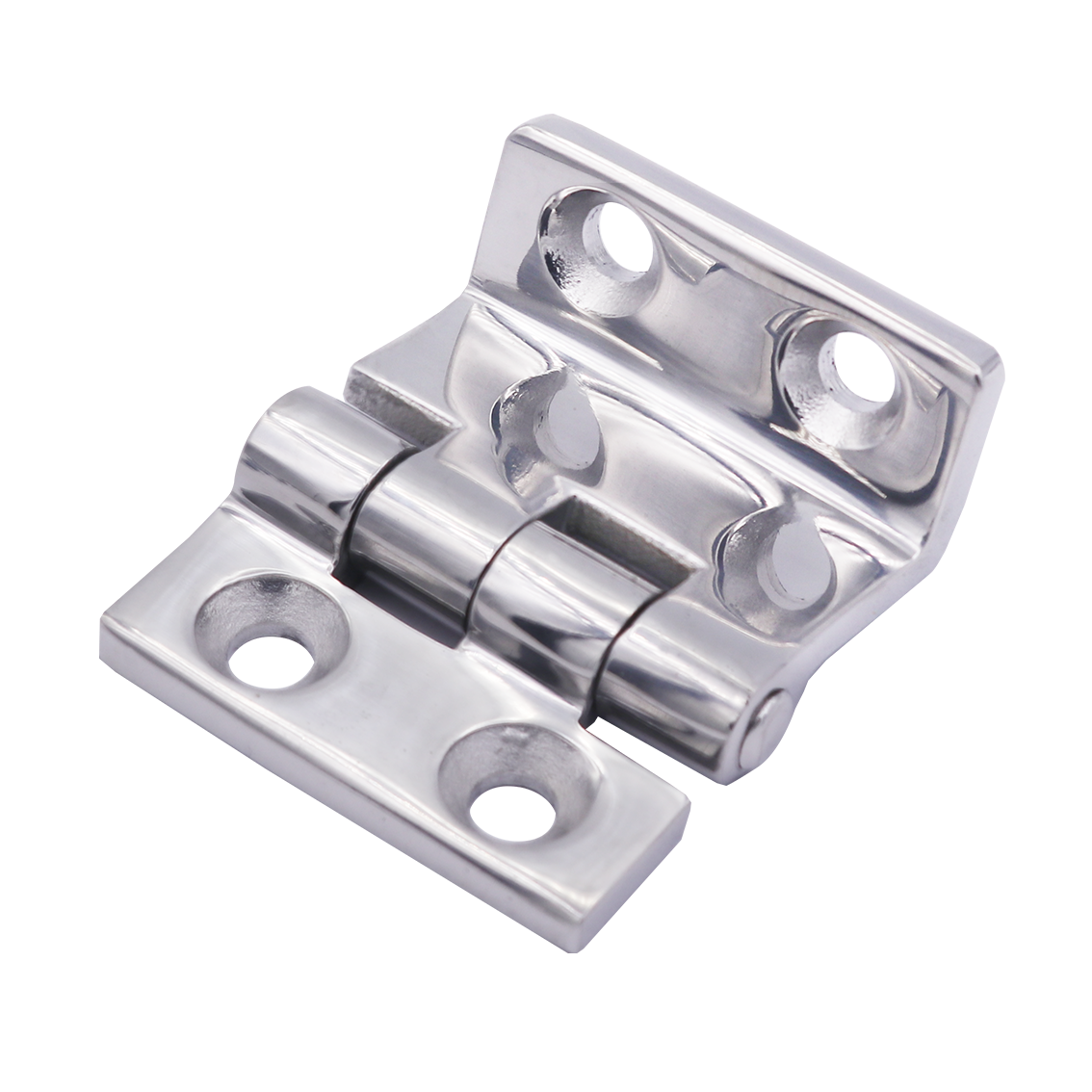

S9224WL image
SS316SizeB(mm)E(mm)L(mm)ØS(mm)Weight(kgs)
69224380381938385.50.06
SS316SizeB(inch)E(inch)L(inch)ØS(inch)Weight(Ib)
69224380380.751.51.50.220.13
