Description

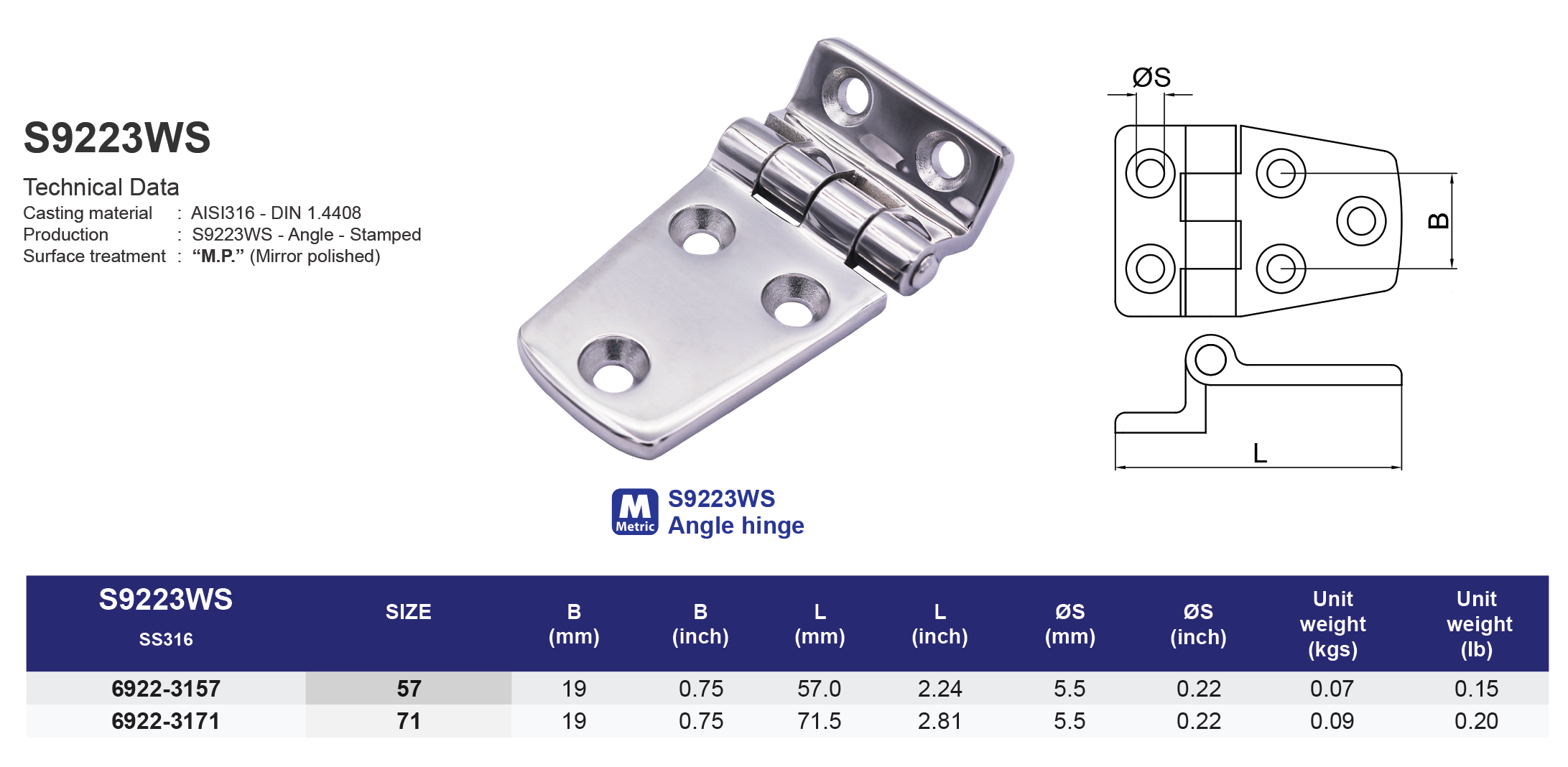

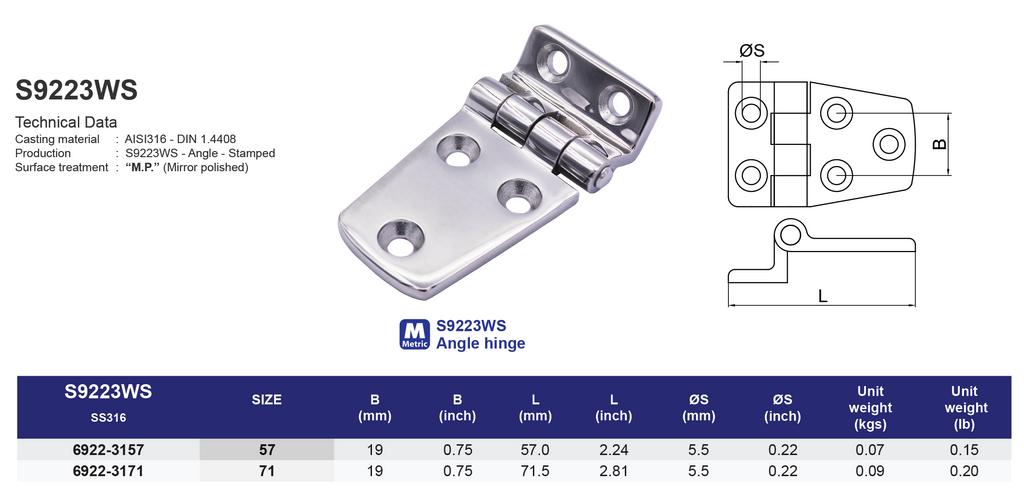

Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production:
S9223WS - Angle - Stamped
Surface Treatment:
“M.P.” (Mirror polished)

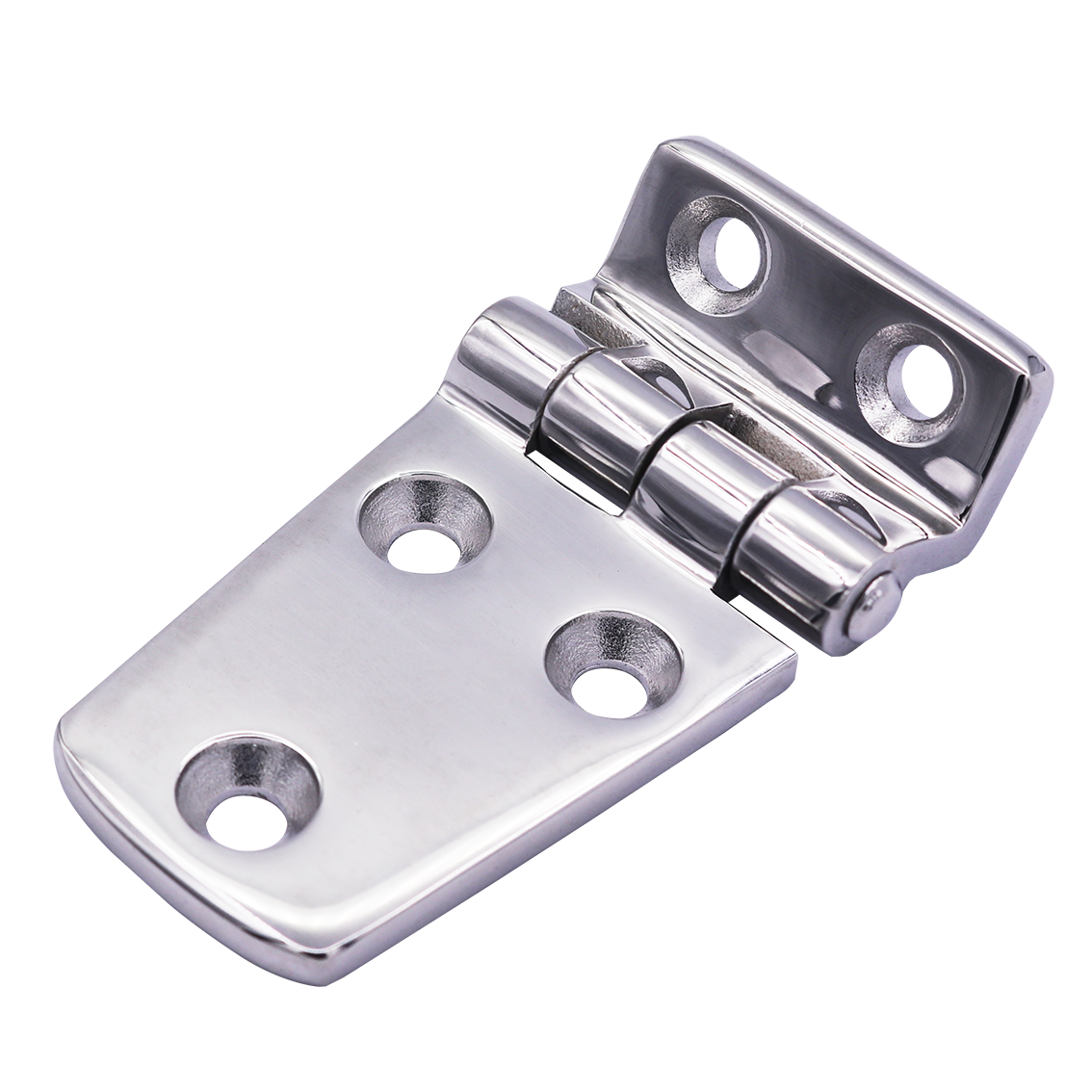

Model
S9223WS
Angle hinge
316 ss
| SS316 | SIZE | B (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 69223157 | 57 | 19 | 57.0 | 5.5 | 0.07 |
| 69223171 | 71 | 19 | 71.5 | 5.5 | 0.09 |
| SS316 | SIZE | B (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 69223157 | 2-1/4" | 0.75 | 2.24 | 0.22 | 0.15 |
| 69223171 | 2-3/4" | 0.75 | 2.81 | 0.22 | 0.20 |
