Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S80704 - Nut - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

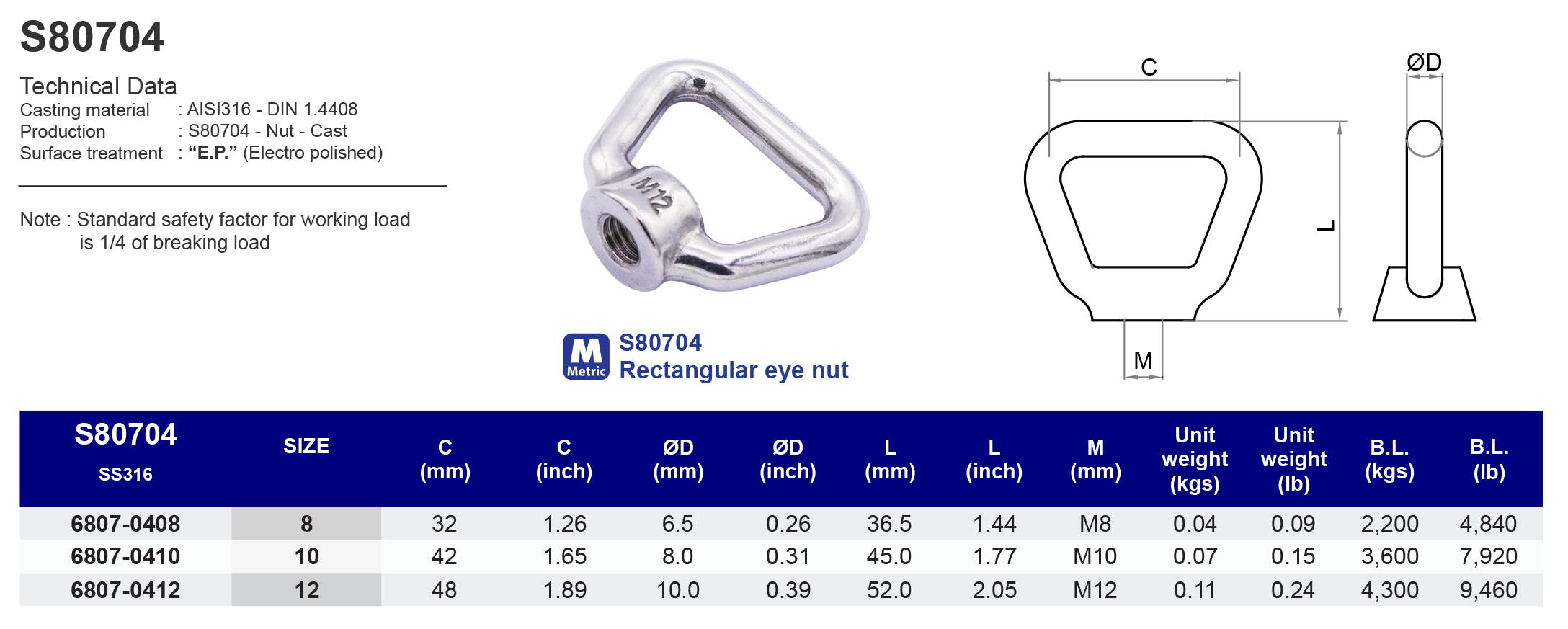

Model
S80704
Rectangular eye nut
316 ss
| SS316 | Size | C (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 68070408 | 8 | 32 | 6.5 | 36.5 | M8 | 0.04 | 2,200 |
| 68070410 | 10 | 42 | 8.0 | 45 | M10 | 0.07 | 3,600 |
| 68070412 | 12 | 48 | 10.0 | 52 | M12 | 0.11 | 4,300 |
| SS316 | Size | C (inch) | ØD (inch) | L (inch) | M (mm) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 68070408 | 8 | 1.26 | 0.26 | 1.44 | M8 | 0.09 | 4,840 |
| 68070410 | 10 | 1.65 | 0.31 | 1.77 | M10 | 0.15 | 7,920 |
| 68070412 | 12 | 1.89 | 0.39 | 2.05 | M12 | 0.24 | 9,460 |
