Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S80701 - Nut - Cast
Surface Treatment: “E.P.” (Electro polished)

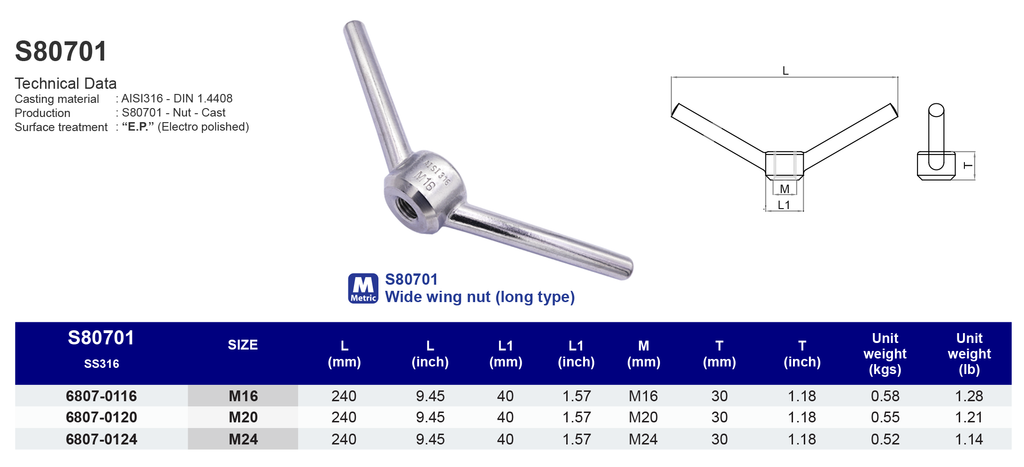

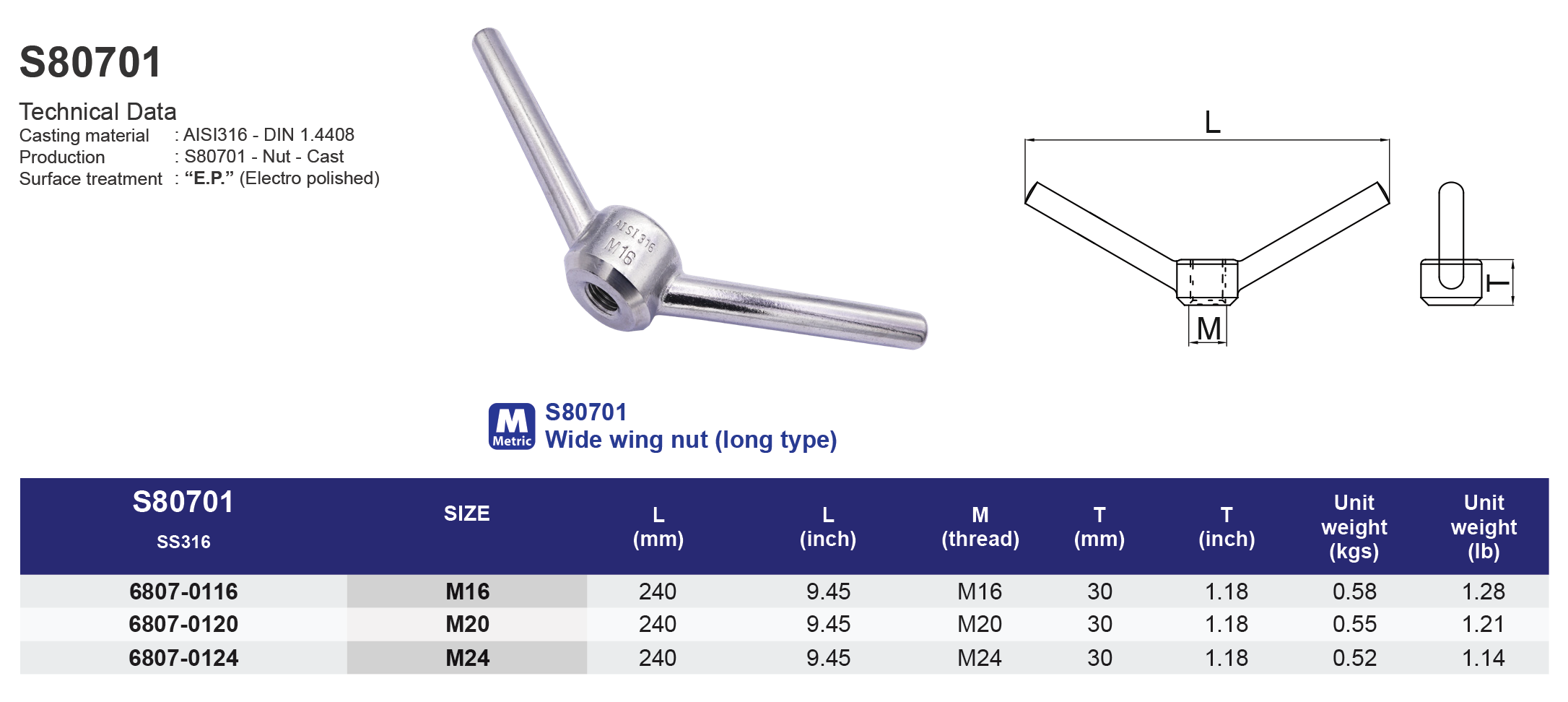

Model
S80701

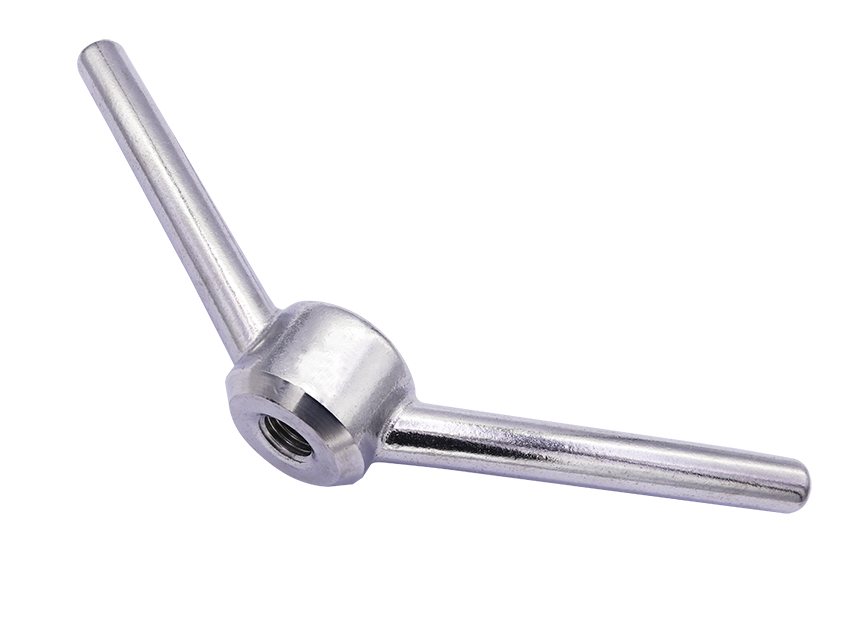

Wide wing nut (long type)
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | T (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 68070116 | M16 | 240 | 40 | M16 | 30 | 0.58 |
| 68070120 | M20 | 240 | 40 | M20 | 30 | 0.55 |
| 68070124 | M24 | 240 | 40 | M24 | 30 | 0.52 |
| SS316 | Size | L (inch) | L1 (inch) | M (mm) | T (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 68070116 | M16 | 9.45 | 1.57 | M16 | 1.18 | 1.28 |
| 68070120 | M20 | 9.45 | 1.57 | M20 | 1.18 | 1.21 |
| 68070124 | M24 | 9.45 | 1.57 | M24 | 1.18 | 1.14 | Size | L (inch) | L1 (inch) | M (mm) | T (inch) | Unit weight (lb) |
| 68070116 | M16 | 9.45 | 1.57 | M16 | 1.18 | 1.28 |
| 68070120 | M20 | 9.45 | 1.57 | M20 | 1.18 | 1.21 |
| 68070124 | M24 | 9.45 | 1.57 | M24 | 1.18 | 1.14 |
