Description
Technical Data:
Forging material : AISI316 - DIN 1.4401
Production : S7805/TG3
Terminal - Cast
Toggle - Forged
Accessory - See chart
Surface treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load.

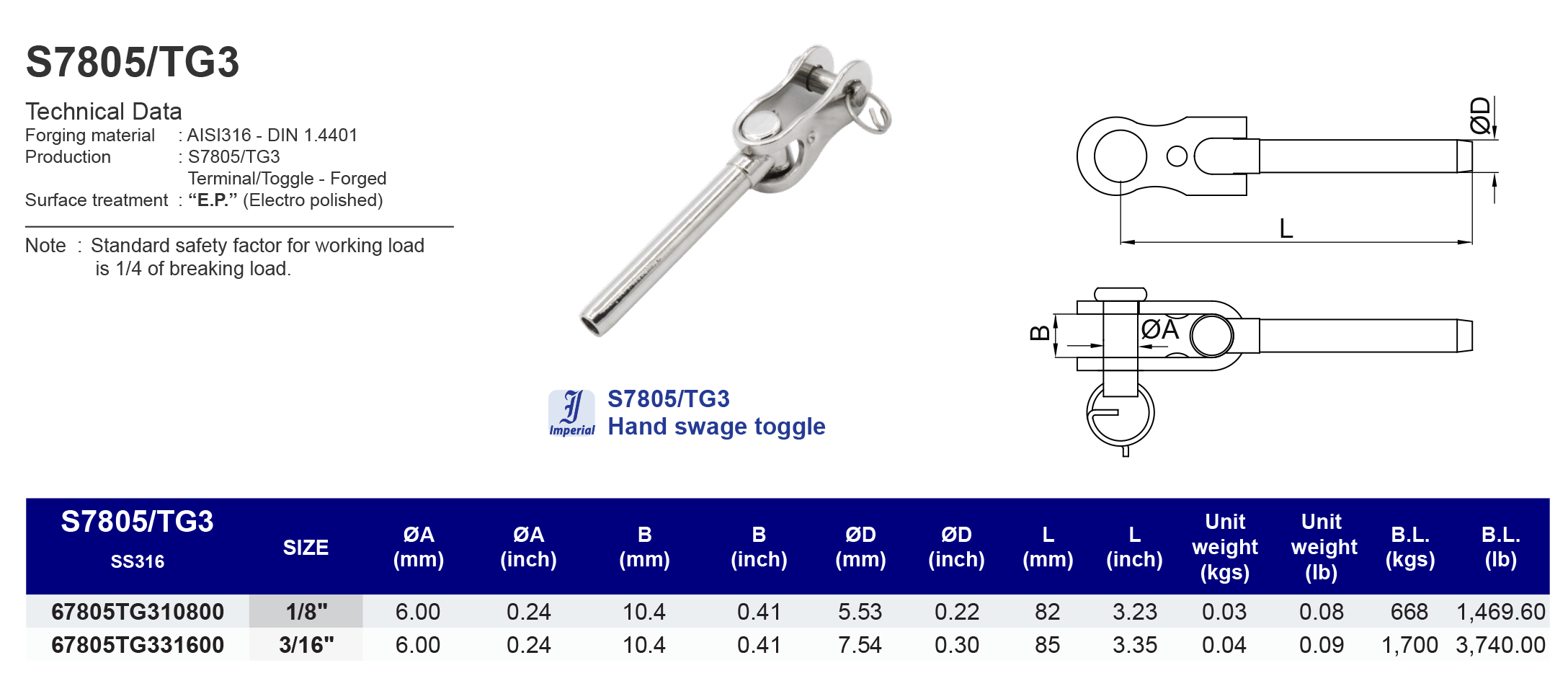

Model
S7805/TG3

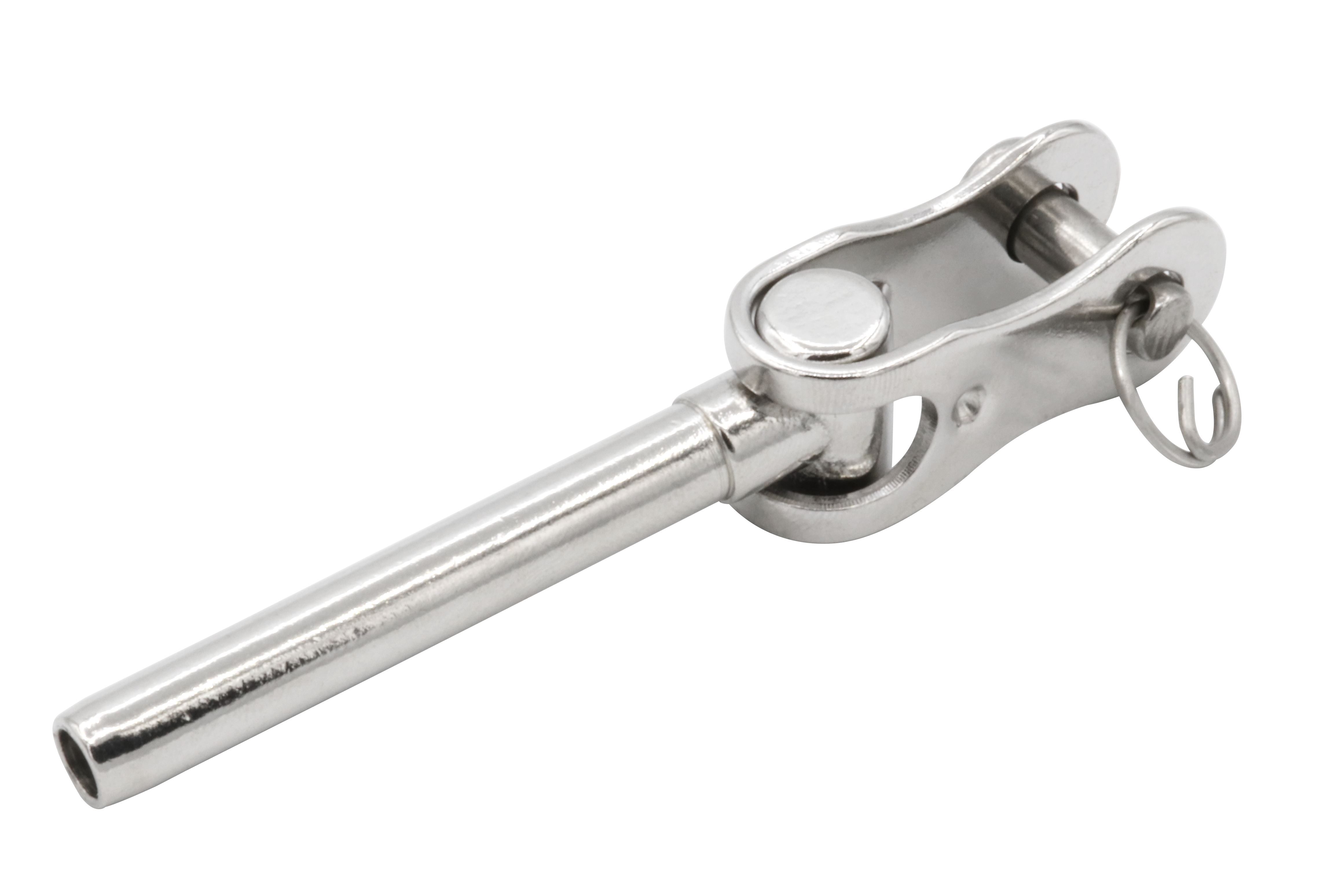

Hand swage toggle
316 ss
| SS316 | SIZE | ØA (mm) | B (mm) | ØD (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 67805TG310800 | 1/8" | 6 | 10.4 | 5.53 | 82 | 0.03 | 668 |
| 67805TG331600 | 3/16" | 6 | 10.4 | 7.54 | 85 | 0.04 | 1,700 |
| SS316 | SIZE | ØA (inch) | B (inch) | ØD (inch) | L (inch) | Unit weight (lb) | B.L. (Ib) |
|---|---|---|---|---|---|---|---|
| 67805TG310800 | 1/8" | 0.24 | 0.41 | 0.22 | 3.23 | 0.08 | 1,469.60 |
| 67805TG331600 | 3/16" | 0.24 | 0.41 | 0.3 | 3.35 | 0.09 | 3,740.00 |
