Description

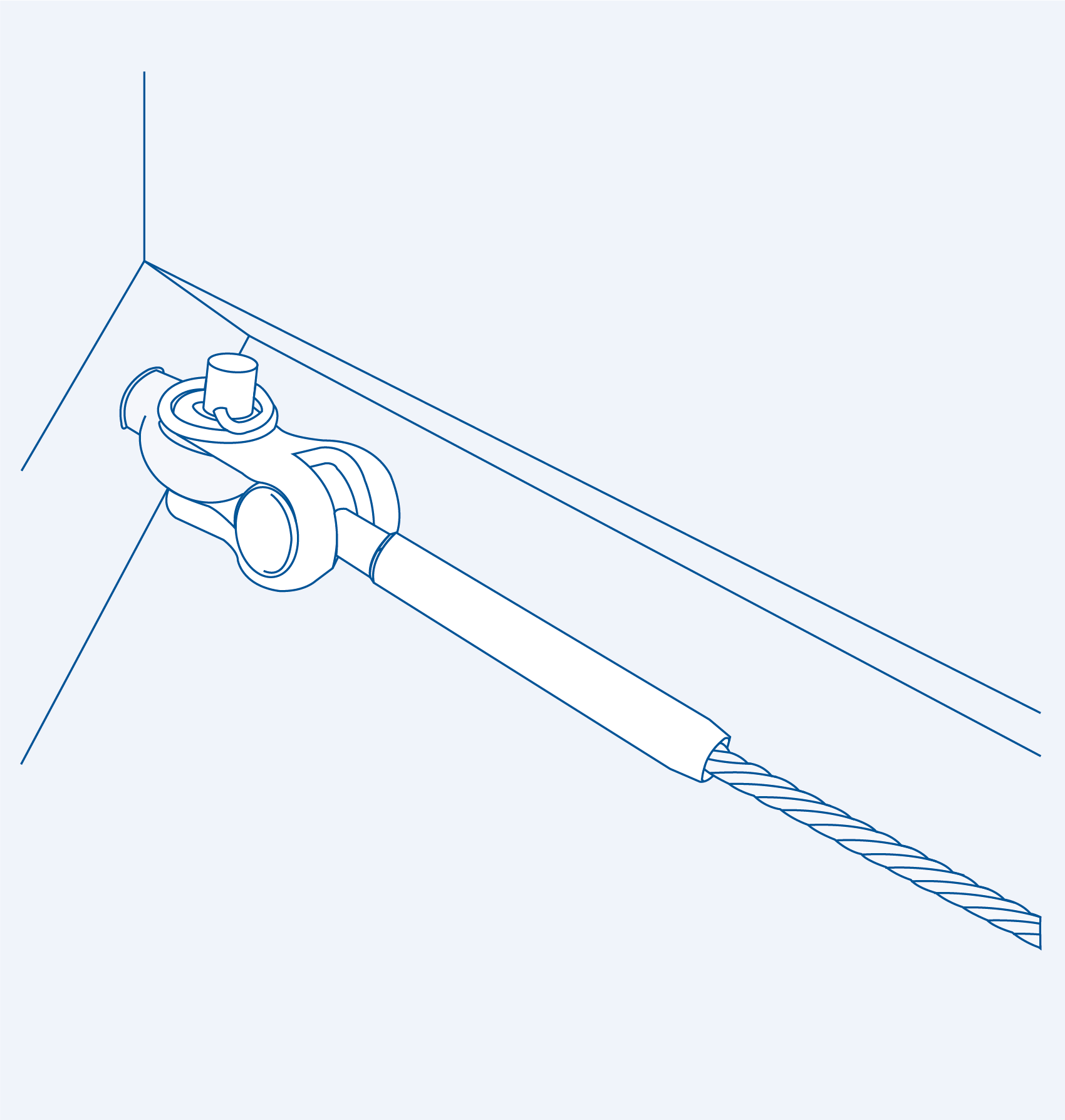

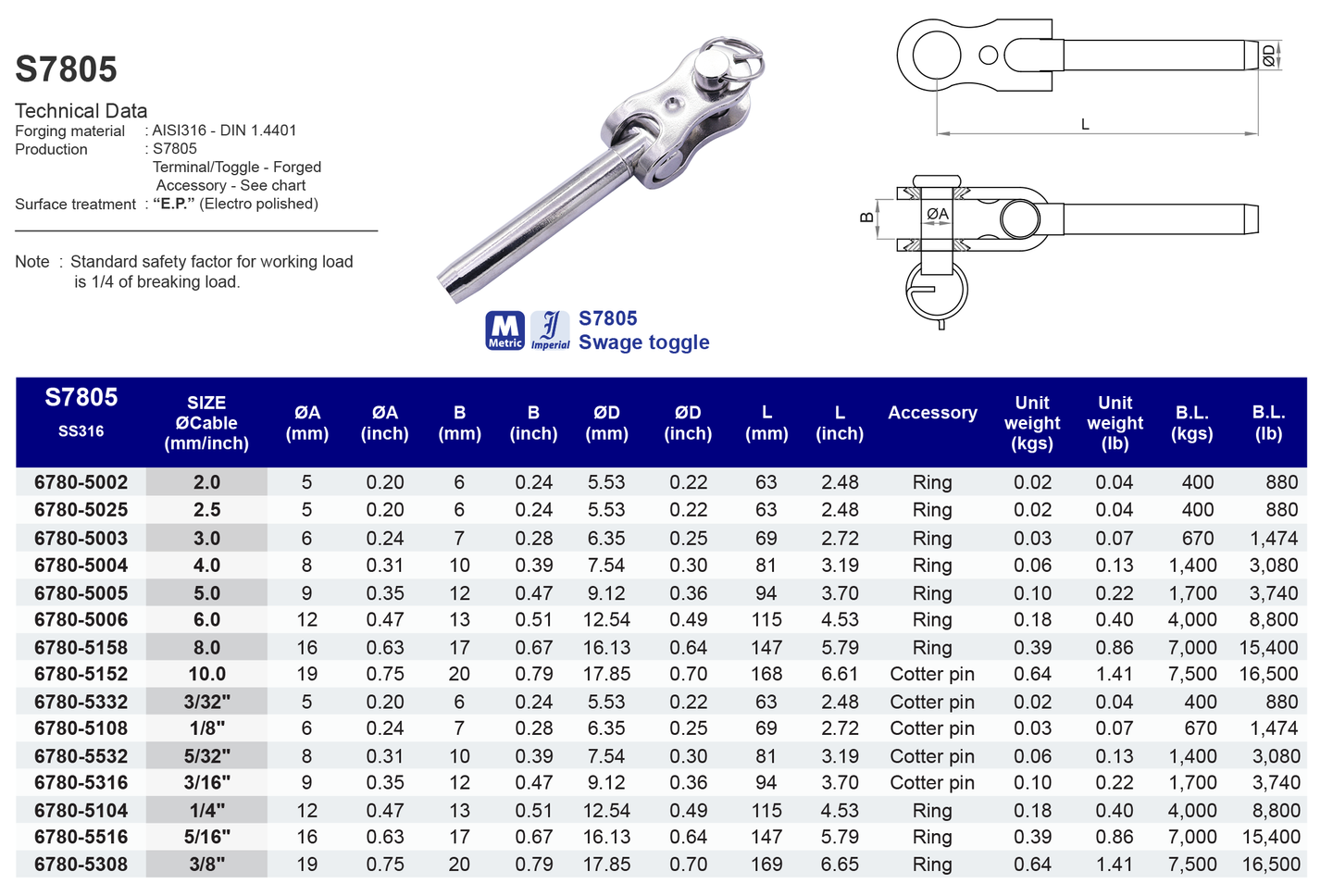

Technical Data:
Forging material : AISI316 - DIN 1.4401
Production : SF7805
Terminal - Cast
Toggle - Forged
Accessory - See chart
Surface treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load.
DATA SHEET DOWNLOAD
Model
S7805

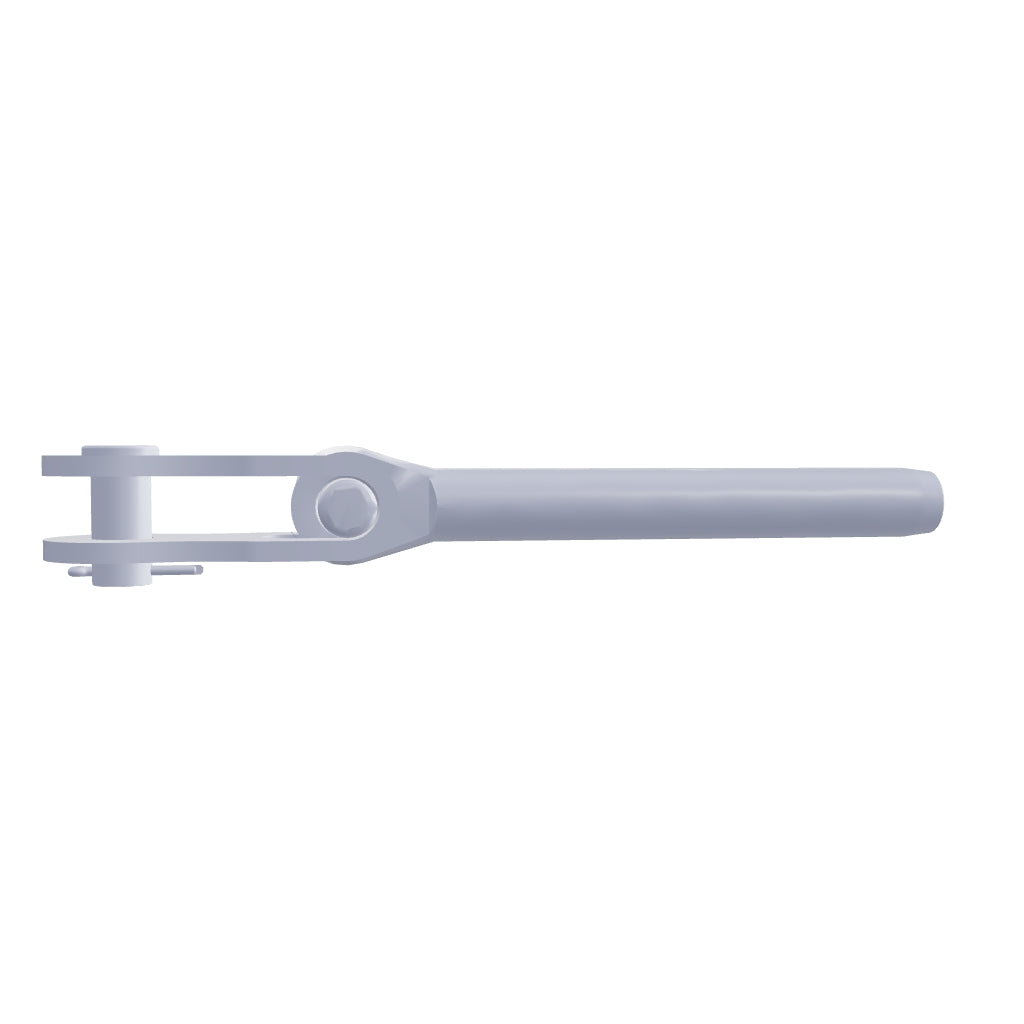

Swage toggle
316 ss
| SS316 | Size ØCable (mm) | ØA (mm) | B (mm) | ØD (mm) | L (mm) | Accessory | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 67805002 | 2 | 5 | 6 | 5.53 | 63 | Ring | 0.02 | 400 |
| 67805025 | 2.5 | 5 | 6 | 5.53 | 63 | Ring | 0.02 | 400 |
| 67805003 | 3 | 6 | 7 | 6.35 | 69 | Ring | 0.03 | 670 |
| 67805004 | 4 | 8 | 10 | 7.54 | 81 | Ring | 0.06 | 1,400 |
| 67805005 | 5 | 9 | 12 | 9.12 | 94 | Ring | 0.10 | 1,700 |
| 67805006 | 6 | 12 | 13 | 12.54 | 115 | Ring | 0.18 | 4,000 |
| 67805158 | 8 | 16 | 17 | 16.13 | 147 | Ring | 0.39 | 7,000 |
| 67805152 | 10 | 19 | 20 | 17.85 | 168 | Cotter pin | 0.64 | 7,500 |
| SS316 | Size ØCable (inch) | ØA (inch) | B (inch) | ØD (inch) | L (inch) | Accessory | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 67805332 | 3/32" | 0.20 | 0.24 | 0.22 | 2.48 | Cotter pin | 0.04 | 880 |
| 67805108 | 1/8" | 0.24 | 0.28 | 0.25 | 2.72 | Cotter pin | 0.07 | 1,474 |
| 67805532 | 5/32" | 0.31 | 0.39 | 0.30 | 3.19 | Cotter pin | 0.13 | 3,080 |
| 67805316 | 3/16" | 0.35 | 0.47 | 0.36 | 3.70 | Cotter pin | 0.22 | 3,740 |
| 67805104 | 1/4" | 0.47 | 0.51 | 0.49 | 4.53 | Ring | 0.40 | 8,800 |
| 67805516 | 5/16" | 0.63 | 0.67 | 0.64 | 5.79 | Ring | 0.86 | 15,400 |
| 67805308 | 3/8" | 0.75 | 0.79 | 0.70 | 6.65 | Ring | 1.41 | 16,500 |
