Description
Technical Data:
Casting material : AISI316 - DIN 1.4401l
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load.

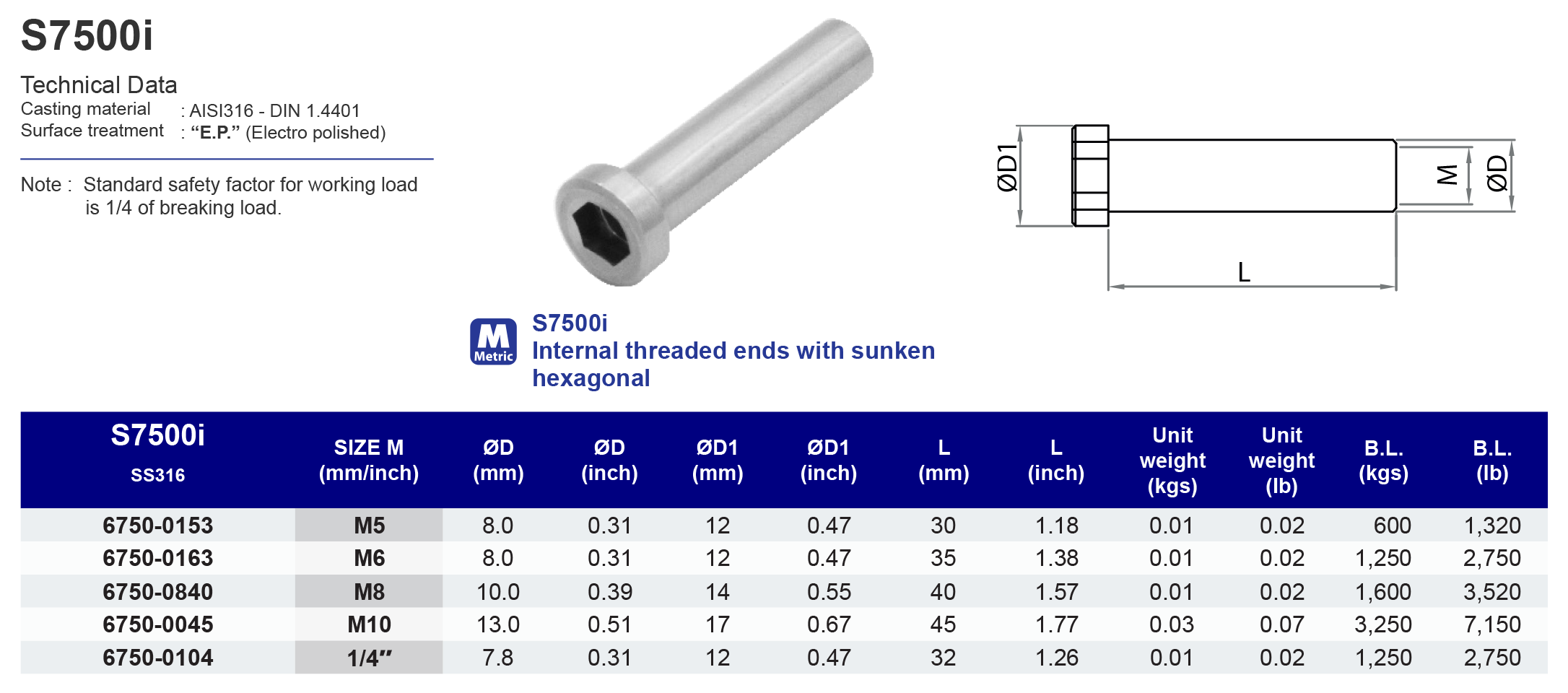

Model
S7500I

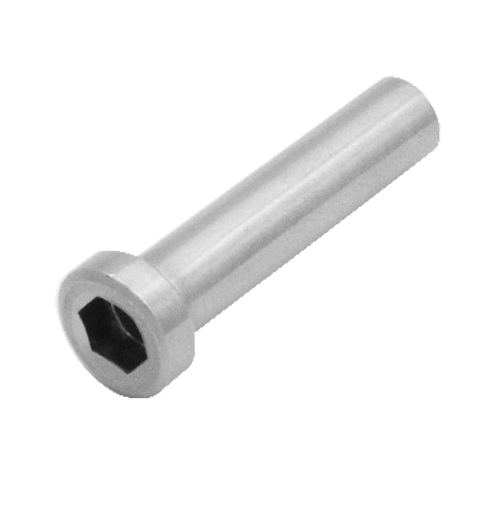

Internal threaded ends with sunken hexagonal
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)
![S7500I S7500Idrawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S7500I.png)
![S7500I image S7500I image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S7500I_ImageV1.png)
SS316 | SIZE M (mm) | ØD (mm) | ØD1 (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|
67500153 | M5 | 8 | 12 | 30 | 0.01 | 600 |
67500163 | M6 | 8 | 12 | 35 | 0.01 | 1,250 |
67500840 | M8 | 10 | 14 | 40 | 0.01 | 1,600 |
67500045 | M10 | 13 | 17 | 45 | 0.03 | 3,250 |
SS316 | SIZE M (inch) | ØD (inch) | ØD1 (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|
67500104 | 1/4" | 0.31 | 0.47 | 1.26 | 0.02 | 2,750 |
