Description

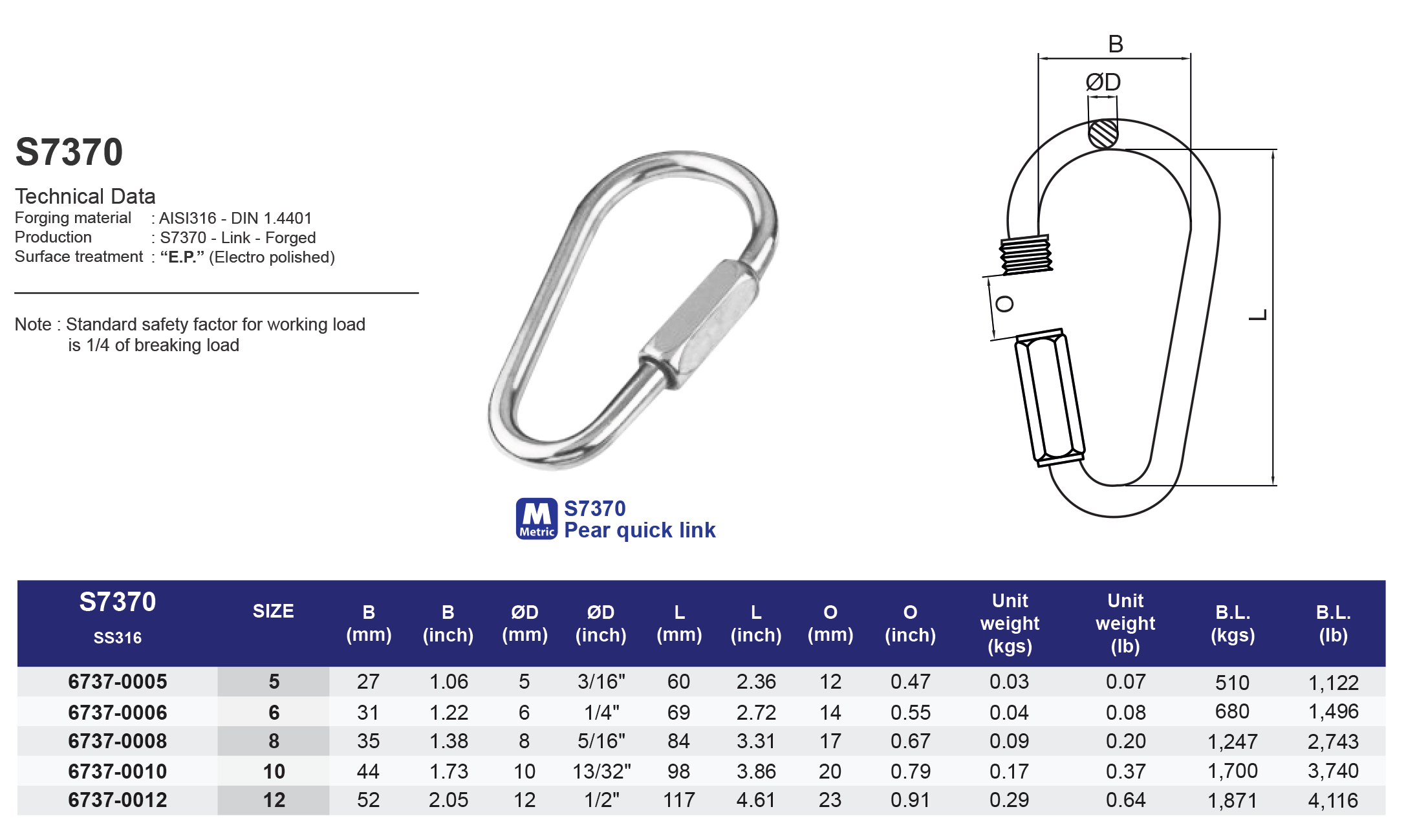

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: S7370 - Link - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S7370

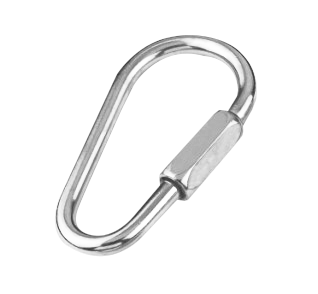

Pear quick link
316 ss
| SS316 | Size | B (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 67370005 | 5 | 27 | 5 | 60 | 12 | 0.03 | 510 |
| 67370006 | 6 | 31 | 6 | 69 | 14 | 0.04 | 680 |
| 67370008 | 8 | 35 | 8 | 84 | 17 | 0.09 | 1,247 |
| 67370010 | 10 | 44 | 10 | 98 | 20 | 0.17 | 1,700 |
| 67370012 | 12 | 52 | 12 | 117 | 23 | 0.29 | 1,871 |
| SS316 | Size | B (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 67370005 | 3/16" | 1.06 | 3/16" | 2.36 | 0.47 | 0.07 | 1,122 |
| 67370006 | 1/4" | 1.22 | 1/4" | 2.72 | 0.55 | 0.08 | 1,496 |
| 67370008 | 5/16" | 1.38 | 5/16" | 3.31 | 0.67 | 0.20 | 2,743 |
| 67370010 | 13/32" | 1.73 | 13/32" | 3.86 | 0.79 | 0.37 | 3,740 |
| 67370012 | 1/2" | 2.05 | 1/2" | 4.61 | 0.91 | 0.64 | 4,116 |
