Description

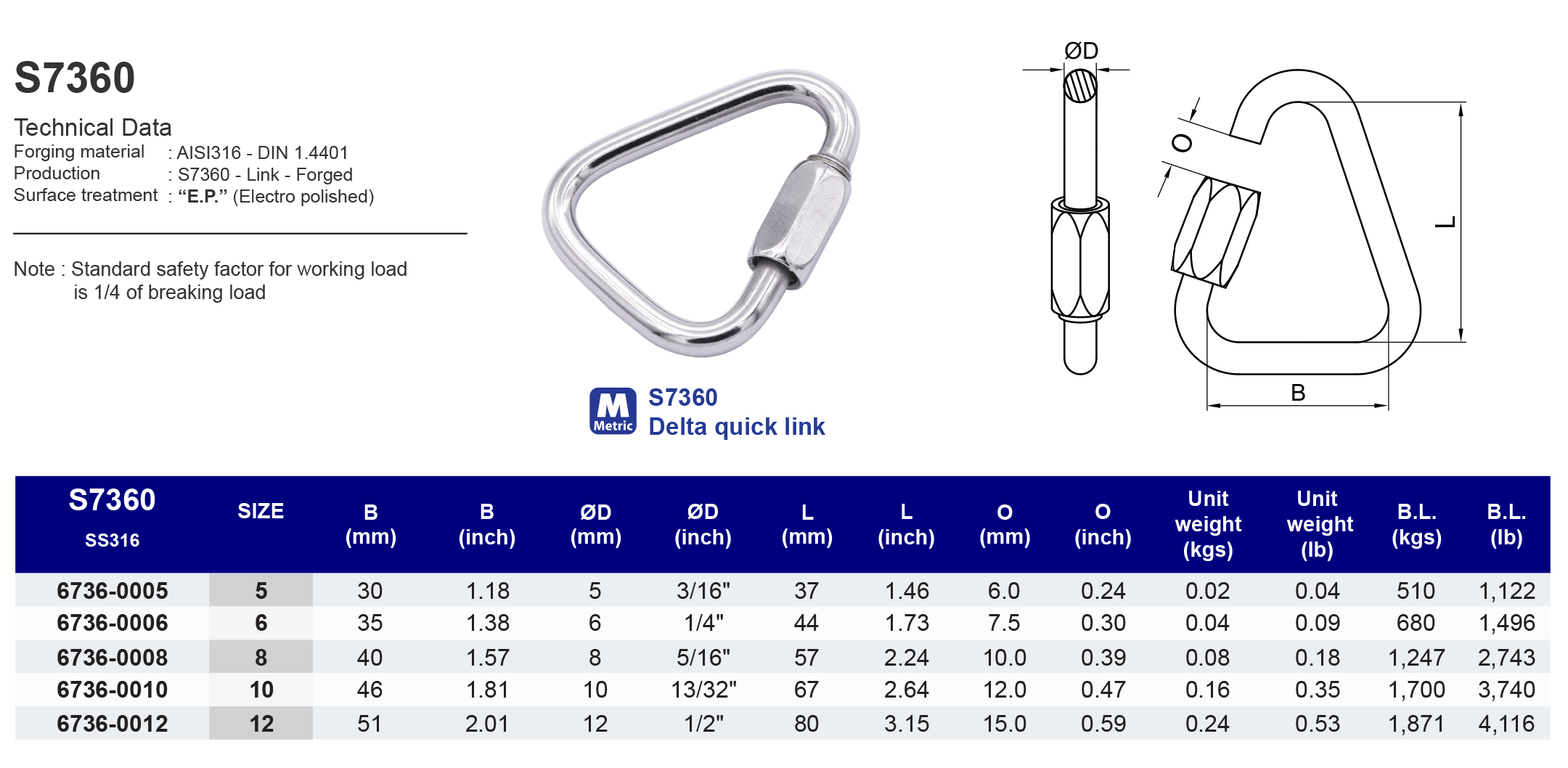

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: S7360 - Link - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S7360

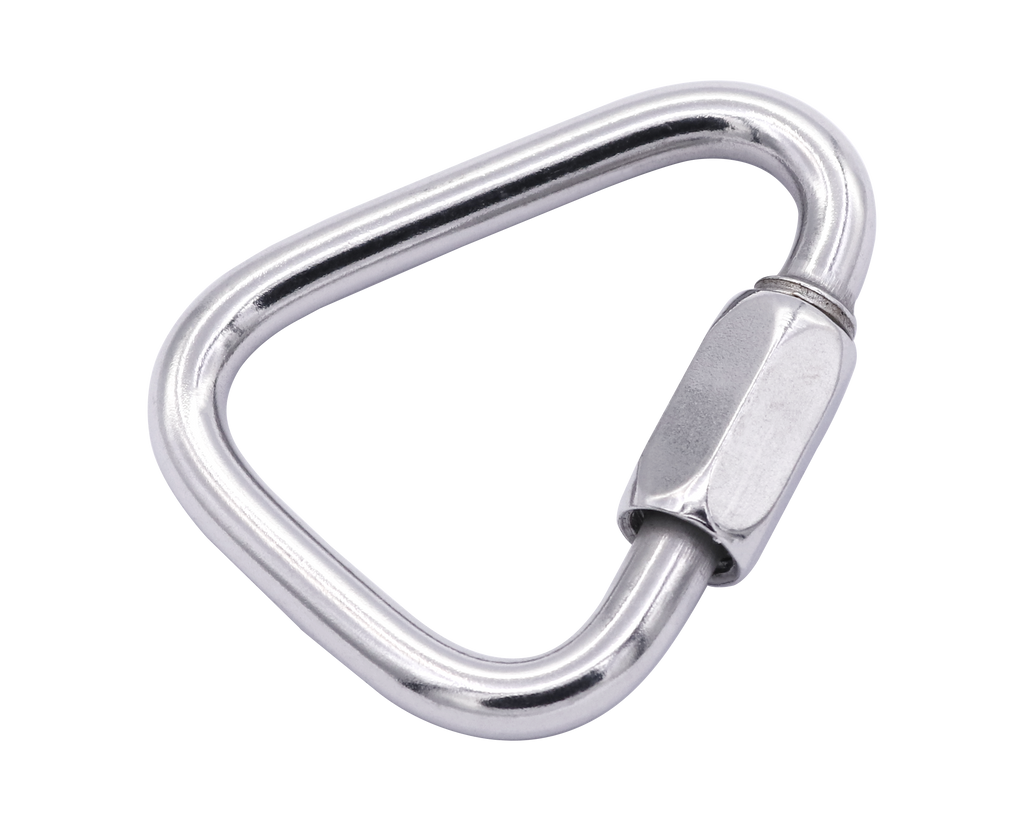

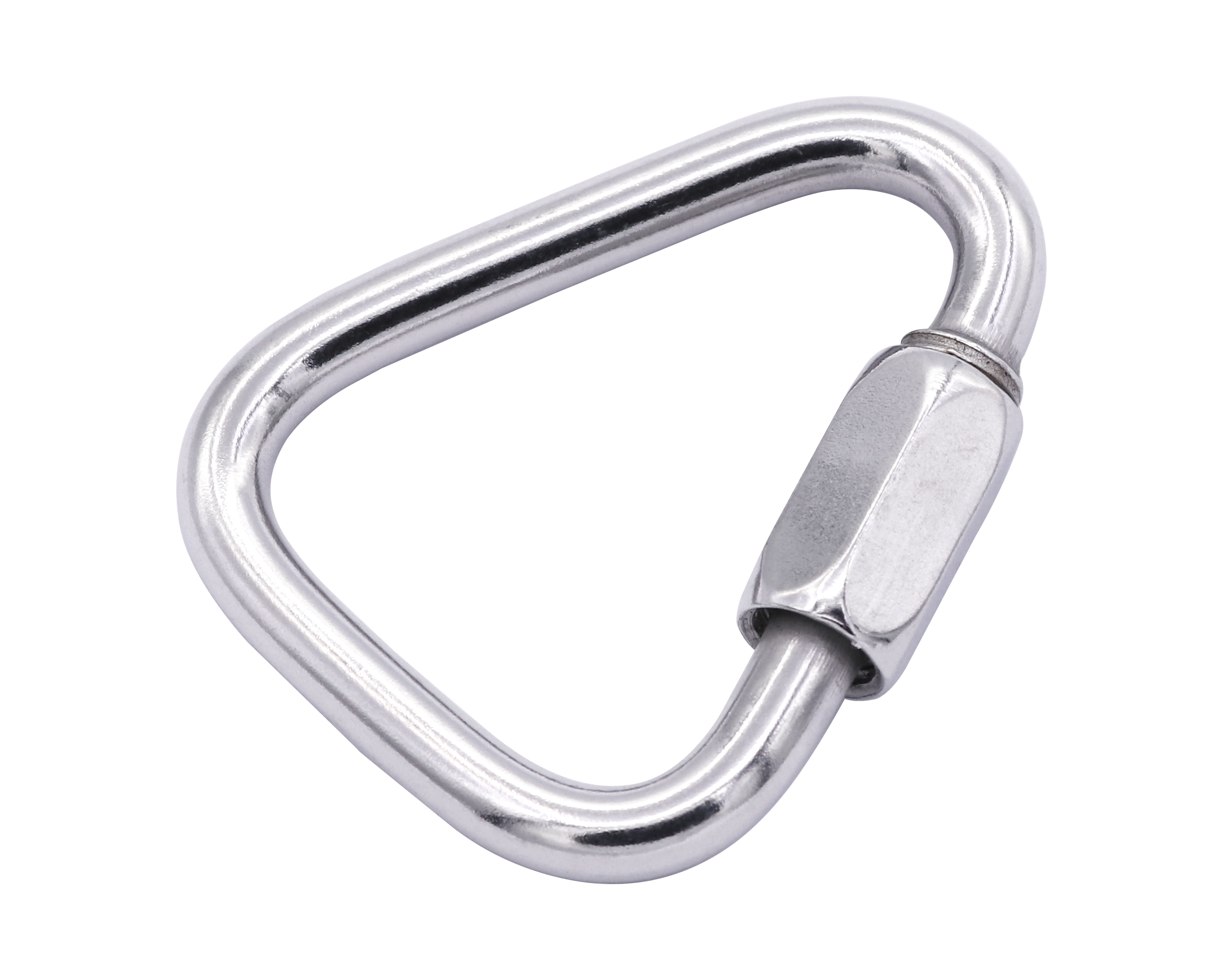

Delta quick link
316 ss
| SS316 | Size | B (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 67360005 | 5 | 30 | 5 | 37 | 6.0 | 0.02 | 510 |
| 67360006 | 6 | 35 | 6 | 44 | 7.5 | 0.04 | 680 |
| 67360008 | 8 | 40 | 8 | 57 | 10.0 | 0.08 | 1,247 |
| 67360010 | 10 | 46 | 10 | 67 | 12.0 | 0.16 | 1,700 |
| 67360012 | 12 | 51 | 12 | 80 | 15.0 | 0.24 | 1,871 |
| SS316 | Size | B (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 67360005 | 3/16" | 1.18 | 3/16" | 1.46 | 0.24 | 0.04 | 1,122 |
| 67360006 | 1/4" | 1.38 | 1/4" | 1.73 | 0.30 | 0.09 | 1,496 |
| 67360008 | 5/16" | 1.57 | 5/16" | 2.24 | 0.39 | 0.18 | 2,743 |
| 67360010 | 13/32" | 1.81 | 13/32" | 2.64 | 0.47 | 0.35 | 3,740 |
| 67360012 | 1/2" | 2.01 | 1/2" | 3.15 | 0.59 | 0.53 | 4,116 |
