Description
Technical Data:
Forging material : AISI316 - DIN 1.4401
Production : S7352 - Link - Forged
Surface treatment : “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

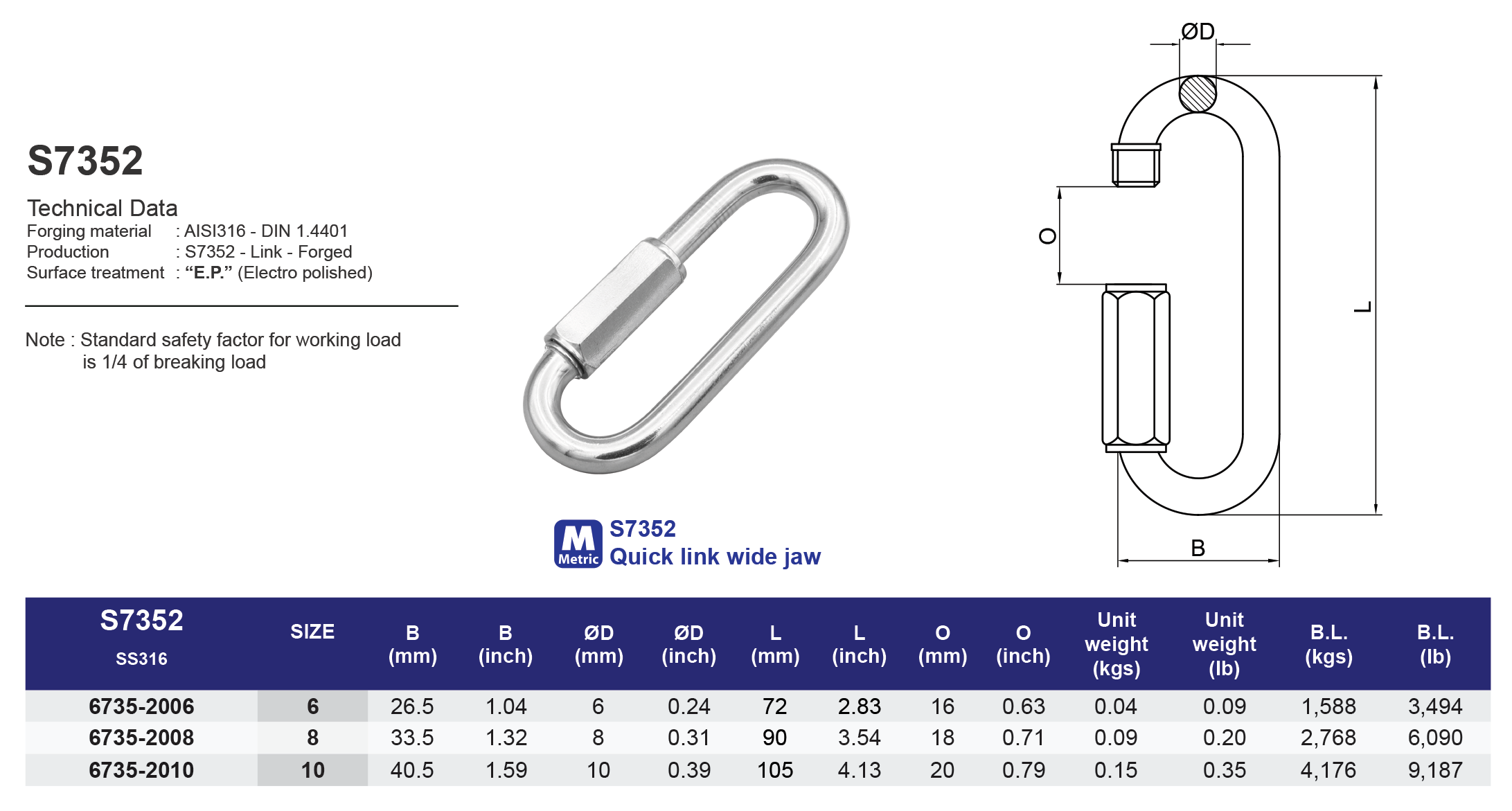

Model
S7352

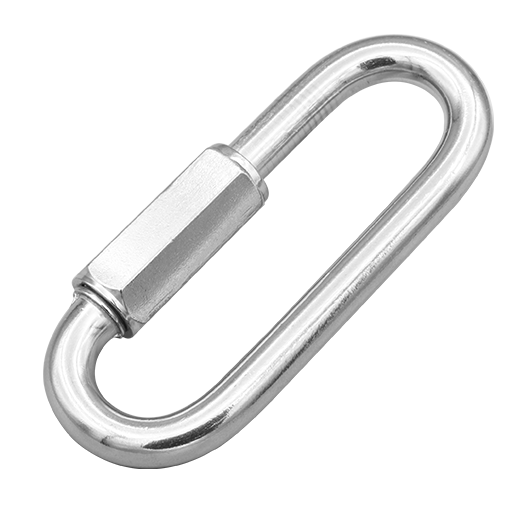

Quick link wide jaw
316 ss
| SS316 | Size | ØB (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 67352006 | 6 | 26.5 | 6 | 72 | 16 | 0.04 | 2,900 |
| 67352008 | 8 | 33.5 | 8 | 90 | 18 | 0.09 | 4,900 |
| 67352010 | 10 | 40.5 | 10 | 105 | 20 | 0.15 | 8,000 |
| SS316 | Size | ØB (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 67352006 | 1/4" | 1.04 | 0.24 | 2.83 | 0.63 | 0.09 | 6,380 |
| 67352008 | 5/16" | 1.32 | 0.31 | 3.54 | 0.71 | 0.20 | 10,780 |
| 67352010 | 3/8" | 1.59 | 0.39 | 4.13 | 0.79 | 0.35 | 17,600 |
