Description
Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: S7350 - Link - Forged Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

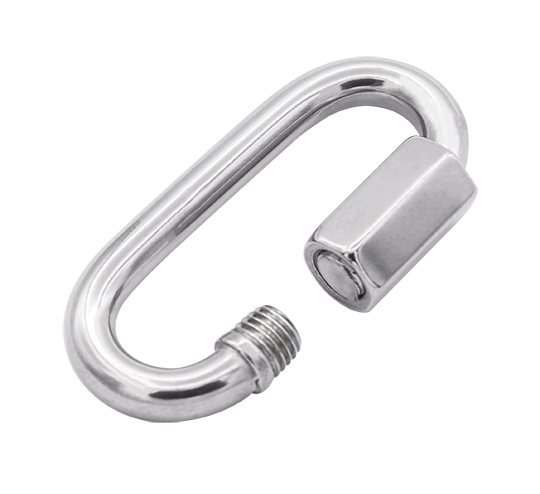

Model
S7350
Quick link
316 ss

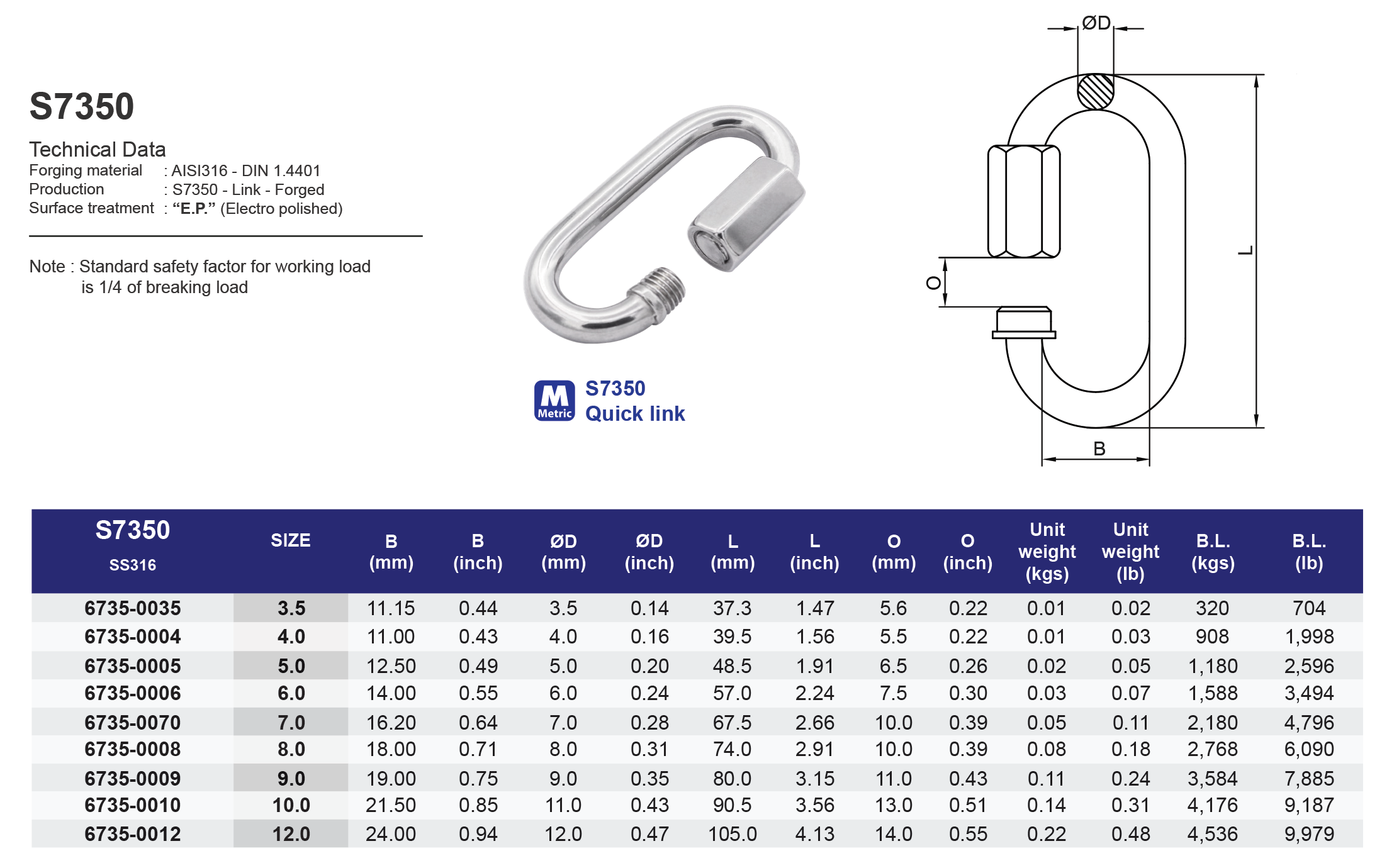

| SS316 | Size | B (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 67350035 | 3.5 | 11.15 | 3.5 | 37.3 | 5.6 | 0.01 | 320 |
| 67350004 | 4 | 11.00 | 4 | 39.5 | 5.5 | 0.01 | 908 |
| 67350005 | 5 | 12.50 | 5 | 48.5 | 6.5 | 0.02 | 1,180 |
| 67350006 | 6 | 14.00 | 6 | 57.0 | 7.5 | 0.03 | 1,588 |
| 67350070 | 7 | 16.20 | 7 | 67.5 | 10 | 0.05 | 2,180 |
| 67350008 | 8 | 18.00 | 8 | 74.0 | 10 | 0.08 | 2,768 |
| 67350009 | 9 | 19.00 | 9 | 80.0 | 11 | 0.11 | 3,584 |
| 67350010 | 10 | 21.50 | 11 | 90.5 | 13 | 0.14 | 4,176 |
| 67350012 | 12 | 24.00 | 12 | 105.0 | 14 | 0.22 | 4,536 |
| SS316 | Size | B (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 67350035 | 1/8" | 0.44 | 0.14 | 1.47 | 0.22 | 0.02 | 704 |
| 67350004 | 5/32" | 0.43 | 0.16 | 1.56 | 0.22 | 0.03 | 1,998 |
| 67350005 | 3/16" | 0.49 | 0.20 | 1.91 | 0.26 | 0.05 | 2,596 |
| 67350006 | 1/4" | 0.55 | 0.24 | 2.24 | 0.30 | 0.07 | 3,494 |
| 67350070 | 9/32" | 0.64 | 0.28 | 2.66 | 0.39 | 0.11 | 4,796 |
| 67350008 | 5/16" | 0.71 | 0.31 | 2.91 | 0.39 | 0.18 | 6,090 |
| 67350009 | 11/32" | 0.75 | 0.35 | 3.15 | 0.43 | 0.24 | 7,885 |
| 67350010 | 3/8" | 0.85 | 0.43 | 3.56 | 0.51 | 0.31 | 9,187 |
| 67350012 | 1/2" | 0.94 | 0.47 | 4.13 | 0.55 | 0.48 | 9,979 |
