Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S582 - Nut - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

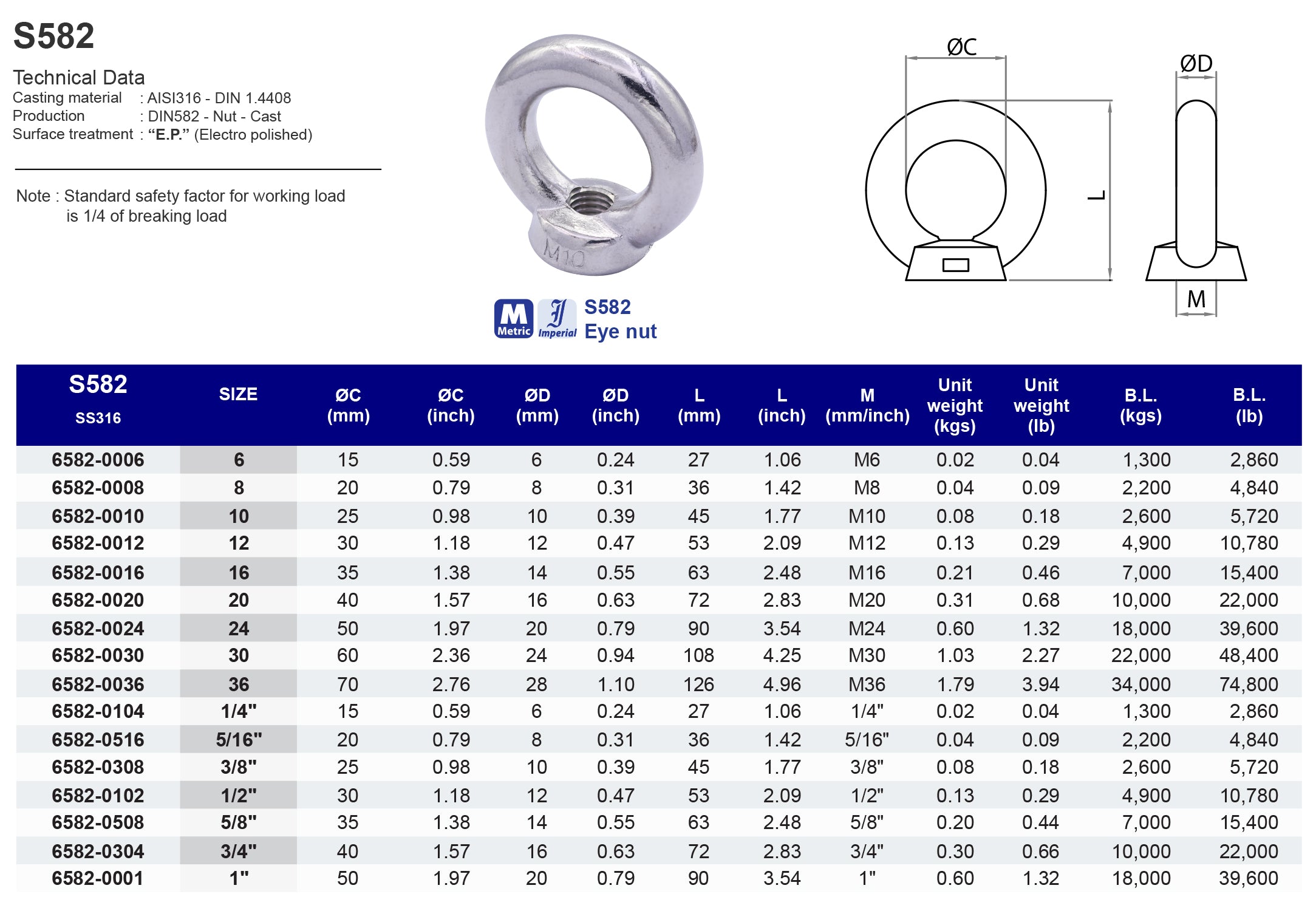

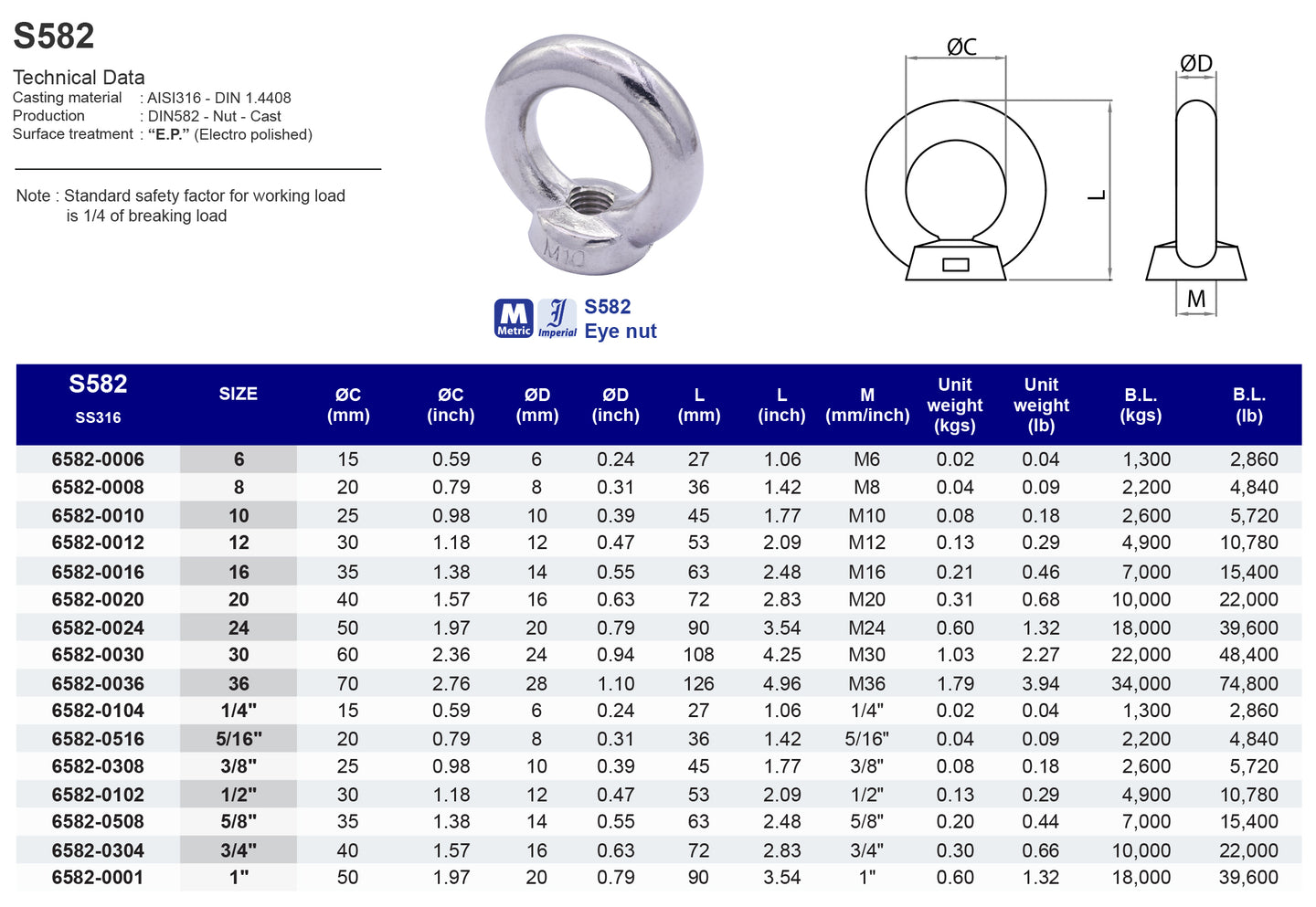

Model
S582

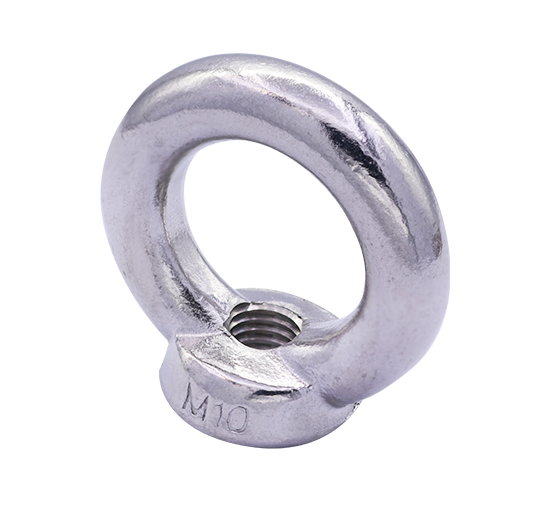

Eye Nut
316 ss
| SS316 | Size | ØC (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 65820006 | 6 | 15 | 6 | 27 | M6 | 0.02 | 1,300 |
| 65820008 | 8 | 20 | 8 | 36 | M8 | 0.04 | 2,200 |
| 65820010 | 10 | 25 | 10 | 45 | M10 | 0.08 | 2,600 |
| 65820012 | 12 | 30 | 12 | 53 | M12 | 0.13 | 4,900 |
| 65820016 | 16 | 35 | 14 | 62 | M16 | 0.21 | 7,000 |
| 65820020 | 20 | 40 | 16 | 71 | M20 | 0.31 | 10,000 |
| 65820024 | 24 | 50 | 20 | 90 | M24 | 0.60 | 18,000 |
| 65820030 | 30 | 60 | 24 | 109 | M30 | 1.03 | 22,000 |
| 65820036 | 36 | 70 | 28 | 126 | M36 | 1.79 | 34,000 |
| SS316 | Size | ØC (inch) | ØD (inch) | L (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 65820104 | 1/4"UNC | 0.59 | 0.24 | 1.06 | 1/4" | 0.04 | 2,860 |
| 65820516 | 5/16"UNC | 0.79 | 0.31 | 1.42 | 5/16" | 0.09 | 4,840 |
| 65820308 | 3/8"UNC | 0.98 | 0.39 | 1.77 | 3/8" | 0.18 | 5,720 |
| 65820102 | 1/2"UNC | 1.18 | 0.47 | 2.09 | 1/2" | 0.29 | 10,780 |
| 65820508 | 5/8"UNC | 1.38 | 0.55 | 2.48 | 5/8" | 0.44 | 15,400 |
| 65820304 | 3/4"UNC | 1.57 | 0.63 | 2.83 | 3/4" | 0.66 | 22,000 |
| 65820001 | 1"UNC | 1.97 | 0.79 | 3.54 | 1" | 1.32 | 39,600 |
