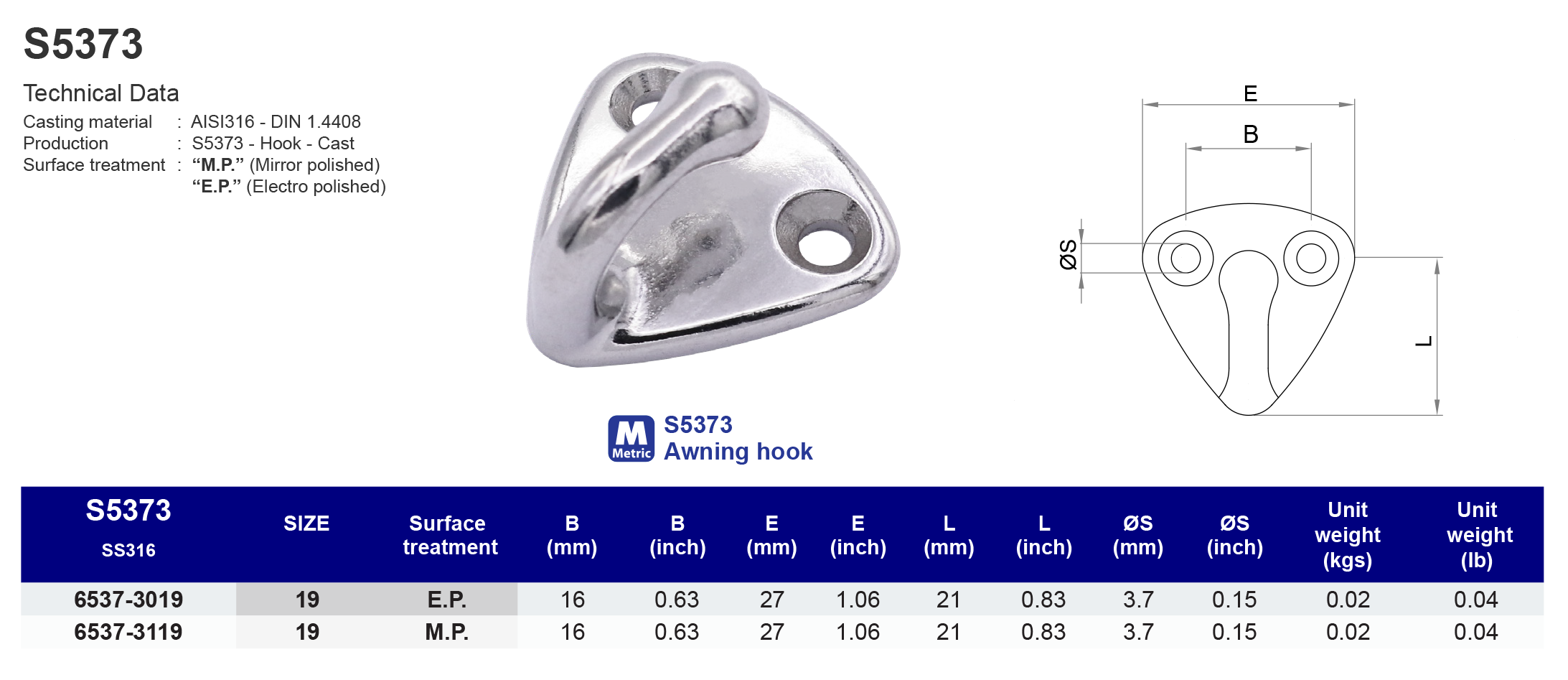

Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production:
S5373 - Hook - Cast
Surface Treatment:
“M.P.” (Mirror polished)
“E.P.” (Electro polished)
Model
S5373

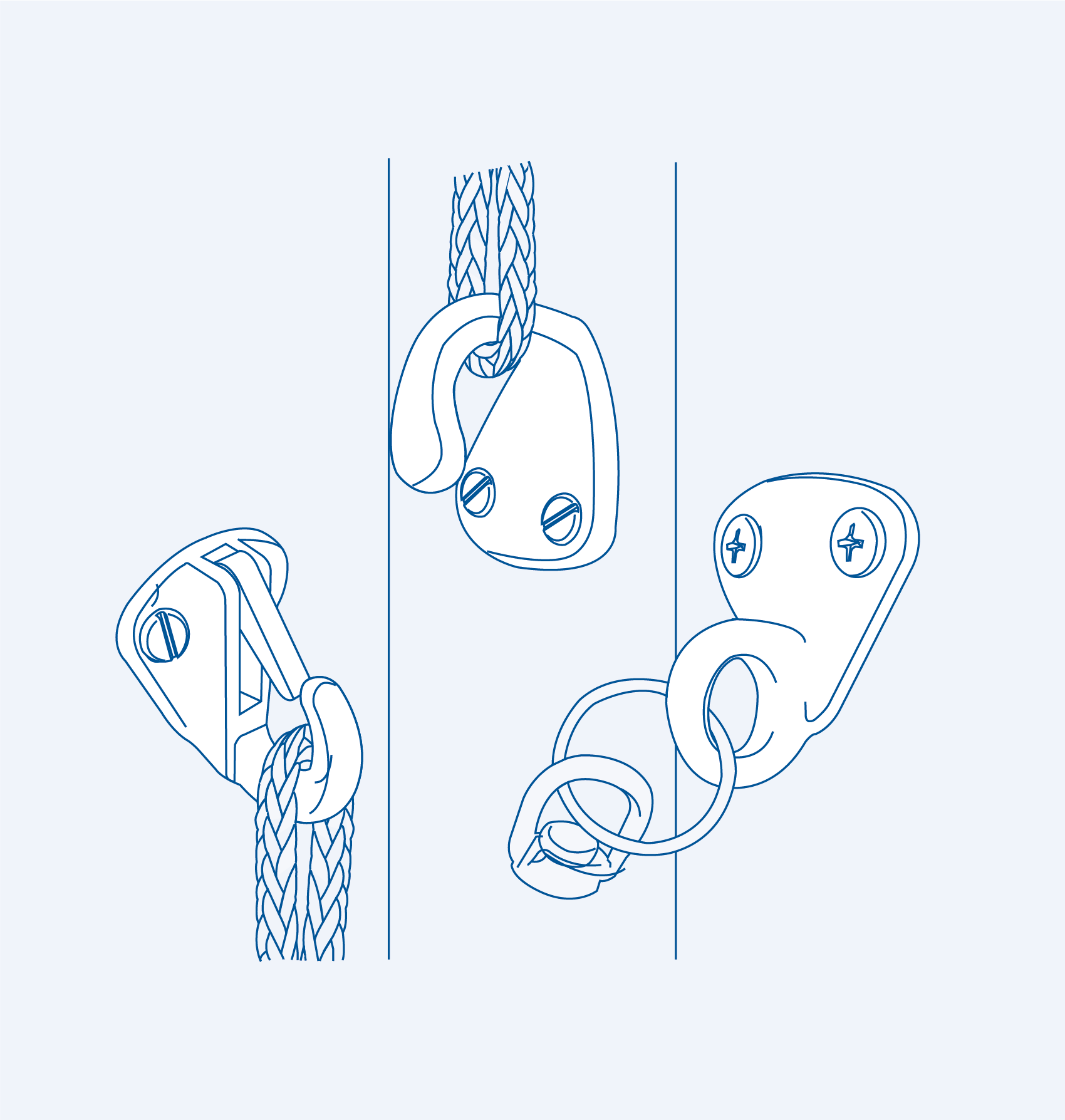

Awning hook
316 ss
| SS316 | SIZE | Surface treatment | B (mm) | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 65373019 | 19 | E.P. | 16 | 27 | 21 | 3.7 | 0.02 |
| 65373119 | 19 | M.P. | 16 | 27 | 21 | 3.7 | 0.02 |
| SS316 | SIZE | Surface treatment | B (inch) | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 65373019 | 1" | E.P. | 0.63 | 1.06 | 0.83 | 0.15 | 0.04 |
| 65373119 | 1" | M.P. | 0.63 | 1.06 | 0.83 | 0.15 | 0.04 |
