Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production:
S5341 - Hook - Cast
Surface Treatment:
“M.P.” (Mirror polished) , “E.P.” (Electro polished) DATA SHEET DOWNLOAD

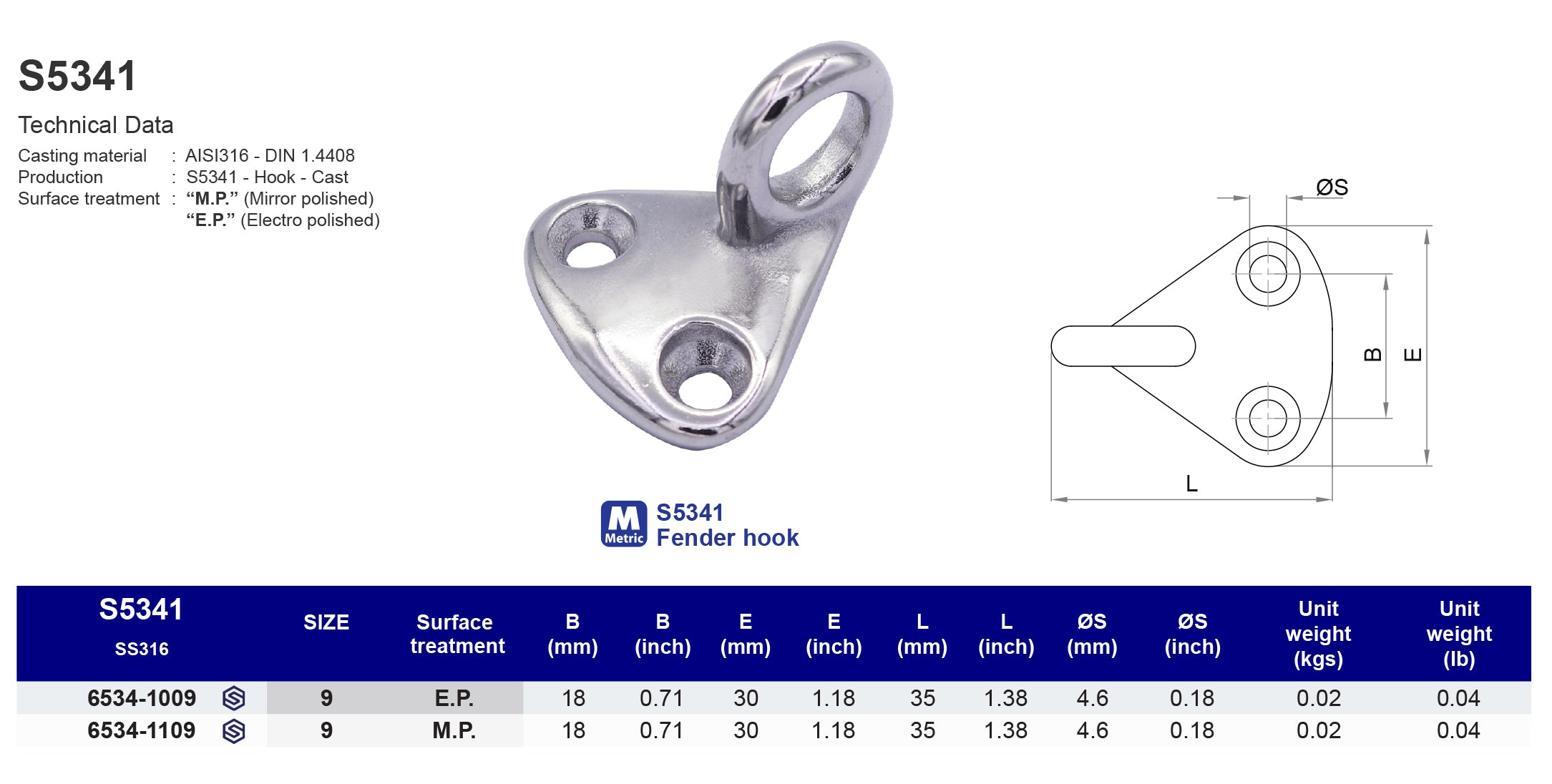

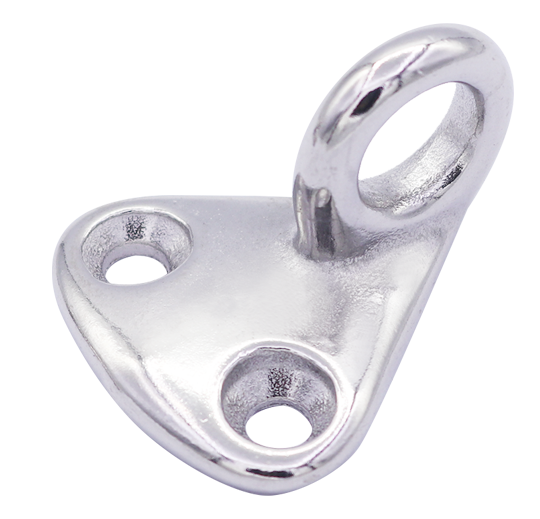

Model
S5341
Fender hook
316 ss
| SS316 | SIZE | Surface treatment | B (mm) | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 65341009 | 9 | E.P. | 18 | 30 | 35 | 4.6 | 0.02 |
| 65341109 | 9 | M.P. | 18 | 30 | 35 | 4.6 | 0.02 |
| SS316 | SIZE | Surface treatment | B (inch) | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 65341009 | 3/8" | E.P. | 0.71 | 1.18 | 1.38 | 0.18 | 0.04 |
| 65341109 | 3/8" | M.P. | 0.71 | 1.18 | 1.38 | 0.18 | 0.04 |
