Description

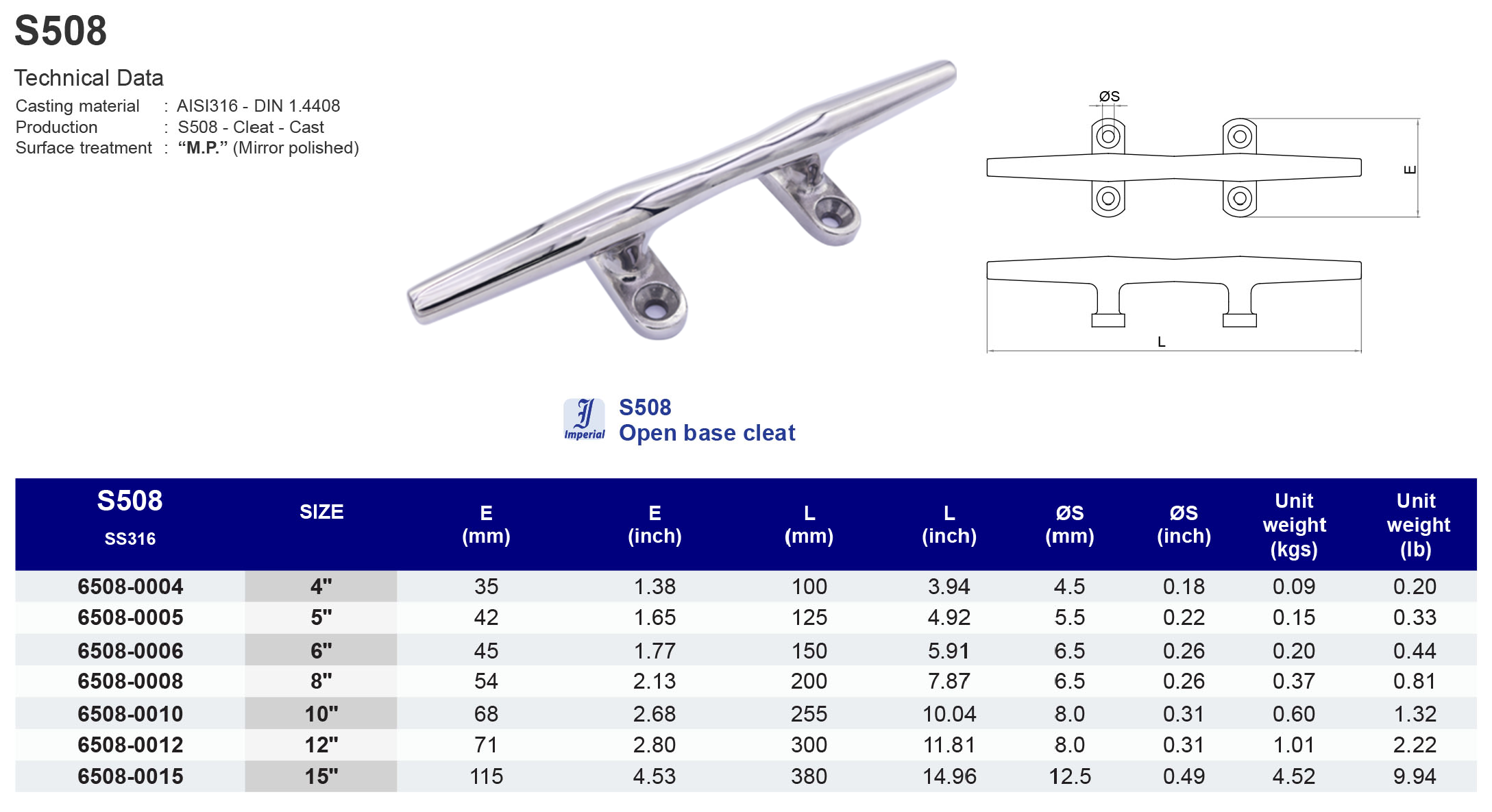

Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production:
S508 - Cleat - Cast
Surface Treatment:
“M.P.” (Mirror polished)
Model
S508

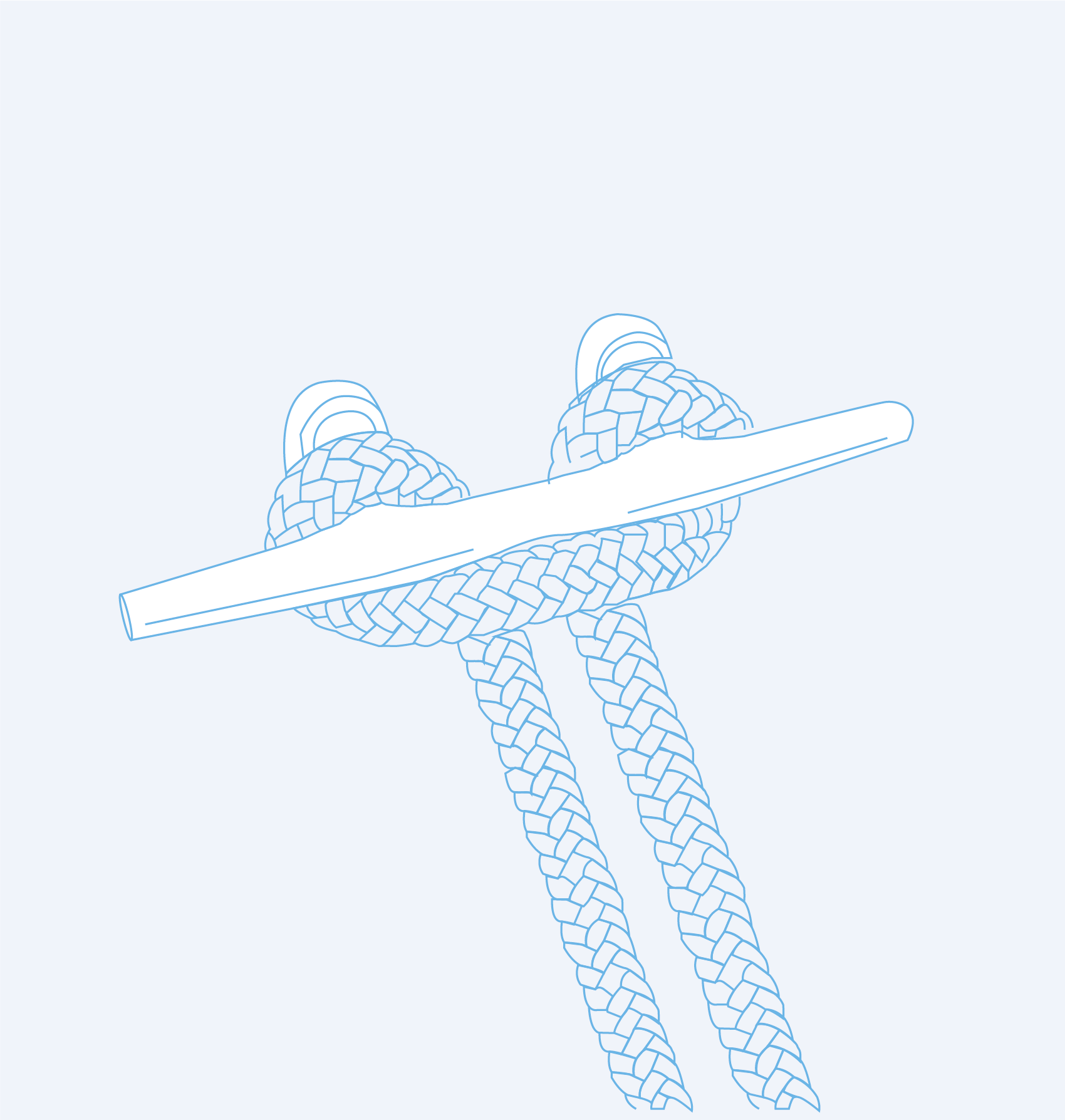

Open base cleat
316 ss
| SS316 | SIZE | ØE (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 65080004 | 4" | 35 | 100 | 4.5 | 0.09 |
| 65080005 | 5" | 42 | 125 | 5.5 | 0.15 |
| 65080006 | 6" | 45 | 150 | 6.5 | 0.20 |
| 65080008 | 8" | 54 | 200 | 6.5 | 0.37 |
| 65080010 | 10" | 68 | 255 | 8.0 | 0.60 |
| 65080012 | 12" | 71 | 300 | 8.0 | 1.01 |
| 65080015 | 15" | 115 | 380 | 12.5 | 4.52 |
| SS316 | SIZE | ØE (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 65080004 | 4" | 1.38 | 3.94 | 0.18 | 0.2 |
| 65080005 | 5" | 1.65 | 4.92 | 0.22 | 0.33 |
| 65080006 | 6" | 1.77 | 5.91 | 0.26 | 0.44 |
| 65080008 | 8" | 2.13 | 7.87 | 0.26 | 0.81 |
| 65080010 | 10" | 2.68 | 10.04 | 0.31 | 1.32 |
| 65080012 | 12" | 2.80 | 11.81 | 0.31 | 2.22 |
| 65080015 | 15" | 4.53 | 14.96 | 0.49 | 9.94 |
