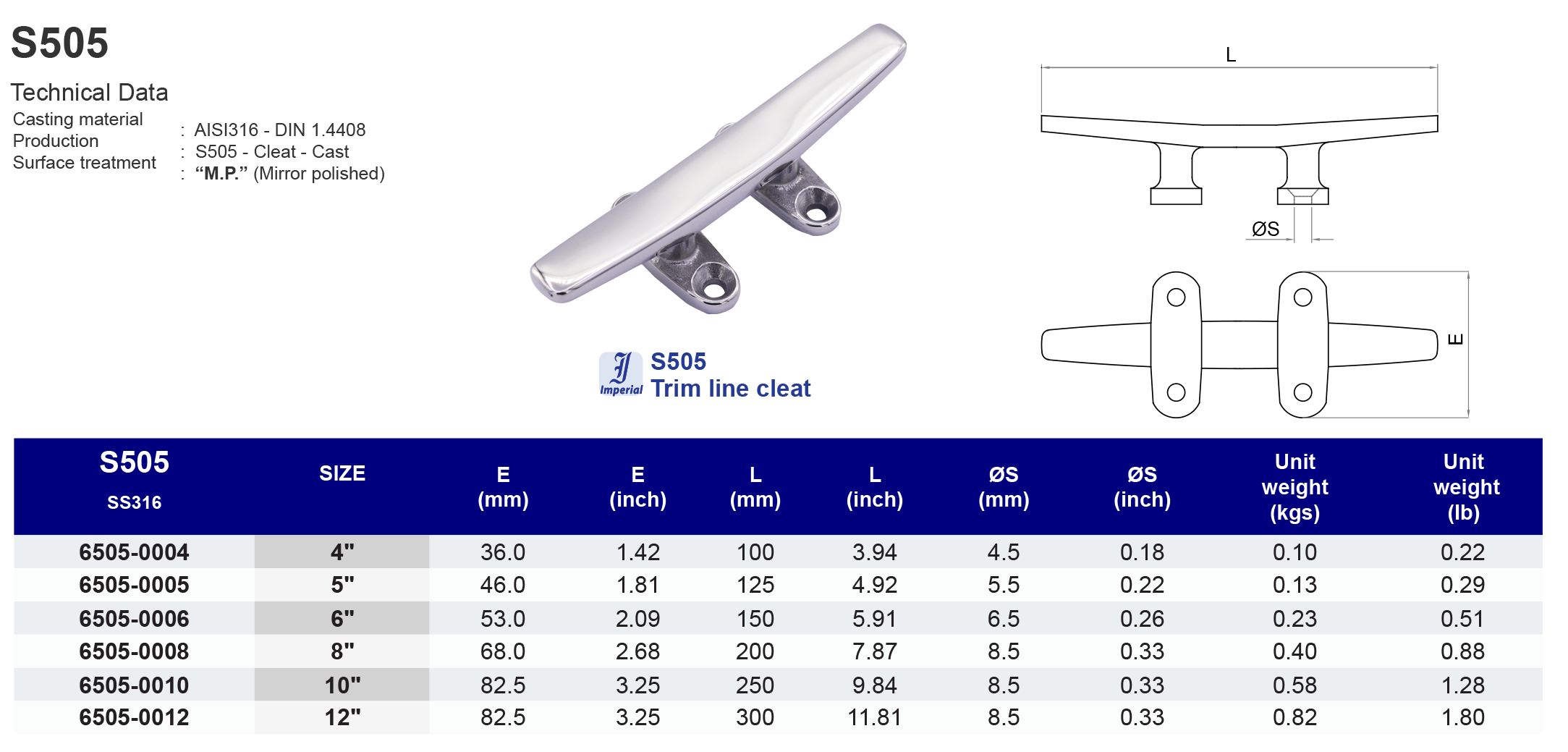

Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S505 - Cleat - Cast
Surface Treatment: “M.P.” (Mirror polished)
Model
S505

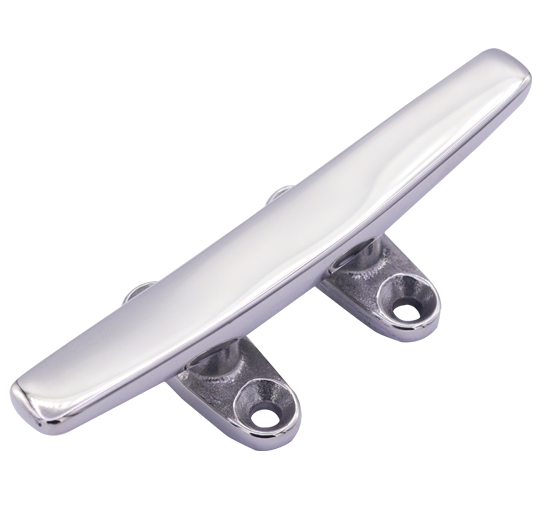

Trim line cleat
316 ss
| SS316 | SIZE | E (mm) | L (mm) | ØS (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 65050004 | 4" | 36.0 | 100 | 4.5 | 0.10 |
| 65050005 | 5" | 46.0 | 125 | 5.5 | 0.13 |
| 65050006 | 6" | 53.0 | 150 | 6.5 | 0.23 |
| 65050008 | 8" | 68.0 | 200 | 8.5 | 0.40 |
| 65050010 | 10" | 82.5 | 250 | 8.5 | 0.58 |
| 65050012 | 12" | 82.5 | 300 | 8.5 | 0.82 |
| SS316 | SIZE | E (inch) | L (inch) | ØS (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 65050004 | 4" | 1.42 | 3.94 | 0.18 | 0.22 |
| 65050005 | 5" | 1.81 | 4.92 | 0.22 | 0.29 |
| 65050006 | 6" | 2.09 | 5.91 | 0.26 | 0.51 |
| 65050008 | 8" | 2.68 | 7.87 | 0.33 | 0.88 |
| 65050010 | 10" | 3.25 | 9.84 | 0.33 | 1.28 |
| 65050012 | 12" | 3.25 | 11.81 | 0.33 | 1.80 |
